ERP-1530B
Eastrise

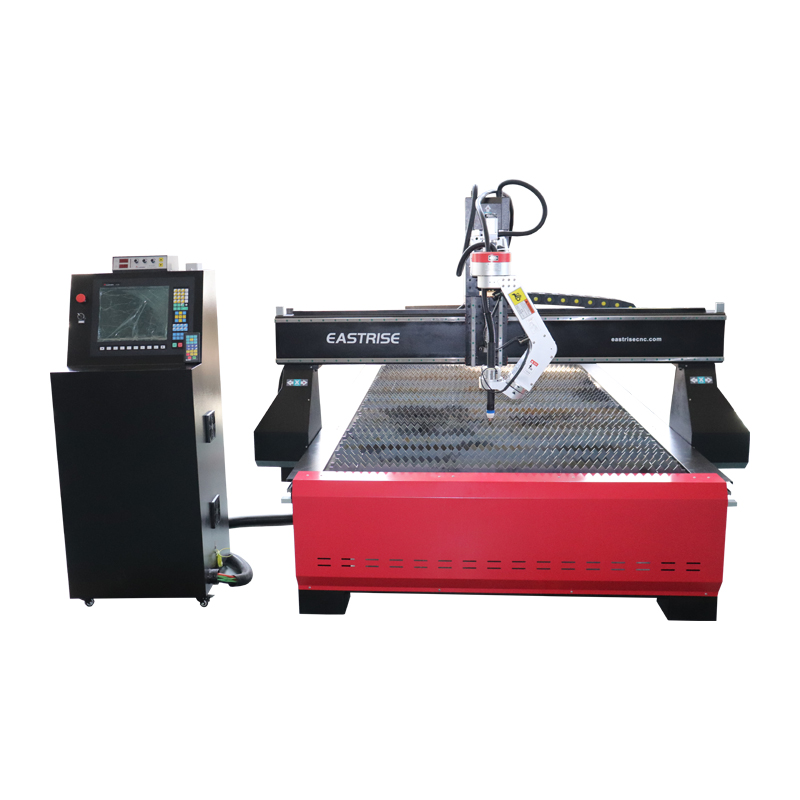

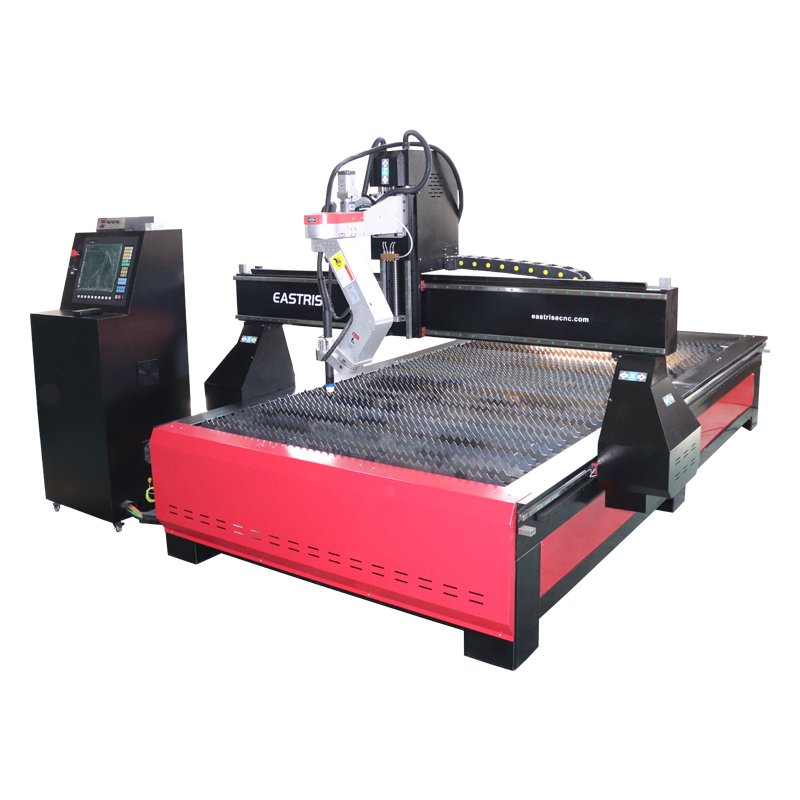

Description of 5 axis Bevel plasma cutting machine
The flat plate infinite rotary plasma bevel cutting machine is a 5-axis linkage compound motion cutting machine, which can form a V-shaped bevel at one time, and complete the bevel processing completed by traditional cutting, milling and other multiple processes at one time. Greatly improved efficiency, guaranteed quality, and saved resources. It can realize the curved notch cutting on the plate, and the bevel angle is ±60°. It will be widely used in shipbuilding industry, steel structure and mechanical equipment manufacturing industry.
Application
Application Material: it is suitable for carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet,stainless steel and other metal sheet.
Application industry: it is widely used for processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.
Technical parameters
| Specifications | Parameters |
| Working Area(X Y) | 1500*3000mm |
| Power source | Hypertherm/Huayuan plasma power supply |
| Cutting Speed | 0-16000 mm/min |
| Plasma Unit Max | 5.5KW |
| Positioning accuracy | ±0.3mm |
| Arc | Untouched arc striking |
| Software support | FASTCAM plasma software |
| Instruction format | G code |
| Working table | Serrate working platform |
| Bevel angle | ±60° |
| Working voltage | 3Phase 380V/60HZ |
