3-Axis Three-Tool Holder CNC Wood Turning Lathe Machine with Horizontal Spindle

5 0 Reviews
CNC wood turning is a form of CNC woodworking that is used to create wooden objects on a lathe. CNC wood turning is different from most other forms of CNC woodworking in that the wood is moving while a stationary tool is used to cut and shape it. Many intricate shapes and designs can be made by CNC wood turning lathe machine. CNC wood turning lathe is a machine tool that rotates the workpiece on its axis to perform various operations such as cutting, sanding, knurling, drilling, or deformation, facing, turning, with tools that are applied to the workpiece to create an object with symmetry about an axis of rotation. CNC wood turning lathe is mainly used for various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase
Availability:
Quantity:
  • ERL-1615-3D

  • Eastrise

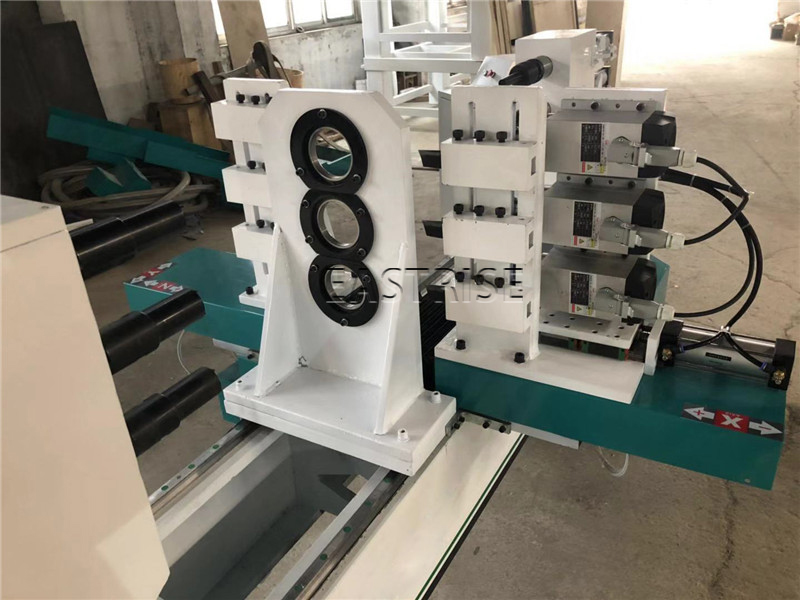

3 holders wood lathe machine (1)

Advantages

Speed: With vite processing speed.

Control: Withmature CNC controller, make the work stable, easy installation and commissioning.

Using international standard CNC language G code. Support a variety of software. Support technologyextensions.

Operation: With high-precision stepper motor drive combined with ball screw  to ensure the accuracy of processing size, and has good environment adaptability with dust prevention.

Body: Casting Iron body with stable tstructure, important linear square rail, small vibration to ensure the accuracy.

3 holders wood lathe machine (3)

Applications

CNC wood lathe ( CNC Lathe for making wooden stairs handrails / stairs column / stair wood balusters/ Chair leg)According the requirement and characteristics of woodworking industry, CNC woodworking lathe combining CNC and other mechanical technology, could process the complex shape of the wood rotary products or semifinished wood products. , such as staircase column,cylindrical, conical, curved, spherical etc. It is especially suitable for the mass production of small or medium-scale wood enterprises, set shape flexibly and changing processing style rapidly.

3 holders wood lathe machine (4)

Technical parameters

LATHE MODEL

ERL-1615-3D

Max Processing Size

Length 1500,diameter 160mm

Spindle Power

5kw

Quantity of Tools

3

Max Feed Speed

35mm/s

Spindle Speed

0-3500rpm

Accuracy

0.001mm

Control System

DSP/GXK

Support Command

G Code

Voltage

380V/50Hz

Machine Dimension

2750x1400x1500mm

Weight

1500kgs

Machining

cnc router (1)

Testing

cnc router (3)

Exhibition

laser machine


Certificate

cnc router (4)
