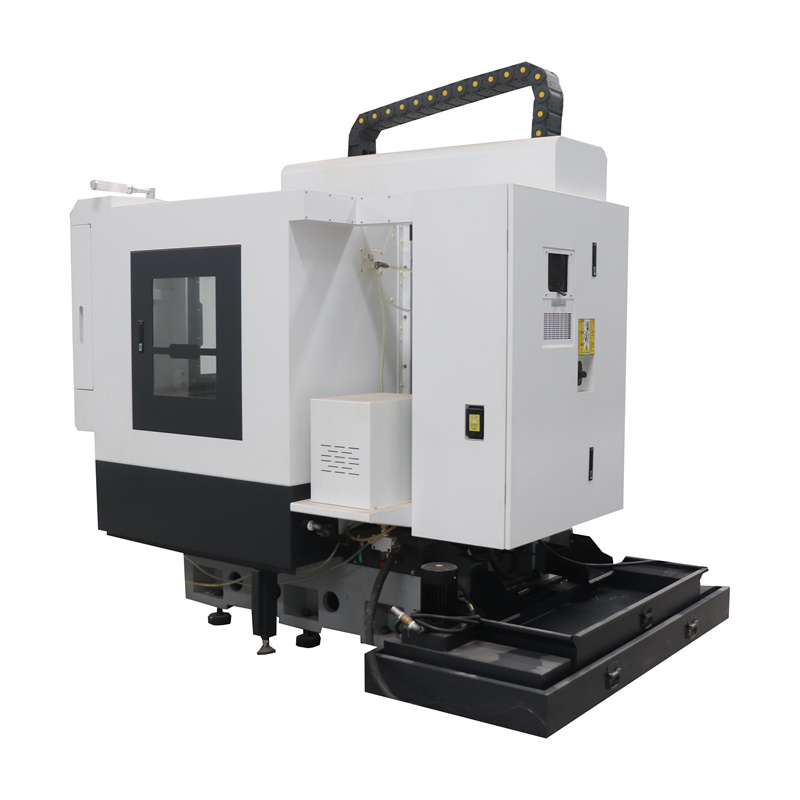

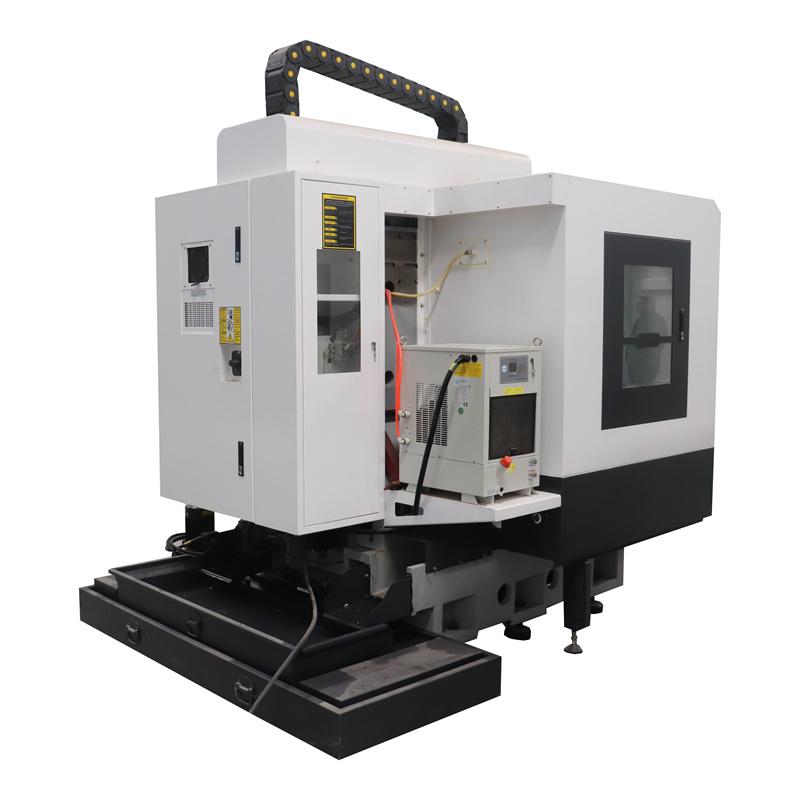

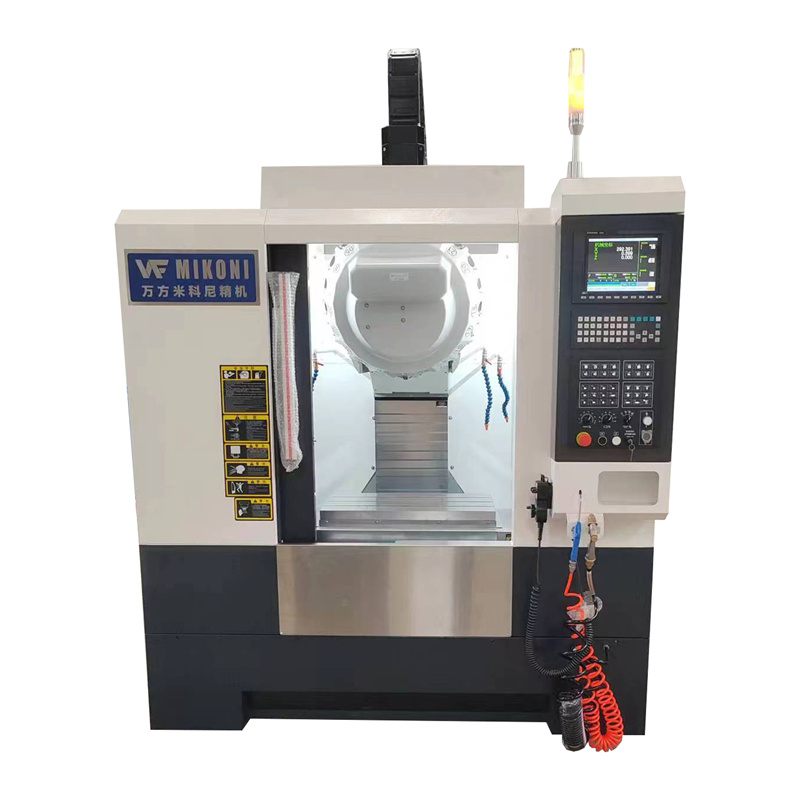

Drilling and tapping machining center

5 0 Reviews
The drilling and tapping center is characterized by versatility and high efficiency, and it can simultaneously carry out a variety of machining operations such as drilling, tapping, milling, etc., which greatly improves the production efficiency. Compared with the traditional processing method, the drilling and tapping center is superior in processing quality and precision, and can meet higher processing requirements.
Availability:
Quantity:

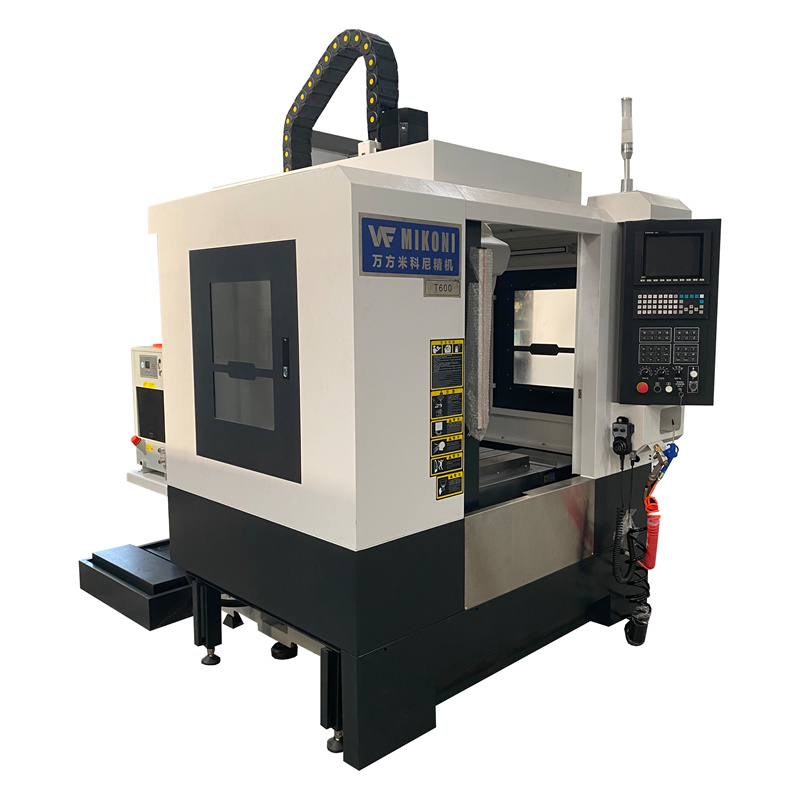

  • T600

  • Mikoni

                                     Drilling and tapping machining center


Drilling and tapping center is a kind of machinery and equipment specially designed for machining materials, which drills the tool into the surface of the workpiece by rotating and advancing it to achieve the purpose of machining. Drilling and tapping centers play a very important role in industrial production, and can efficiently complete a variety of processing tasks.


Drilling and tapping centers are characterized by versatility and high efficiency, and can simultaneously perform a variety of machining operations such as drilling, tapping, milling, etc., which greatly improves production efficiency. Compared with the traditional processing methods, the drilling and tapping center is superior in processing quality and precision, and can meet higher processing requirements.

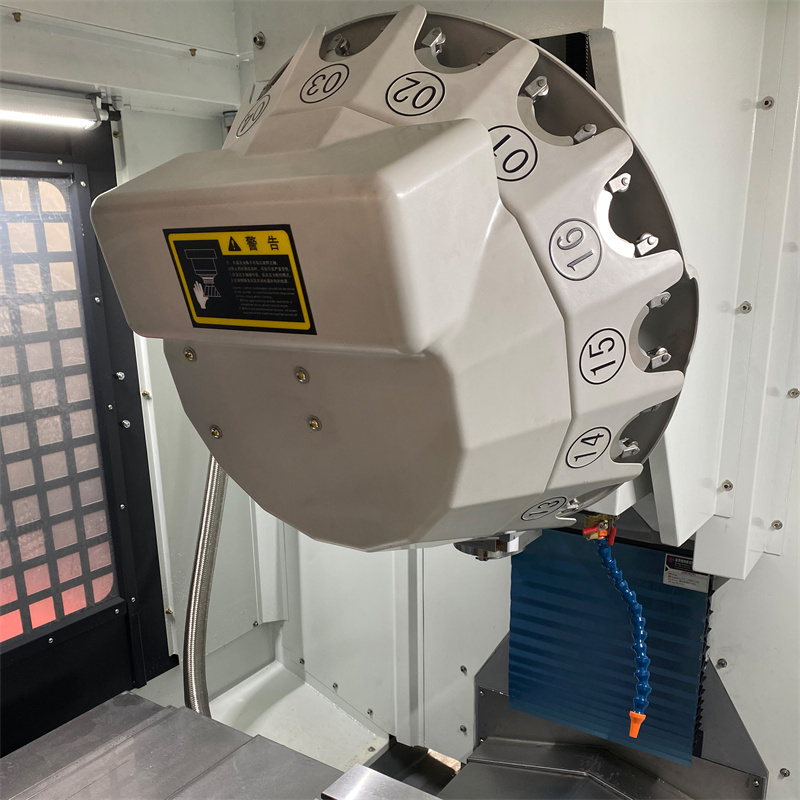

In addition, the drilling and tapping center also has the characteristics of intelligence and automation through the preset machining program and parameters, automated operations can be realized, reducing labor costs and improving production efficiency. At the same time, the drilling and tapping center can also realize the function of quick tool change and positioning, eliminating the cumbersome adjustment process, which is more convenient and quick.

Drilling and tapping machining center (5)


Features of drilling and tapping center


First of all, the drilling and tapping center can ensure that the processed products have high precision and consistency. This not only meets the strict requirements of modern manufacturing industry for product quality, but also facilitates the subsequent assembly and use process.

Secondly, traditional machining methods are not only inefficient, but also difficult to ensure precision. While the drilling and tapping center as a kind of machine tool, its machining process has achieved a high degree of automation and intelligence. Through the precise CNC system, the drilling and tapping center can realize fast and accurate processing, which greatly shortens the production cycle and improves the production efficiency.

In addition, the manufacturing industry's requirements for machining equipment are constantly increasing. As a representative of advanced technology, drilling and tapping center integrates many advanced manufacturing processes and technologies, such as high-speed cutting, ultra-hard material processing. The application and promotion of these technologies not only improve the performance and efficiency of drilling and tapping centers, but also promote the technological progress of the entire manufacturing industry.

Finally, the application of drilling and tapping center also brings economic benefits to the manufacturing industry. By improving production efficiency and product quality, drilling and tapping centers can help enterprises reduce production costs, shorten the delivery cycle, so as to gain an advantage in the fierce market competition!



Applications of Drilling and tapping center


Drilling and tapping center is mainly used for processing plate, plate parts, shell parts, molds and other parts with high precision, multiple processes and complex shapes, which can continuously complete milling, drilling, expanding, hinging, boring, tapping, and two-dimensional and three-dimensional curved surfaces, beveled surface of the precise machining in a single clamping, and the machining realizes the procedural, which shortens the production cycle, and thus enables the users to obtain good economic benefits.

cnc machining center (2)

3C Electronics Industry

cnc machining center (3)

Precision Hardware Parts

cnc machining center (1)

Small mold processing



Parameters of Drilling and tapping center

Model T600
Table Size 400*700mm
Working Area (X/Y/Z Axis) 600*400*300mm
Position accuracy ±0.005mm
Repeat Positioning Accuracy ±0.003mm
X/Y/Z axis rapid feed 48/48/48m/min
Cutting feeds 20000mm/min
Max Loading Weight 250KG
Spindle Power 5.5KW (Optional 7.5KW)
Tool holder BT30 (Optional BT40)
Tool capacity 21T (Optional 16T)
Fast tool change time 2sec
Spindle rotate speed 12000rpm(Optional 24000rpm)
Power supply 380V ± 10%50Hz
Machine weight 5000KG
