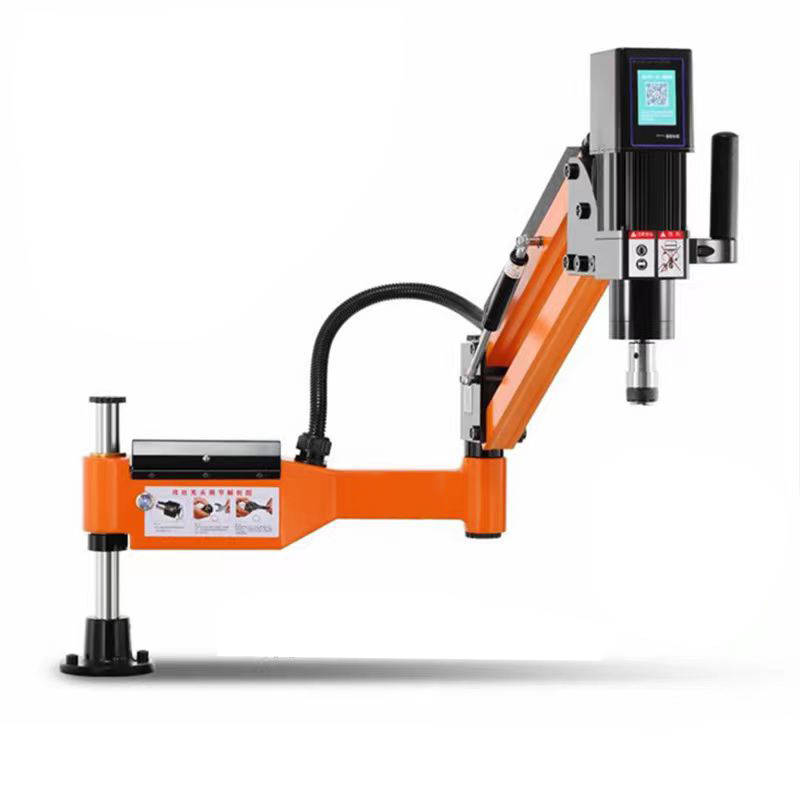

Electric Tapping Machine Tapping Arm for Metal Tapping Screw Thread
Electric tapping machine tapping arm with easy setting of speed, depth, forward and reverse rotation as well as automatic tapping, manual tapping and imitation manual automatic tapping modes through CNC panel. Servo motor driven with plenty of power and excellent energy consumption ratio overcomes the limitations of pneumatic tapping machines, lathes, drilling machines and manual tapping. The machine arm is kept balanced and vertical by the aluminum alloy bracket body, the bracket can make the tapping spindle movement to any position can be kept perpendicular to the worktable, and can completely realize universal tapping, the power head can be adjusted to any angle, vertical, horizontal can be tapping. Tap torque protection quick-change collets can ensure that the tapping is never interrupted, blind holes through holes are not tough to attack. Wide range of uses, can be steel, cast iron, aluminum, copper and other metal materials for tapping, suitable for all kinds of machining manufacturing industry.
Advantages of tapping machine tapping arm
A. Repeated positioning fast, tapping speed, high production efficiency.
B. Stepless speed change, manual, automatic, linkage three modes of work, whatever you choose.
C. Advanced mechanical design, a variety of processes using mold castings, the overall rigidity is strong,
durable, non deformation, beautiful appearance.
D. Automatic mode can effectively control the depth of tapping, without the operation button, automatic
control by depth controller.

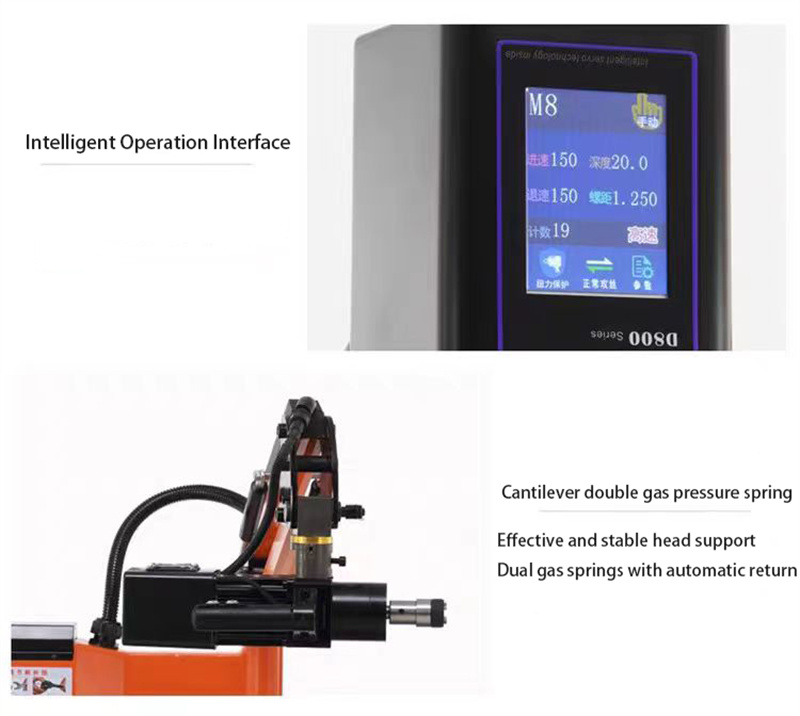

E. The high definition touch screen is simple and flexible. It can realize the vertical and horizontal work of
complex and heavy workpiece, locate quickly, and process accurately.

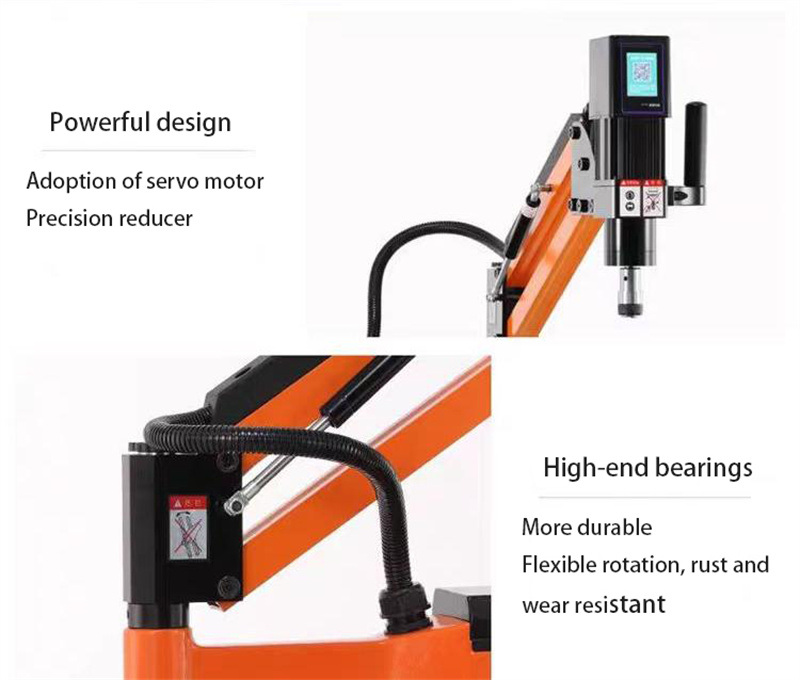

F. The machine adopts servo drive control, with intelligent torque protection, instead of the traditional
lathe, drilling machine or manual tapping limitations.
Product Details
Specification of tapping arm
Modle | M2-12 | M3-16 | M3-20 | M6-24 | M6-30 |
Voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |
Power | 1000W | 1000W | 800W | 1200W | 1200W |
Speed | 0-857rpm | 0-375rpm | 0-300rpm | 0-300rpm | 0-240rpm |
Standard accessory | ISO M2-M12 collet | ISO M3-M16 collet | ISO M3-M20 collet | ISO M6-M24 collet | ISO M6-M30 collet |
Application of tapping machine

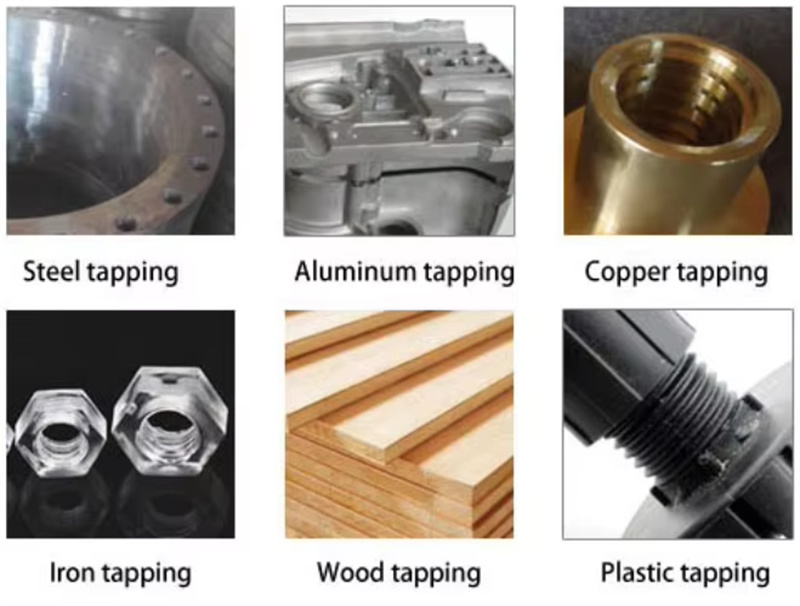

Electric tapping machine is widely used in mold production and processing, machinery manufacturing, hardware manufacturing, auto parts manufacturing and other metal and plastic processing industries. Greatly reduce the thread processing time, improve efficiency, save human resources, but also solved the tapping verticality can not be guaranteed as well as repeated processing of the problem of thread disorder
Electric Tapping Machine Tapping Arm for Metal Tapping Screw Thread
Electric tapping machine tapping arm with easy setting of speed, depth, forward and reverse rotation as well as automatic tapping, manual tapping and imitation manual automatic tapping modes through CNC panel. Servo motor driven with plenty of power and excellent energy consumption ratio overcomes the limitations of pneumatic tapping machines, lathes, drilling machines and manual tapping. The machine arm is kept balanced and vertical by the aluminum alloy bracket body, the bracket can make the tapping spindle movement to any position can be kept perpendicular to the worktable, and can completely realize universal tapping, the power head can be adjusted to any angle, vertical, horizontal can be tapping. Tap torque protection quick-change collets can ensure that the tapping is never interrupted, blind holes through holes are not tough to attack. Wide range of uses, can be steel, cast iron, aluminum, copper and other metal materials for tapping, suitable for all kinds of machining manufacturing industry.
Advantages of tapping machine tapping arm
A. Repeated positioning fast, tapping speed, high production efficiency.
B. Stepless speed change, manual, automatic, linkage three modes of work, whatever you choose.
C. Advanced mechanical design, a variety of processes using mold castings, the overall rigidity is strong,
durable, non deformation, beautiful appearance.
D. Automatic mode can effectively control the depth of tapping, without the operation button, automatic
control by depth controller.
E. The high definition touch screen is simple and flexible. It can realize the vertical and horizontal work of
complex and heavy workpiece, locate quickly, and process accurately.
F. The machine adopts servo drive control, with intelligent torque protection, instead of the traditional
lathe, drilling machine or manual tapping limitations.
Product Details
Specification of tapping arm
Modle | M2-12 | M3-16 | M3-20 | M6-24 | M6-30 |
Voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |
Power | 1000W | 1000W | 800W | 1200W | 1200W |
Speed | 0-857rpm | 0-375rpm | 0-300rpm | 0-300rpm | 0-240rpm |
Standard accessory | ISO M2-M12 collet | ISO M3-M16 collet | ISO M3-M20 collet | ISO M6-M24 collet | ISO M6-M30 collet |
Application of tapping machine
Electric tapping machine is widely used in mold production and processing, machinery manufacturing, hardware manufacturing, auto parts manufacturing and other metal and plastic processing industries. Greatly reduce the thread processing time, improve efficiency, save human resources, but also solved the tapping verticality can not be guaranteed as well as repeated processing of the problem of thread disorder
