Plastic Nylon Cable Tray Flexible Cable Hose Carrier Drag Chain

5 0 Reviews

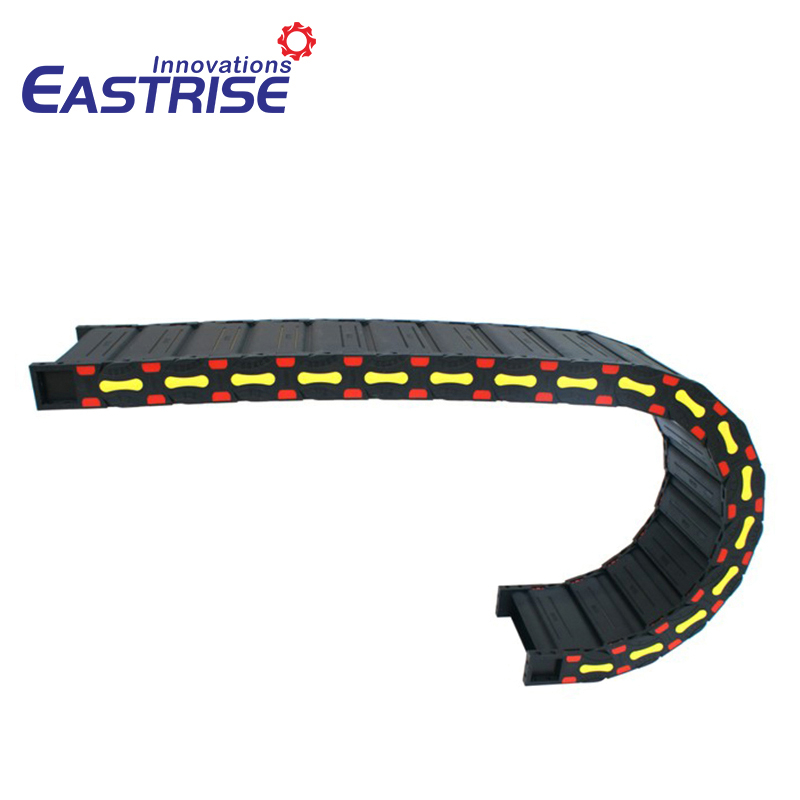

Cable chain are used for cnc machines, so as to guide and protect cables, oil pipes and gas pipes inside.
Availability:
Quantity:
  • Eastrise

Plastic Nylon Cable Tray Flexible Cable Hose Carrier Drag Chain

drag chain (11)

drag chain (14)

drag chain (15)

Parameters

Model Inner size
(height×width)
(mm)
Outer size
(height×width)
(mm)
Bending radius
(mm)
Section length
(mm)
15 series 15×15


22 series 22×50
55/75/100
20 series 20×26 36×48 45/ 55/75 /100/ 125/ 150 46
20×38 36×60 46
20×50 36×72 46
20×57 36×79 46
20×60 36×82 46
20×78 36×100 46
20×103 36×125 46
20×125 36×147 46
25 series 25×26 41×48 45/ 55/75 /100/ 125/ 150 46
25×38 41×60 46
25×50 41×72 46
25×57 41×79 46
25×60 41×82 46
25×78 41×100 46
25×103 41×125 46
25×125 41×147 46
30 series 30×26 46×48 45/  55/  75/ 100/ 125/ 150 46
30×38 46×60 46
30×50 46×72 46
30×57 46×79 46
30×60 46×82 46
30×78 46×100 46
30×103 46×125 46
30×125 46×147 46
35 series 35×50 56×76 75/ 100/ 125/ 150/ 175/ 200/ 250 77
35×60 56×86 77
35×75 56×101 77
35×80 56×106 77
35×90 56×116 77
35×100 56×126 77
35×110 56×136 77
35×125 56×151 77
35×130 56×156 77
35×150 56×176 77
35×175 56×201 77
35×200 56×226 77
35×250 56×276 77
35×300 56×326 77
35×350 56×376 77
40 series 40×50 61×80 75/ 100/ 125/ 150/ 175/ 200/ 250/ 300        84
40×60 61×90 84
40×75 61×105 84
40×80 61×110 84
40×90 61×120 84
40×100 61×130 84
40×110 61×140 84
40×125 61×155 84
40×130 61×160 84
40×150 61×180 84
40×175 61×205 84
40×200 61×230 84
40×250 61×280 84
40×300 61×330 84
40×350 61×380 84
45 series 45×50 66×80  75/ 100/ 125/ 150/ 175/ 200/ 250/ 300        84
45×60 66×90 84
45×75 66×105 84
45×80 66×110 84
45×90 66×120 84
45×100 66×130 84
45×110 66×140 84
45×125 66×155 84
45×130 66×160 84
45×150 66×180 84
45×175 66×205 84
45×200 66×230 84
45×250 66×280 84
45×300 66×330 84
45×350 66×380 84
55 series 55×50 77×80  125/ 150/ 175/ 200/ 250/ 300/ 350/ 400/  500/ 600        84
55×60 77×90 84
55×75 77×105 84
55×80 77×110 84
55×90 77×120 84
55×100 77×130 84
55×110 77×140 84
55×125 77×155 84
55×130 77×160 84
55×150 77×180 84
55×175 77×205 84
55×200 77×230 84
55×250 77×280 84
55×300 77×330 84
55×350 77×380 84
65 series 65×100 85×136 125/150/
200/250/300
91
65×125 85×161 91
65×150 85×186 91
65×175 85×211 91
65×200 85×236 91
65×250 85×286 91
65×300 85×336 91
65×350 85×386 91
80 series 80×100 106×140 150/200/
250/300/400
91
80×125 106×165 91
80×150 106×190 91
80×175 106×215 91
80×200 106×240 91
80×250 106×290 91
80×300 106×340 91
80×350 106×390 91

Application

1. Applications and characteristics of the drag chain

(1). The drag chain is used with reciprocating movements to guide and protect the cables, oil pipes and gas pipes inside.

(2). Each joint can be opened, which simplifies installation and maintenance. They are silent and wear resistant. They can work at high speed.

(3) The cable chain has been widely used in CNC machine tools, electrical equipment, machinery for the stone, glass and window industry, plastic injection molding machines, manipulators , lifting equipment and large and automated warehouses.

2. Structure

(1). The shape of the cable tray resembles the rails of the tank. It consists of many seals that can rotate on the seal next to it.

(2). For cable carriers of the same series, the internal and external dimensions as well as the pitch lengths are the same. There are many options for the internal dimension and the radius of curvature.

(3) .Each joint consists of connection joints on both sides and top and bottom cover plates. Each joint can be opened, which facilitates installation and disassembly without threading the cables. All you have to do is open the cover and then insert the cables, the oil pipe and the gas pipe inside.

(4). The dividers are provided for the arrangement of the space inside the cable tray.
