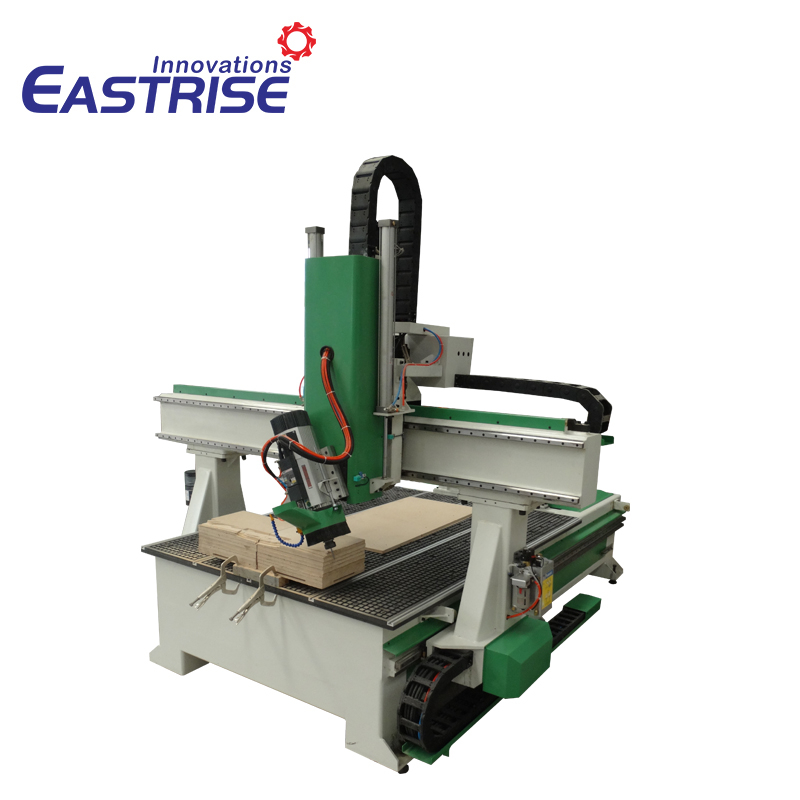

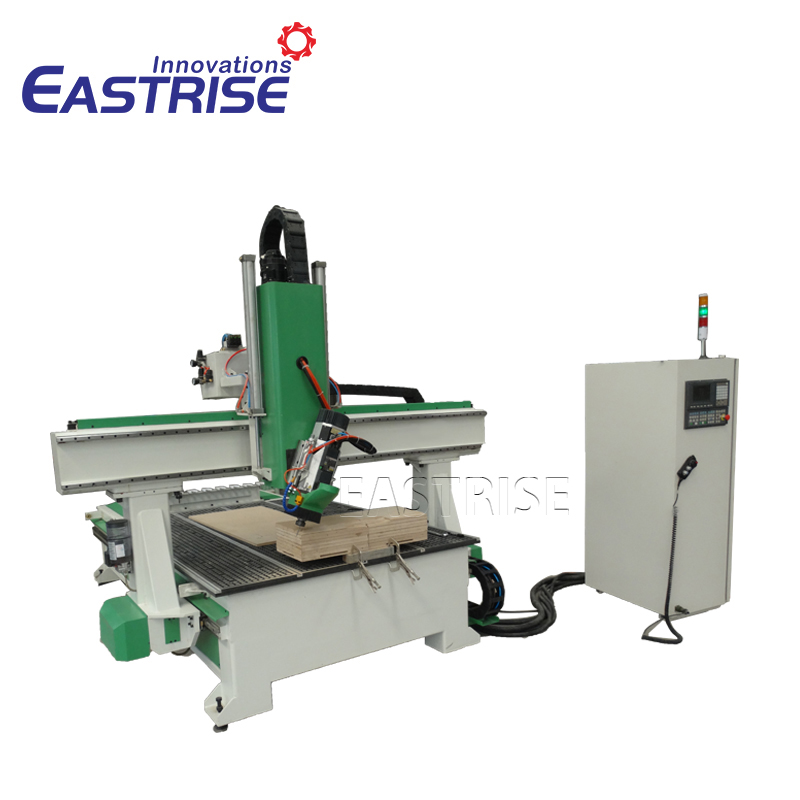

Description of 1325 4-axis ATC Cnc Router
ERM1325L 4-axis cnc router has X,Y,Z axis same as standard 3-axis cnc router,and it also has an extra C rotary axis,which can swing±180° to drill key hole of door and carve 3D polystyrene mould.Its 9kw big power spindle is also good for cutting and carving aluminium with the oil mist cooling system.It also specializes in furniture production because it has a linear tool magazine,which include 8 tool holders which can carve patterns on doors,mill and cut cabinet board.
Applications of 1325 ATC Cnc 4-axis Router
1.Mold industries:large non-metal mold like Foam (EPS)mould, wooden ship model,wooden model aviation and other wooden mould can be particularly made by 4 axis cnc router.
2.Musical instrument industry: three dimension musical instrument, contour cutting.
4.Furniture industry:wooden door,cabinet,cupboard,etc.
3.Non-ferrous metals: materials such as aluminum, copper, alloys and other light non-ferrous metal processing.
Advantage of 1325 4-axis ATC Cnc Router
8mm-thickness steel tube structure is very and stable,not easy to be deformed,and no any vibration during working.
Top-quality components,4 axis ATC high power spindle,Taiwan Delta inverter,Taiwan TBI ball screw,Japanese Yaskawa servo motors,Taiwan Syntec 6MB controller.Long life time, high precision and efficiency.
Linear Tool Magazine system with 8 forks and 8 tool holders,which can be equiped near the spindle,so it changes tools quickly and save time.
Optional configurations and OEM service available. According to your requirement, different configurations will be offered.

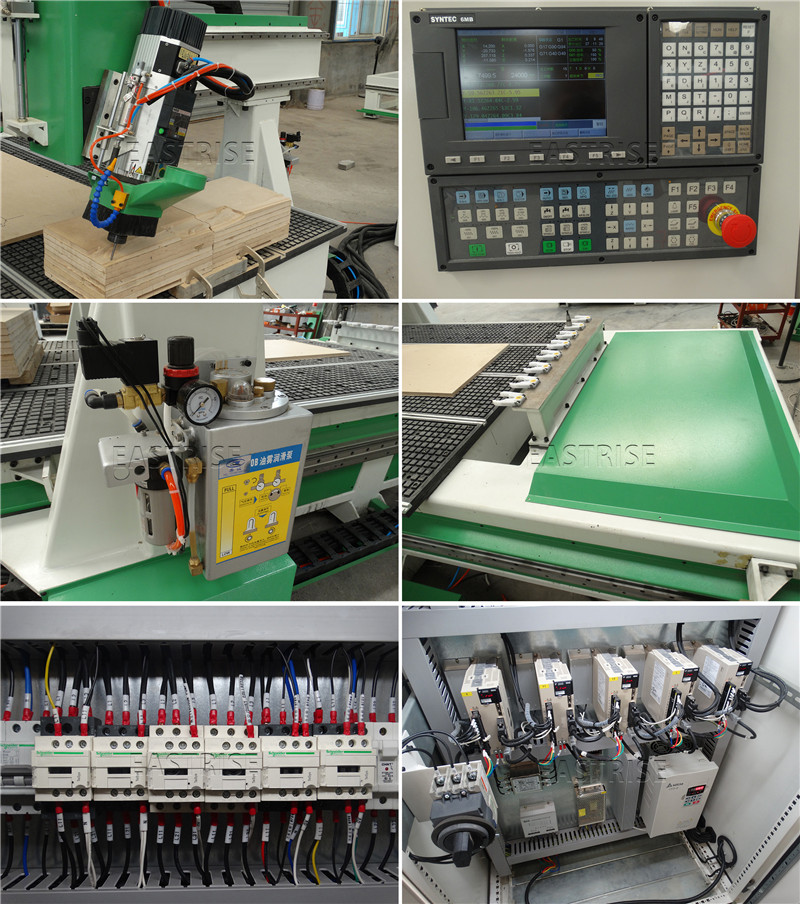

Features of 1325 4-axis ATC Cnc Router
1. Italian HSD spindle: original famous brand from Italia, you also can choose Chinese HQD spindle.
2. SYNTEC 6MB control system: from Taiwan with high performance and competitive price.
3. 750w Yaskawa servo motor and drives: from Japan with high precision and long life.
4. HIWIN linear guide: from Taiwan, it is used for linear reciprocating stadium.
5. Working area: 1300*2500*400mm, C Rotary Axis: 180 degree.
6. Welded steel tube structure thicken to 10mm.
7. Drive System: X, Y-Rack Z-Ball Screw, Z with high precision ball screw.
8. French Schneider electronic components: original brand from France.
9. Japanese Omron Switch with long life.
10. APEX Reudcer from Taiwan: More powerful and higher precision.
Technical parameters
Description | ERM1325L 4AXIS |
X,Y,Z working area | 1300x2500x400mm |
X,Y,Z Traveling Positioning accuracy | ±0.03/300mm |
Lathe-bed frame | Steel square tubes heavy duty body |
X,Y Structure | Rack and pinion |
Z Structure | Ball screw Taiwan linear rails |
Drive motors | Servo system |
Table surface | T-slot vacuum table |
Fixing method | 9.0KW air cooling pump |
Max rapid travel rate | 45000mm/min |
Max working speed | 20000mm/min |
Spindle | 9.0Kw Italian HSD |
Spindle speed | 0-24000RPM |
Working voltage | AC220V/50/60Hz or AC380V/50/60Hz |
Command language | G Code, *uoo,*mmg, *plt |
Flash memory | 512M |
Operating system | Taiwan Syntec controller |
Computer Interface | USB |
Collet | ER32 |
X,Y,Z working accuracy | <0.01mm |
Running environment temperature | 0~45 centigrade |
Relative humidity | 30%-75% |
Machining
Testing
Certificate
Feedback from customer
