1325 4x8ft Cnc Router with Rotary Axis

This cnc router is with rotary axis.It can be used for carving and cutting flat and round materials like wood board,PVC sheet,round wood,etc.Working size can be customized according to customers' requirement.

Quantity:
  • ERM-1325R
  • Eastrise

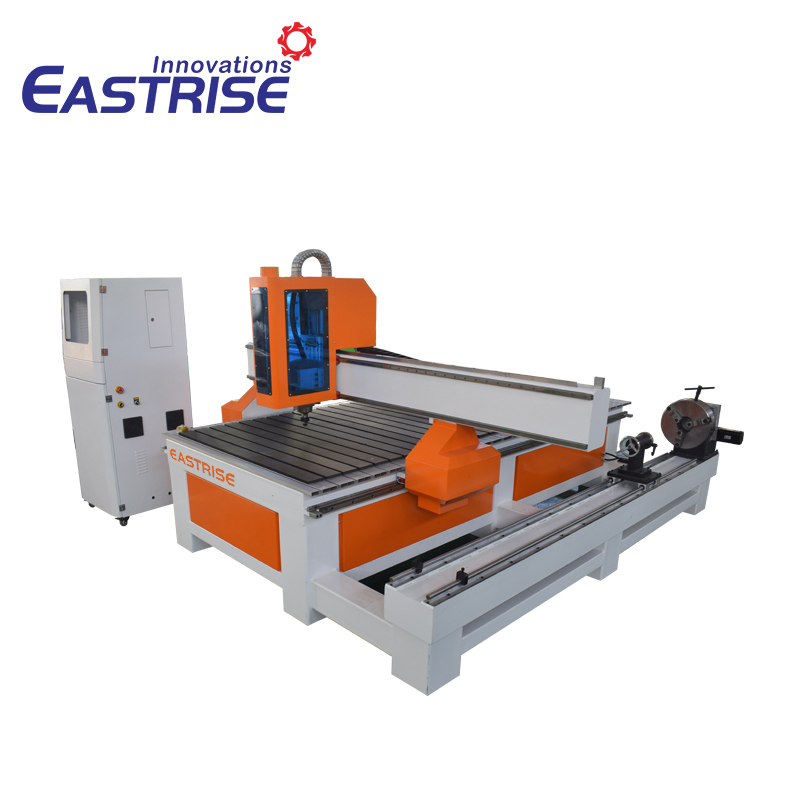

1325 cnc router with rotary axis (1)

Description of 1325 Cnc Router with Rotary Axis

Eastrise Innovations supplys standard 4x8ft cnc router with 4th rotary axis.1300x2500mm flat working area is for sign board,craft,door,furniture.Suitable for materials like solidwood,rosewood,sandalwood,MDF,acrylic,PVC,soft metal.And the rotation' size can be customized as your request.It can usually be diameter 100mmxlength 1500mm,200mm(D)x2000mm(L),300mm(D)x2500mm(L).It is used for making table leg,Roman pillar,stair pillar,3D statuary,statue with relief and sculpture.

cnc router

cnc router with rotation

Advantages of 1325 CNC Router with Rotary Axis

1)8mm welded steel tube structure.Very heavy,very stable,net weight can be 1500kg,processed by high temperature tempering treatment.

1325 cnc router with rotary axis (7)

2)Vacuum and T-slot table.Easy to hold materials by vacuum pressure or clamos,very convenient.

4 axis cnc router (4)

3)High flexible shielded cables.High resistance to bending of the cable, can withstand thousands of times bending, life up to 20 years.

4 axis cnc router (1)

4)Auto height sensor.This can measure the distance between the top of tool and the surface of material automatically.

4 axis cnc router (7)

5)Oil lubrication system.We have two kinds of lubrication systems,one is manual lubrication,which needs to spray by hand.The other is automatic lubrication,which can work automatically after setting.

4 axis cnc router (2)

6)Reasonable and reliable vacuum pipes under table,which can supply powerful vacuum pressure to hold material better.

4 axis cnc router (5)

Features of 1325 Cnc Router with Rotary Axis

1. Working area:1300*2500*200mm Rotation:diameter 200mm,length 2000mm
2. 3KW/4.5KW/5.5KW HQD water/air cooling spindle
3. Nc-studio/DSP/Mach3 control system
5. Manual oil mist cooling sprayer for working on metal
6. Taiwan HINWIN linear guide rail
7. High-precision helical rack gear
8. T-slot and vacuum table
9. Stepper motor and leadshine drivers
10. Fuling inverter
PS : We can customize different size and different configurations for you.

Technical parameters

Model

                       ERM1325

Working size

1300*2500mm

Max feeding height

200mm(Customized)

Max traveling speed

40m/min

Tool diameter

¢3.175、¢4 、¢6、8¢12.7

Transmission

High-precision helical rack gear

Software environment

WindowsXP/7/8/10

Spindle power

3KW/4.5KW/5.5KW(Optional)

Power without spindle

2KW

Voltage

220V/380V

Recognizing language

G code(nc)、mmg、plt、eng、dxf

Spindle speed

6000-24000rpm/min

Control system

NC studio/DSP/Mach3

Machining

cnc router (1)

Testing

cnc router (3)

Certificate

cnc router (4)

Feedback from customer

cnc router feedback
