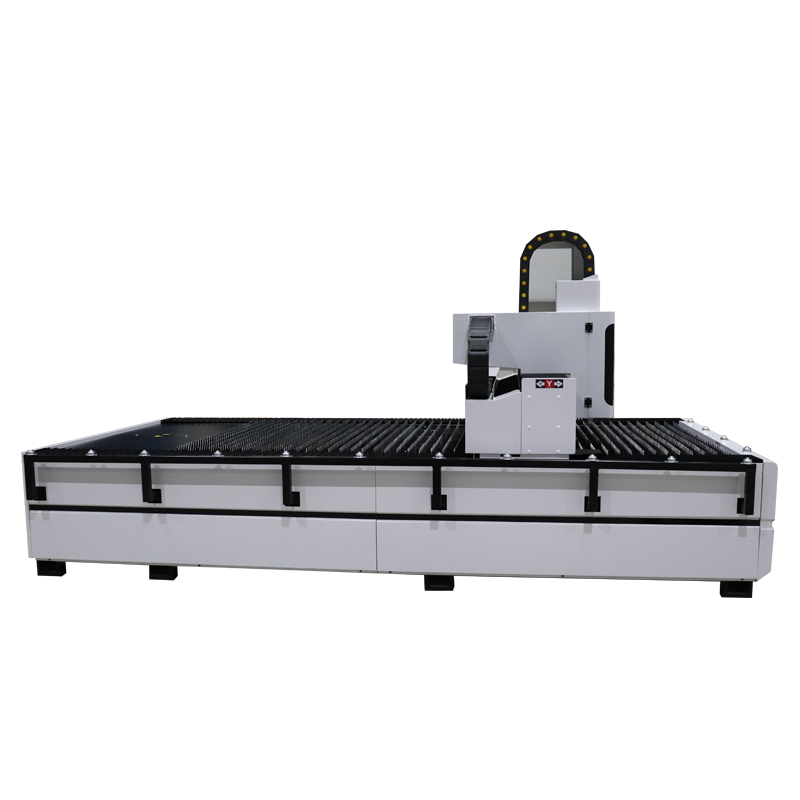

Fiber Laser Cutting Machine for Metal

5 0 Reviews

We has more than 100 machine models, including Co2 Laser Cutting Machine for Nonmetal,Co2 Laser Cutting Machine for Metal and Nonmetal,Co2 Laser Engraving Machine,Laser Marking Machine,Fiber Laser Cutting Machine,CNC Router and so on.  These equipment have been widely used in advertising industry,crafts industry,packaging industry,auto accessories industry,kitchen industry,furniture

Quantity:
  • ER-3015A
  • Eastrise

fiber laser cutting machine

Quality

Each product is strictly examined according to ISO9001 (QCS) and ISO14001 (EMS) standards before it is put on to the market. Many laser equipments have acquired CE FDA certificate. We persist the mission of "supplying our customers with the best CNC&Laser equipments and solutions" to provide our customers with good quality equipments.

Service

We supply 24 hours on-line pre-sale service and after-sale service;

If you want to learn how to operate the machine,you can come to our company and we will teach you for free;

And after buying our machine,if repair needed ,we will help you on-line or send engineers to help you all over the world.


A : Characteristics

1.Stability and reliability of light path system and control system

2.Imported original fiber lasers,high and stable function,lifespan is over 100000 hours

3.Higher cutting quality and efficiency ,cutting speed is up to 40m/min with appearance and beautiful cutting edge

4.Germany high performance reducer,gear and rack;Japanese guide and ball screw.

metal laser cutting machine

fiber laser cutting

metal cutting machine (2)

B : Application industry :
metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, agriculture and forestry machinery, elevator manufacture, special vehicles, household appliances, tools, processing, IT manufacturing, oil machinery, food machinery, diamond tools, welding, welding gear, metal materials, decoration advertising, laser surface treatment of foreign processing services, such as all kinds of machinery processing industry.

C : Application Materials

Professional used to cut sheet metal,like carbon steel sheet,stainless steel plate, aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminium zinc plate and other metal

fiber laser cutter (7)

Advantages of our fiber laser cutting machine:

1 Fast speed:

40m/min, two driver, synchronous high speed move;

2 Leapfrog cutting:

Improve the cutting speed, processing efficiency and accuracy;

3 Scan cutting :

Short distance cutting without head lifting,

4 Cutting and marking functions:

Power can be controlled set with two layers, one cut and another mark, you can cut and mark together on one metal part;

5 Automatic search edge function:

If metal sheet put slanting , machine can auto detect, and auto adjust cutting, less waste and no need to replace material;

6 Power off cutting memory:

When suddenly power off, software has memory of cut stop point, after power on, you can start cutting from the break point;

7 Install Proportional Valve:

Use software to change the air and control the air pressure automatically, no need to change the air manually, it can save you much time;

8 Stable working table:

Use 16mm thick steel side board, around 5 tons in weight;

Dual drive, aging treatment, stress relief test to ensure long time fast running without changing shape;

9 Air condition for control cabinet

cooling for Electronic parts and Laser Power Supply, make sure control cabinet temperature at 26℃,extend the life of electronic devices and save the power for the factory.

10 High electrical-optical conversion efficiency

Fiber laser can convert up to 30 % electrical energy into laser energy. High energy conversion makes fiber laser more energy efficient.

Technical parameters

Working Area

1300*2500mm/1500*3000mm

Laser Power

500W/750W/1000W/1500W/2000W

Laser Wave Length

1064nm

Working Table

Saw tooth

Position Accuracy

±0.03mm/m

Maximum Speed

60m/min

Minimum Line Width

± 0.02mm

Control System

Cypcut

Position Type

red dot

Power Consumption

≤12KW

Working Voltage

380V/50Hz, three phase

Auxiliary Gas

oxygen,nitrogen,air

Working life of fiber module

More than 100000 hours

Fiber laser cutting head

Raytools

Focus lens

Raytools

Driver system

Yaskawa servo+FASTON reducer

Liner guider system

HIWIN linear guide made in Taiwan ,

Transmit system

Dual Rack & Pinion type

Rack system

Herion made in Germany

Chain system

Igus made in Germany

Warranty time

Whole machine for 3 years (fiber module 2 years )

Gross weight

4000kg
