Price without plasma source or table: | |
---|---|
Table: | |
Availability: | |
Quantity: | |

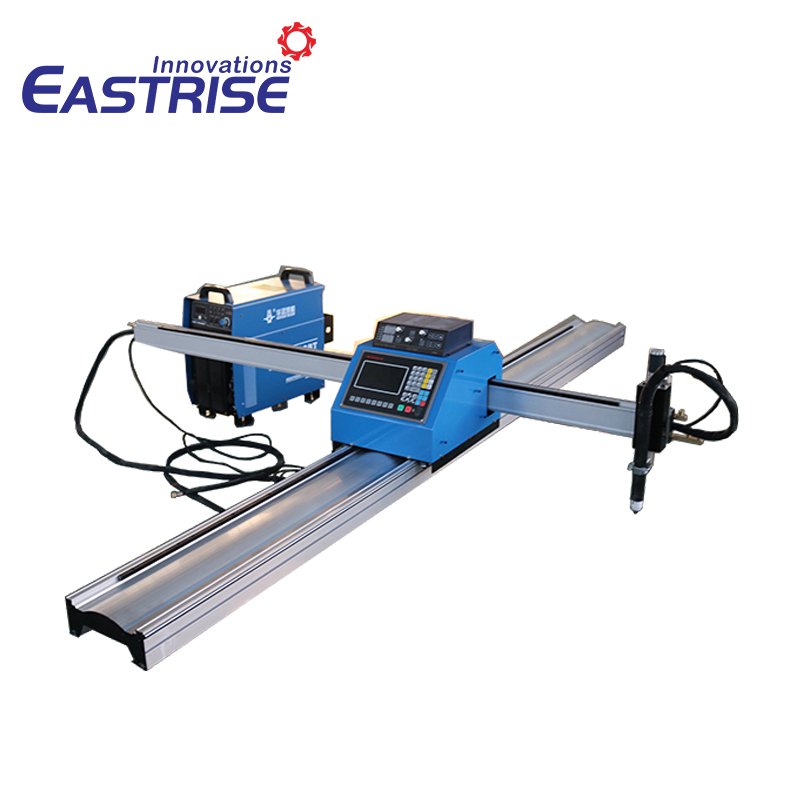

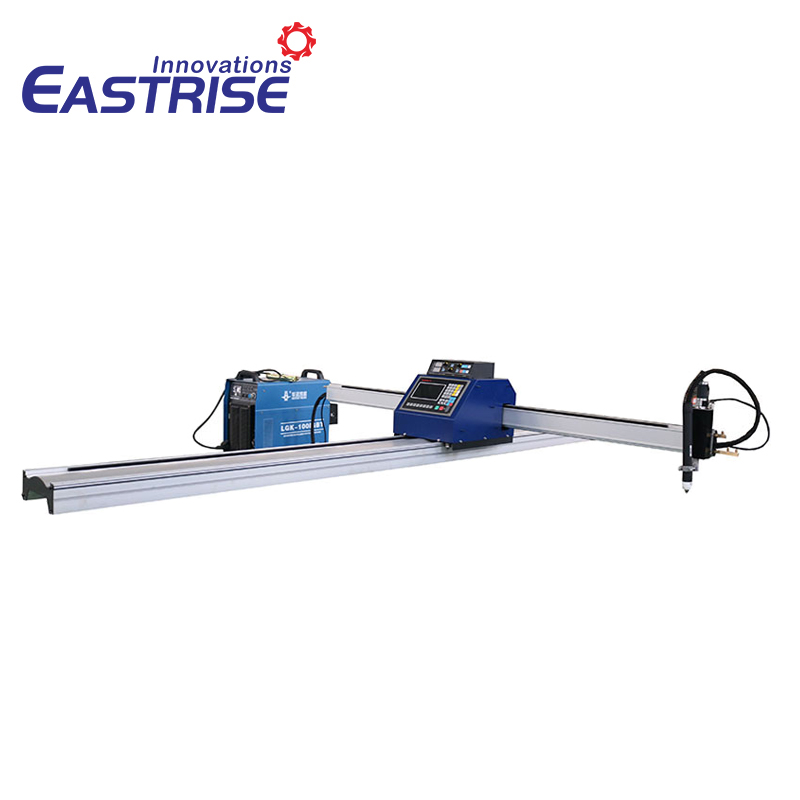

Features of CNC Plasma Cutting Table

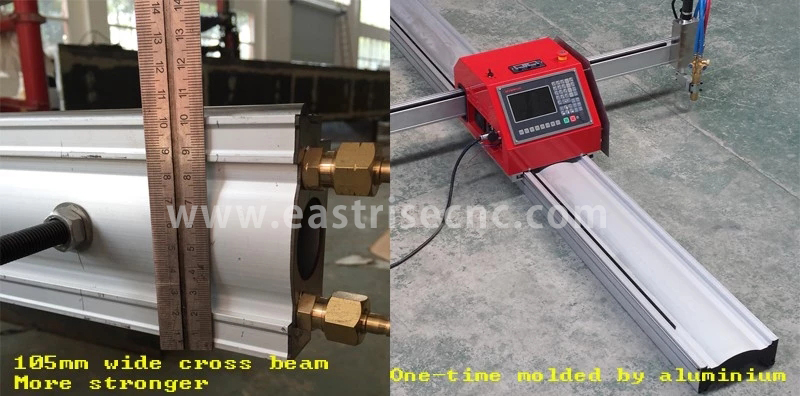

Very strong structure made of aluminium.
Table is an option
Plasma torch and flame torch can be together.
Packages size
1. 1.3x2.5m working area machine:3250x130x280mm, 360x440x500mm, weight 125kg;
2. 1.5x3.0m working area machine:3750x130x280mm, 360x440x500mm, weight 135kg.

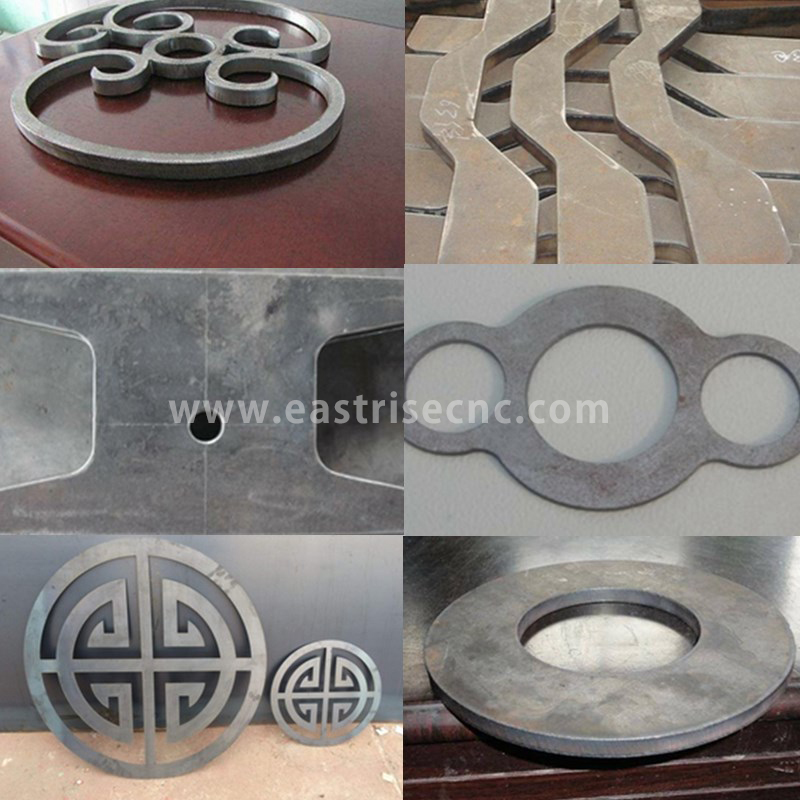

Application of 1325 1530 Plasma Cutting Machine for metal, steel, SS, CS, MS
Application Material: it is suitable for carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet,stainless steel and other metal sheet.
Application industry: it is widely used for processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.
Technical parameters
Specifications | Parameters |
Working Area(X Y) | 1300*2500mm 1500*3000mm |
Power source | Huarong/Huayuan plasma source |
Cutting Speed | 0-16000 mm/min |
Plasma Unit Max | 5.5KW |
Positioning accuracy | ±0.3mm |
Arc | Untouched arc striking |
Software support | Starcam plasma software |
Instruction format | G code |
Working pressure | 0.3-0.7Mpa |
Working voltage | 3Phase 380V/60HZ |
Machine dimension(L*W*H) | 3000*2520*1540mm |
Files transfer | USB interface |
Exhibition
Certificate
Features of CNC Plasma Cutting Table
Very strong structure made of aluminium.
Table is an option
Plasma torch and flame torch can be together.
Packages size
1. 1.3x2.5m working area machine:3250x130x280mm, 360x440x500mm, weight 125kg;
2. 1.5x3.0m working area machine:3750x130x280mm, 360x440x500mm, weight 135kg.
Application of 1325 1530 Plasma Cutting Machine for metal, steel, SS, CS, MS
Application Material: it is suitable for carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet,stainless steel and other metal sheet.
Application industry: it is widely used for processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.
Technical parameters
Specifications | Parameters |
Working Area(X Y) | 1300*2500mm 1500*3000mm |
Power source | Huarong/Huayuan plasma source |
Cutting Speed | 0-16000 mm/min |
Plasma Unit Max | 5.5KW |
Positioning accuracy | ±0.3mm |
Arc | Untouched arc striking |
Software support | Starcam plasma software |
Instruction format | G code |
Working pressure | 0.3-0.7Mpa |
Working voltage | 3Phase 380V/60HZ |
Machine dimension(L*W*H) | 3000*2520*1540mm |
Files transfer | USB interface |
