Cutting Capability and Parameters of Huayuan Plasma Source

Views:34     Author:Site Editor     Publish Time: 2019-07-03      Origin:Site

Cutting Capability and Parameters of Huayuan Plasma Source

Huayuan

metal

thickness(mm)

current(A)

Speed (mm/min)

Given voltage(v)

Kerf width (mm)

Air pressure

(mpa)

Cooling type

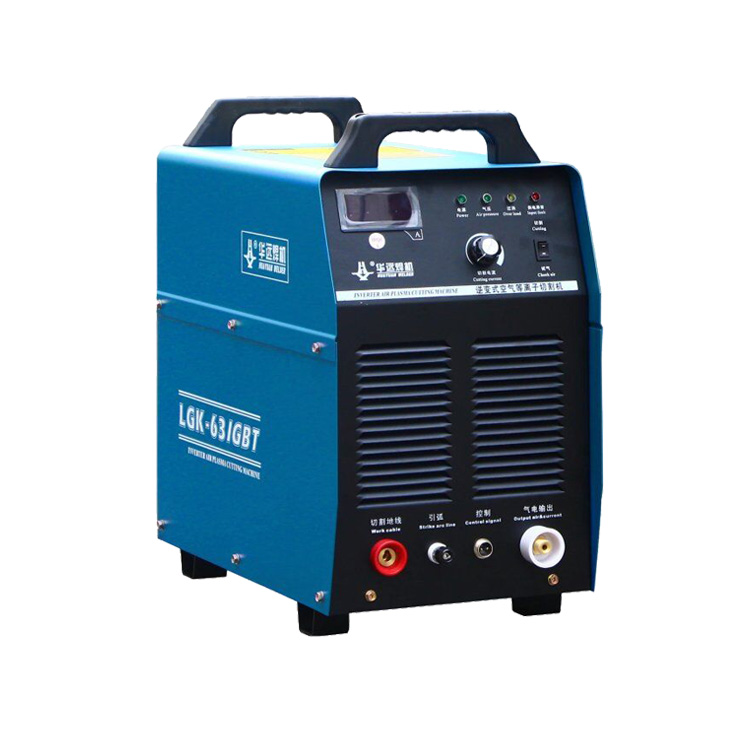

63A

cs

1mm

63

8000

null

1

0.50

air

2mm

63

5000

null

1

0.50

air

3mm

63

2200

110

1.5

0.50

air

5mm

63

1200

125

2

0.60

air

ss

1mm

63

6000

100

1

0.60

air

2mm

63

4000

110

1

0.60

air

3mm

63

2000

120

1.5

0.60

air

100A



metal

thickness(mm)

current(A)

Speed (mm/min)

Given voltage(v)

Kerf width (mm)

Air pressure

(mpa)

Cooling type

cs

3mm

70

4000

110

1.5

0.50

air

6mm

80

3000

120

1.5

0.55

air

8mm

100

2200

130

2

0.55

air

10mm

100

2000

140

2.5

0.60

air

12mm

100

1500

150

2.5

0.60

air

ss

2mm

80

5000

110

1

0.60

air

3mm

100

3500

120

1.5

0.60

air

5mm

100

2500

135

2

0.60

air

8mm

100

1800

145

2.5

0.60

air

120A


metal

thickness(mm)

current(A)

Speed (mm/min)

Given voltage(v)

Kerf width (mm)

Air pressure

(mpa)

Cooling type

cs

12mm

120

2000

140

2.5

0.60

air

14mm

120

1200

150

3

0.60

air

16mm

120

800

160

3

0.60

air

ss

6mm

120

3000

130

2

0.60

air

8mm

120

2200

140

2.5

0.60

air

10mm

120

1000

150

2.5

0.60

air

160A



metal

thickness(mm)

current(A)

Speed (mm/min)

Given voltage(v)

Kerf width (mm)

Air pressure

(mpa)

Cooling type

cs

12mm

160

2500

140

2.5

0.60

air,water

14mm

160

1800

150

3

0.60

air,water

16mm

160

1200

160

3.5

0.60

water

18mm

160

800

170

3.5

0.60

water

ss

8mm

160

3000

140

2.5

0.60

air,water

10mm

160

2000

150

3

0.60

water

12mm

160

1500

160

3

0.60

water
