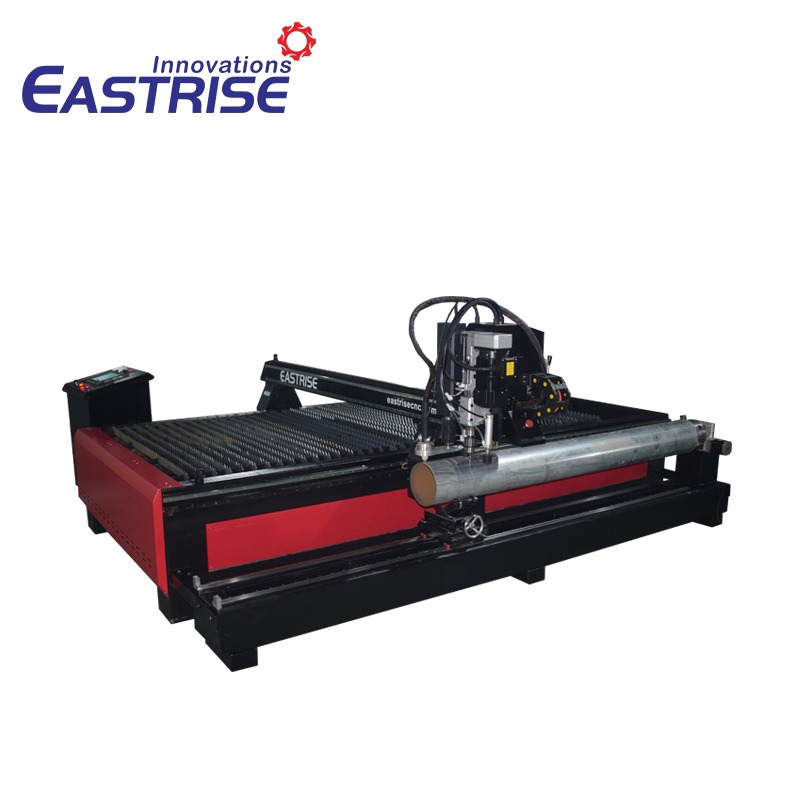

Metal Tube Plasma Cutting Table Machine with Rotary Axis

CNC Metal Tube Plasma Cutter is suitable for cutting flat metal sheet and metal tube.We also call it plasma table,plasma cutting machine,cnc plasma cutting machine,cnc plasma cutter,plasma cnc table.

Quantity:
  • ERP-1325R
  • Eastrise

Metal, Steel, SS, CS, MS Plasma And Flame Cutting Machine with Rotation

plasma cutting machine (1)

Features of Plasma And Flame Cutting Machine with Rotation

1. Plasma torch and flame torch equiped together.

plasma table (3)

2. Starfire controller and Starfire THC can work well together.And remote controller is an option.

plasma cutting machine (10)

3. Rotary axis is used for cutting metal tube.Standard working diameter is 200mm300mm,other sizes can be customized.

plasma table (1)

4. Soft and hard limit.

plasma table (2)

5. Sensible and tidy control cabinet.Every cable has label.If there is electronic problem,we can find out easily.

plasma cutting machine (7)

6. We send consumables for free,nozzle*50pcs and electrode*50pcs.

plasma cutting machine (9)

Application of 1325 1530 Plasma And Flame Cutting Machine

Application Material: it is suitable for carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet,stainless steel and other metal sheet.

Application industry: it is widely used for processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.

plasma cutting

plasma cutting pipe

Technical parameters

Specifications

Parameters

Working Area(X Y R)

1300*2500mm Rotation:diamater 200mm,300mm

Power source

Hypertherm/Huayuan plasma power supply

Cutting Speed

0-16000 mm/min

Plasma Unit Max

5.5KW

Positioning accuracy

±0.3mm

Arc

Untouched arc striking

Software support

FASTCAM plasma software

Instruction format

G code

Working table

Serrate working platform

Working pressure

0.3-0.7Mpa

Working voltage

3Phase 380V/60HZ

Machine dimension(L*W*H)

3000*2520*1540mm

Weight

N./GW: 1500/1700KG

Files transfer

USB interface

Machining

cnc router (1)

Testing

cnc router (3)

Exhibition

laser machine


Certificate

cnc router (4)


Feedback from customer

plasma cutter
