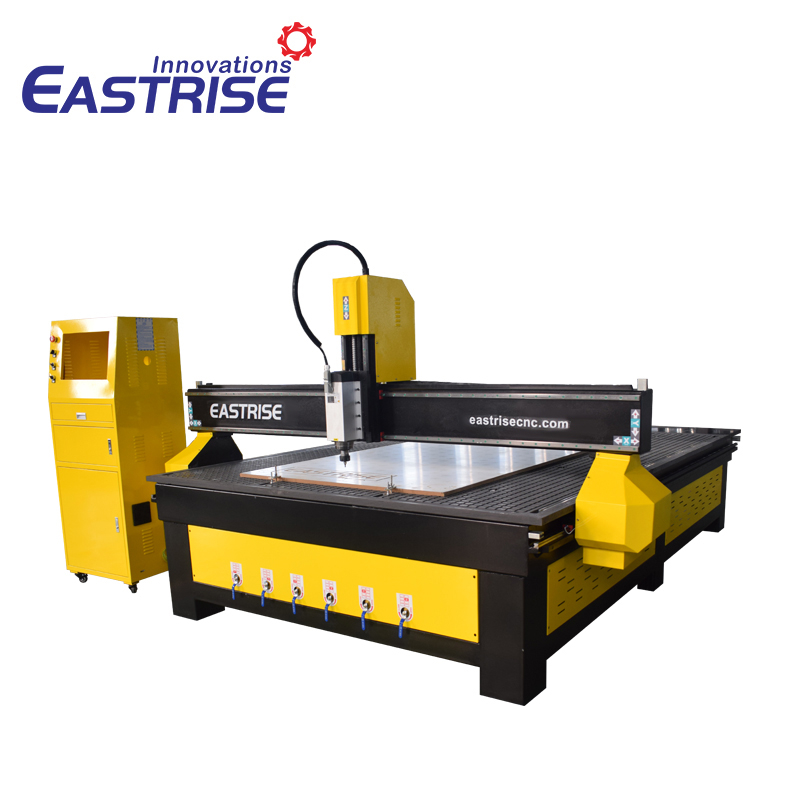

Affordable 2030 Big Size Cnc Router for Sale with Low Price

5 0 Reviews

This is a 3-axis CNC router with a big working area,2000x3000mm(7x10 feet).It is suitable for cutting,carving and drilling big material boards like wood,MDF,acrylic,PVC,plywood,polystyrene,etc.

Quantity:
  • ERM2030
  • Eastrise

Affordable 2030 Big Size Cnc Router for Sale with Low Price

2030 cnc router (1)

Description of 2030 CNC Router

We can make heavy-duty 2030 cnc router with different configurations.We can also make mini cnc router,4&5 axis cnc router,stone cnc router,metal cnc router,ATC cnc router,furniture cnc router. We can customize cnc router machine according to your requests.

Applications of 2030 Wood CNC Router

It can be used for room door making,cabinet making,decoration making,wardrobe making,wood carfts making,sign board making,loudspeaker box making,voice box making,sound box making...

cnc router

Advantages of 2030 Big Size Cnc Router

1.We use 8mm thickness steel tube to make machine body,very strong,very heavy,very stable.Not easy to be out of shape.

2.We use high flexible shielded wire,which can avoid signal interference, can avoid line winding,has long lifetime.

3.We use HQD spindle,which is the best brand in China,and the most expensive brand and quality is also the best.

4.We use original Taiwan Hiwin or PMI rail to keep best quality,it can work at least 10 years.

Features of 2030 Big Size Cnc Router

1. Working area:2000*3000*200mm
2. 3.5KW/4.5KW/6KW HQD air cooling spindle
3. Nc-studio/DSP/Mach3 control system
5. Manual oil mist cooling sprayer for working on metal
6. Taiwan HINWIN linear guide rail
7. High-precision helical rack gear
8. T-slot and vacuum table
9. Stepper motor and leadshine drivers
10. Fuling or Best inverter
PS : We can customize different size and different configurations for you.

big size cnc router (7)

Technical parameters

Model

                       ERM2030

Working size

2000*3000mm

Max feeding height

200mm(Customized)

Max traveling speed

30000mm/min

Tool diameter

¢3.175、¢4 、¢6、¢8、¢12.7

Transmission

High precision Ball screw

Software environment

WindowsXP/7/8/10

Spindle power

3KW/4.5KW/5.5KW(Optional)

Power without spindle

1KW

Voltage

220V/380V

Recognizing language

G code(nc)、mmg、plt、eng、dxf

Spindle speed

6000-24000rpm/min

Control system

NC studio/DSP/Mach3

Machining

cnc router (1)

Testing

cnc router (3)

Certificate

cnc router (4)

Feedback from customer

cnc router feedback
