China 4-head Round Wood 3D Carving CNC Router Machine for Sale

ERM0315-4 cnc router is specialized in 3d carving for round and square wood column like table leg,stair leg,Roman column and statue.

Quantity:
  • ERM0315-4
  • Eastrise

China 4-head Round Wood CNC Router Carving Machine for Sale

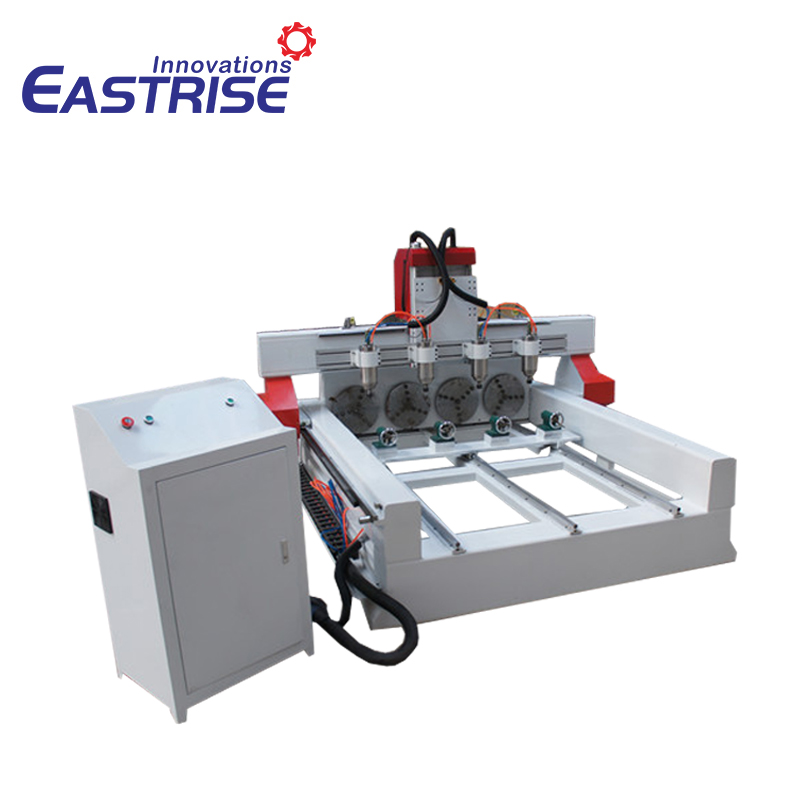

4 rotary axis cnc router (1)

Description of 4-head 3D Wood Engraving Machine

ERM0315-4 3d wood carving machine has 4 spindles and 4 rotary axes,which can work at same time.So we can get 4 products in one time.It will save a lot of time,you know carving complicated patterns will take much time even several hours.So it has high efficiency and suitable for mass production.

Applicable materails of 4 Spindles CNC Router for Cylinder Material

soft metal,plastic,wood materials,polystyrene foam,PVC,acrylic and other materials,if you carve stone column,we recommend stone cnc router with rotary axis.

cnc router with rotary axis

Roman column

Applications of 3D carving CNC Router for statue

ERM0315-4 CNC Router has four spindles.which is good at 3D carved furniture such as table legs,Roman column and other round or square wood column.3D Carving CNC Router Machine can engrave 360 degree on 3D statues and artworks easily like Buddhist statue, sculpture,art craft,desk legs...

4 rotary axis cnc router

Features of 4 Spindles CNC Router for Cylinder Material

1. Working area:diameter 300mm*length 1500mm*4pcs
2. 3KW/2.2KW HQD water cooling spindle
3. Nc-studio/DSP control system
6. Taiwan HINWIN linear guide rail
7. Taiwan TBI high precision ball screw
8. Stepper or servo motor and driver
9. Fuling or BEST inverter

Technical parameters

Model

                       ERM0315-4

Working diameter

200mm

Working length

1500mm

Max traveling speed

30m/min

Tool diameter

¢3.175、¢4 、¢6、¢8、¢12.7

Transmission

High precision Ball screw

Software environment

WindowsXP/7/8/10

Spindle power

1.5KW/2.2KW(Optional)

Power without spindle

2KW

Voltage

220v/380v

Recognizing language

G code(nc)、mmg、plt、eng、dxf

Spindle speed

6000-24000rpm/min

Control system

NC studio/DSP

Machining

cnc router (1)

Testing

cnc router (3)

Certificate

cnc router (4)

Feedback from customer

cnc router feedback
