ERS1325RS2
Eastrise

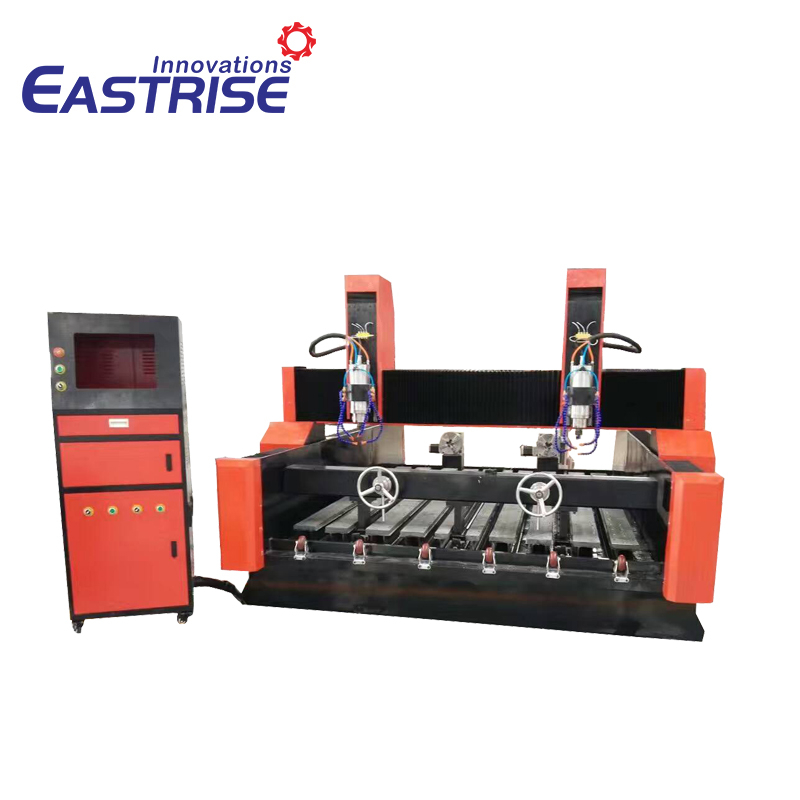

Advantages of Stone Marble Granite Carving Cnc Router
1.High performance driver motors ensure high speed and high accuracy.
2.Heavy-duty machine structure,good loading capacity,special design of machine,can transport more than 2500kgs of material is not easy to deform.
3.The specially designed Zaxis improves the accuracy of the stone relief and completely solves the problems of ball screw or Zaxis strap breakage.
4.X Y Zaxis waterproof and dustproof system protects all parts,reduces machine breakdown and prolongs life.
5.The well-known brand-name water-cooled brushless spindle has low noise and excellent cutting ability, ensuring long-term operation.
Applications of Stone CNC Router
Tombstones, souvenir stones and granite tombstones. Use a CNC drill to engrave a traditional V-shaped submersible head and laser head to commemorate the engraved image. It can complement tombstones, souvenir stones and carved granite
Features of Double Spindles Stone Marble Granite Carving Cnc Router
1.Shelf bed is welded with thick channel steel and square tube,treated by removing vibration stress,reducing high temperature treatment and residual stress,and has good stability and no deformation.
2.High-precision gearbox provides high-precision,fast and powerful features.
3.High-speed water-cooled spindle and high-performance sub-driver operate reliably for a long time.
4.Practical and easy-to-learn software makes it easy to navigate the toolpath and adjust the Z axis machining depth and engine speed.
5.The designer chooses the best mechanical accessories to minimize the error rate. Specific memory stops, power off, prediction of processing time and other features ensure unexpected handling.
6.Water tank and dual water cooling system work effectively.
Technical parameters
Model | ERS1325RS2 |
Working size | 1300*2500mm |
Max feeding height | 400mm(Customized) |
Max traveling speed | 40m/min |
Tool diameter | ￠3.175、￠4 、￠6、￠8、￠12.7 |
Transmission | Rack and opinion |
Software environment | WindowsXP/7/8/10 |
Spindle power | 4.5KW/5.5KW |
Power without spindle | 2KW |
Voltage | 220V/380V |
Recognizing language | G code（nc）、mmg、plt、eng、dxf |
Spindle speed | 6000-24000rpm/min |
Control system | NC studio/DSP/Mach3 |
Machining
Testing
Certificate
Feedback from customer
