ERS1325S2
Eastrise

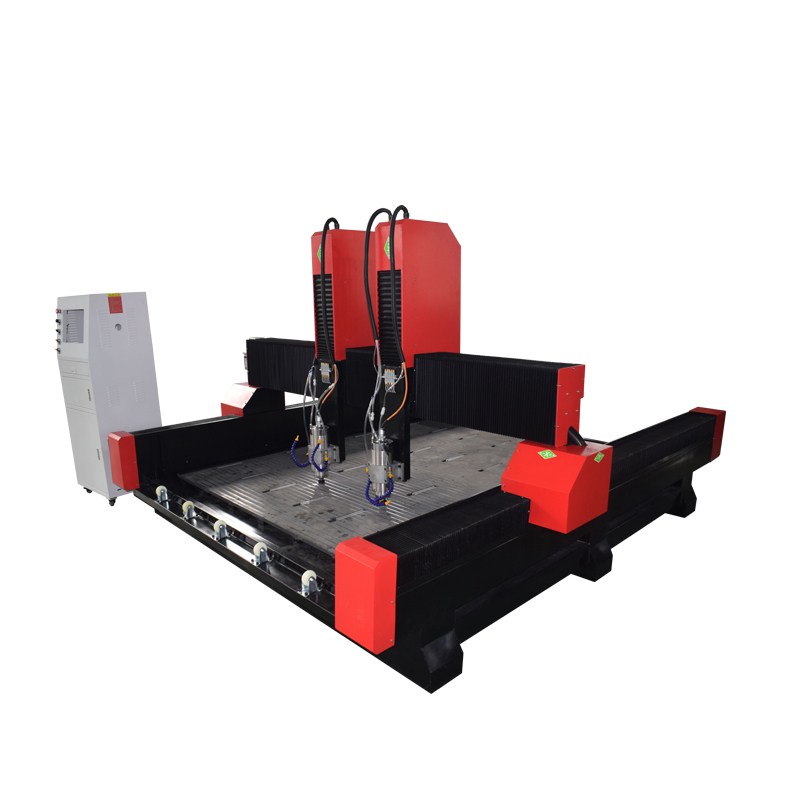

Stone Quartz Cnc Router Advantages
1.Heavy-duty machine bed was welded of 8mm-thinkness steel tube and tempered by high temperature treatment.
2.Dust-proof cover for XYZ axis,which can prevent small stone dust from polluting rail and rack to keep high working precision for a long time.
3.Dust-proof and water proof 5.5kw big power spindle can work for 24 hours per day to make complicated patterns,letters,relief on stone.
4.Big power stepper motor and driver for XYZ axis to keep machine run fast and smoothly.
CNC Stone Carving Machine Applications
construction industry, designs, manufactures and shapes constructions from marble, granite, quartz rocks, stones and decorating materials
Stone CNC machine can be used for line cutting,2D engraving,3D cargraving, 3D relief,milling,cutting,drilling,etc.
Applicable Materials of Stone CNC Router
Stone, marble, granite, black stone, blue stone, jade, glass, glass, plexiglass tiles, ceramic tiles, plastic, chemical compound boards, PVC boards, bamboo products, aluminum boards, metal, etc.
Advantage of 1325 1530 Double Spindles Stone Cnc Router
1.Machine structure is very heavy,more than 1500kg.So there is no any vibration during working.
2.X,Y axis adopted high precision,famous brand and high quality rack and gear transmission,it is widely touched the gear with high precision,high speed and high torque.
3.DSP controller is very easy to learn.Most customers can learn it well within 2 hours.
4.Breaking point memory function in case of sudden power cut.Controller can continue working from breaking point when electricity power recover,so it can save many time if we use this some area which doesnt have stable electricity power.
5.Big power water pump can supply big water flow to cool carving bit well,so bit will have a longer lifetime to save money.
Technical parameters
Model | ERS1325S2 |
Working size | 1300*2500mm |
Max feeding height | 400mm(Customized) |
Max traveling speed | 40m/min |
Tool diameter | ¢3.175、¢4 、¢6、¢8、¢12.7 |
Transmission | Rack and opinion |
Software environment | WindowsXP/7/8/10 |
Spindle power | 4.5KW/5.5KW |
Power without spindle | 2KW |
Voltage | 220V/380V |
Recognizing language | G code(nc)、mmg、plt、eng、dxf |
Spindle speed | 6000-24000rpm/min |
Control system | NC studio/DSP/Mach3 |
Machining
Testing
Certificate
Feedback from customer
