ERG6090D
Eastrise

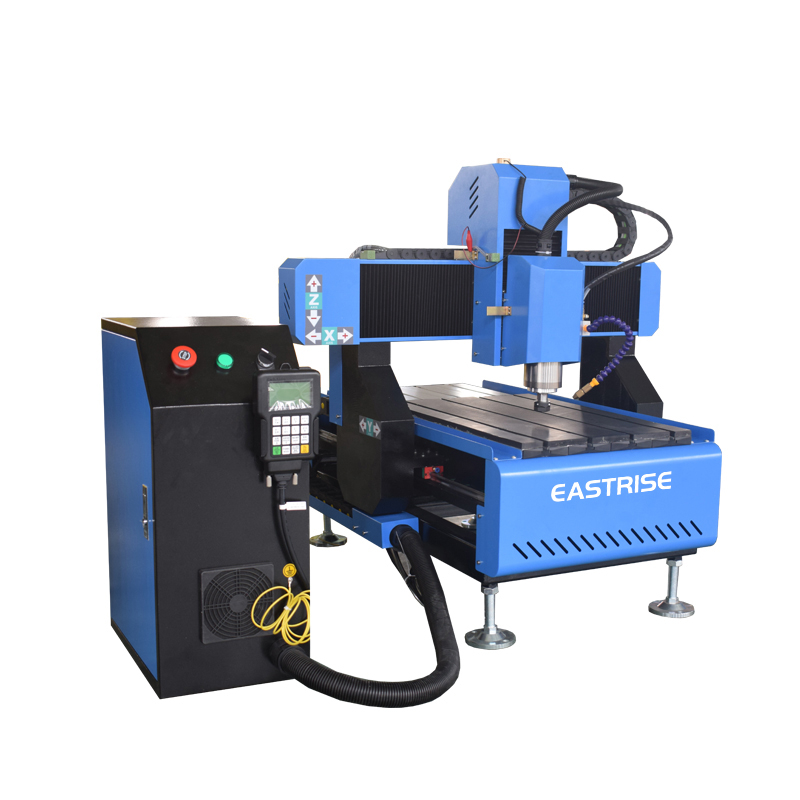

Description of 6090 desktop Hobby Cnc Router
ERG6090D desktop cnc router is a mini cnc router with a small table.It is used for home business,small shop,hobby learning,school education,etc.
Applicable materails of 6090 Mini Cnc Router
Aluminium,copper,bronze,plastic,solid wood,rosewood,sandalwood,acrylic,PVC,alucobond and other materials.
Advantage of 6090 desktop Mini Cnc Router
1. RichAuto DSP A11 controller
2.Mist cooling system and oil lubrication system
3.Electric cabine
4.Taiwan TBI high-precision ball screw and Taiwan Hiwin square rail
5.Level adjustment
Features of 6090 desktop Mini Cnc Router
1. 600*900*200mm working size
2. 1.5KW/2.2KW HQD water cooling spindle
3. Nc-studio/DSP/Mach3 control system
5. Manual oil lubrication
6. Taiwan HINWIN or PMI linear guide rail
7. Taiwan TBI high precision ball screw
8. T-slot table
9. Stepper motor and leadshine drivers
10. Fuling inverter
PS : We can customize different sizes and different configurations for you.
Technical parameters of 6090 desktop Mini Cnc Router
Model | ERG6090D |
Working size | 600*900mm |
Max feeding height | 150mm，(Customized) |
Max traveling speed | 6000-8000mm/min |
Tool diameter | ￠3.175、￠4 、￠6、￠8、￠12.7 |
Transmission | High precision Ball screw |
Software environment | WindowsXP/7/8/10 |
Spindle power | 1.5KW/2.2KW(Optional) |
Power without spindle | 1KW |
Voltage | 220v |
Recognizing language | G code（nc）、mmg、plt、eng、dxf |
Spindle speed | 6000-24000rpm/min |
Control system | NC studio/DSP |
Machining
Testing
Certificate
Feedback from customer
