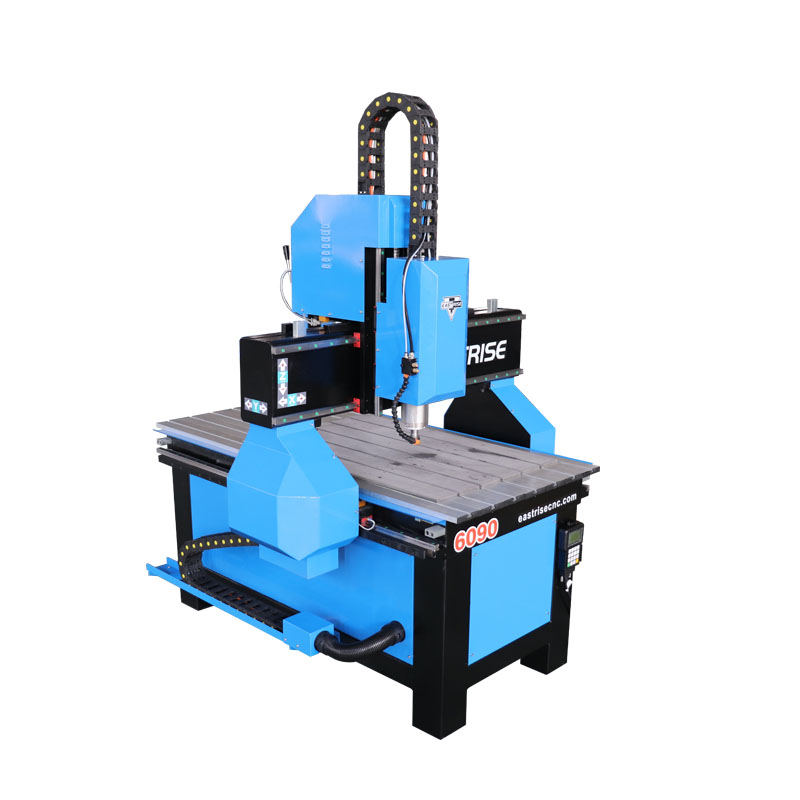

6090 Guitar Cnc Router for Wood,Acrylic,PVC,Foam,Metal

5 0 Reviews

This hobby cnc router has a small working table,which can make small wood craft design,sign board.It can meet people's hobby,who like cnc process.

Quantity:
  • ERG6090
  • Eastrise

6090 Guitar Cnc Router for Wood,Acrylic,PVC,Foam,Metal

guitar making machine

Description of 6090 Hobby Cnc Router

This mini cnc router can make small wood craft,sign board,relief.It use ball screw as transmission,which has high precision but moving speed is a little low.It can also be assembled with water tank and water sprayer for cooling cutting bits,so it can cut and carve soft metal like aluminium,copper and bronze.

Applicable materails of 6090 Mini Cnc Router

Part of soft metal, plastic, wood materials, acrylic, PVC, MDF and other materials.

6090 cnc router

Advantage of 6090 Advertising CNC Router

■ All of the three axes adopt Taiwan TBI high-precision ball screw,which can keep high working precision.

■ T-slot table with clamps can hold materials stably and easily in high working speed.

■ We use controller with memory function,which can memorize  and continue working at break-point in case of sudden electricity power failure.

■ X and Z axis adopt dust-proof cover,which can keep rail and rack clean and work better for a long time.

Configurations of 6090 cabinet type Mini Cnc Router

1. Working area:600*900*150mm
2. 1.5KW/2.2KW HQD water cooling spindle
3. Nc-studio/DSP/Mach3 control system
5. Manual oil lubrication
6. Taiwan HINWIN linear guide rail
7. Taiwan TBI high precision ball screw
8. T-slot table
9. Stepper motor and leadshine drivers
10. Fuling inverter
PS : We can customize different size and different configurations for you.

6090 cnc router

Technical parameters

Model

                       ERG6090

Working size

600*900mm

Max feeding height

150mm(Customized)

Max traveling speed

6000-8000mm/min

Tool diameter

¢3.175、¢4 、¢6、¢8、¢12.7

Transmission

High precision Ball screw

Software environment

WindowsXP/7/8/10

Spindle power

1.5KW/2.2KW(Optional)

Power without spindle

1KW

Voltage

220v

Recognizing language

G code(nc)、mmg、plt、eng、dxf

Spindle speed

6000-24000rpm/min

Control system

NC studio/DSP/Mach3

Machining

cnc router (1)

Testing

cnc router (3)

Certificate

cnc router (4)

Feedback from customer

cnc router feedback
