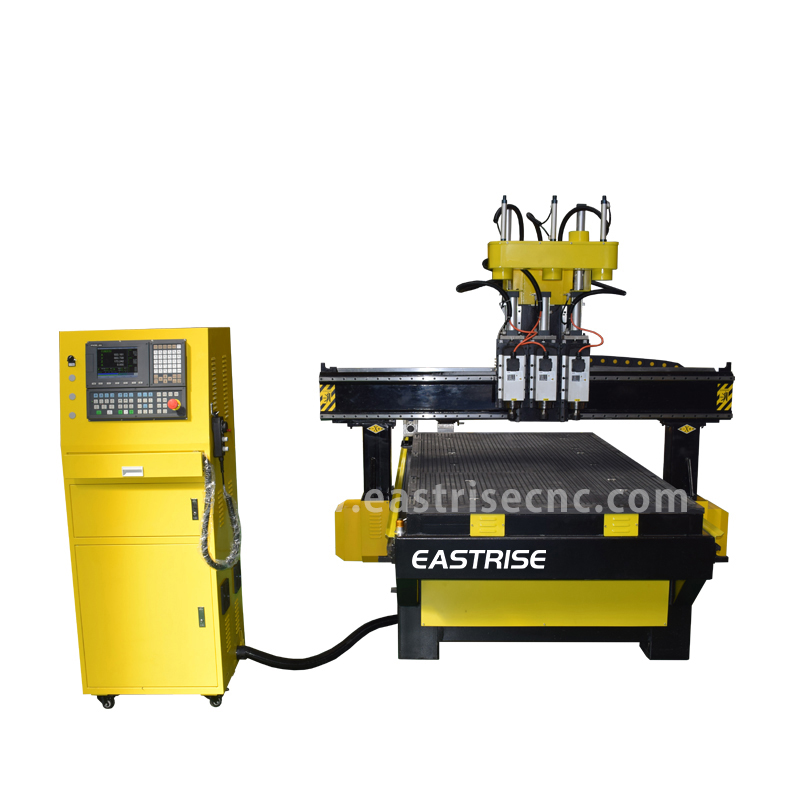

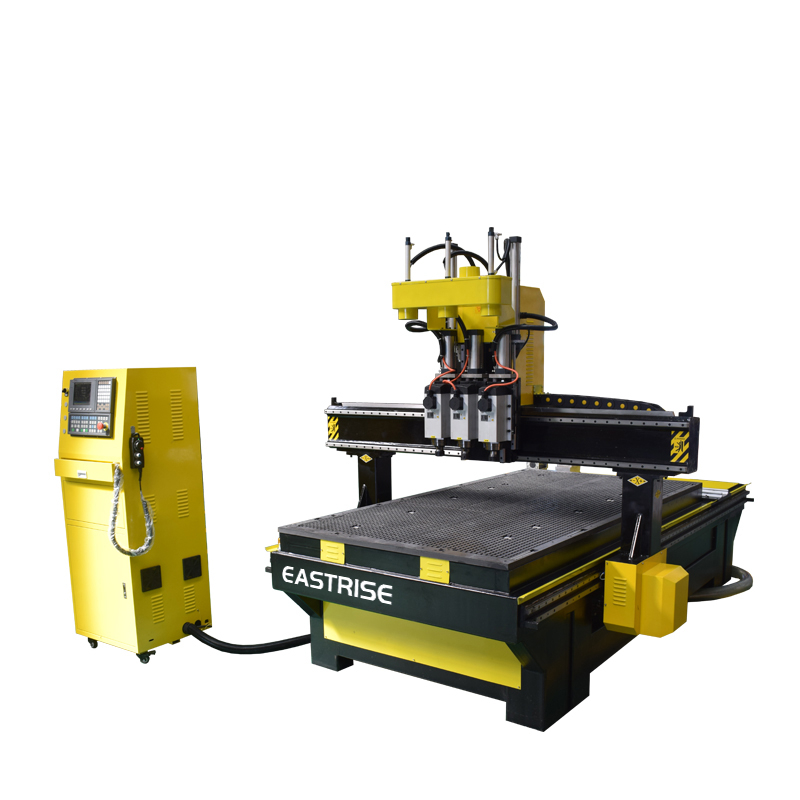

3 heads ATC cnc router table

5 0 Reviews
ERM1325A3 is a simple ATC cnc router,which has 3 heads,so it can make wood door and wood cabinet easily
Availability:
Quantity:
  • ERM1325A3

  • Eastrise

3 heads ATC cnc router table

ATC cnc router (1)

Descriptions of 1325 1530 wood Cnc Router

This cnc router table can change tool automatically,so we call it ATC cnc router.It is mainly used for making furniture,if you only do simple work like wood carft,you can consider our other models:mini cnc router,standard cnc router,stone cnc router,metal cnc router,multi-spindle cnc router...

Applicable materials of 1325 ATC Cnc Router

ATC woodworking engraving machine is a specially designed for user who has high standard, high demand, high degree of automation.toward the CNC machine.Which is suitable for all kinds of solid wood, MDF, composite board, hard plastic, artificial marble, acrylic and other materials batch processing.

ATC cnc router

Advantage of1300X2500mm wood door Cnc Router

1.Controlled by a high-performance controller to ensure high speed and accuracy of the machine.

2.We use original machine parts with good performance.

3.Machine has memory function in case of electricity cut.

4.Heavy-duty machine structure is more than 1800kg,very strong and stable,no any vibration during high-speed working.

5.Servo motors can keep high working speed

6.Upload your design to the table with a USB drive.Automatic tooling changes let you swap out bits with computer-controlled precision.Sensor compensates for the change in tool lengths.That change might seem tiny,but it makes a huge difference to the finished product.

7.Powerful 7.5kw vacuum pump has enough vacuum pressure to hold the material during working.

Features of 4'X8' ATC Cnc Router

3 spindles can change automatically for carving,cutting,drilling.No need to change bits manually.

ATC cnc router (7)

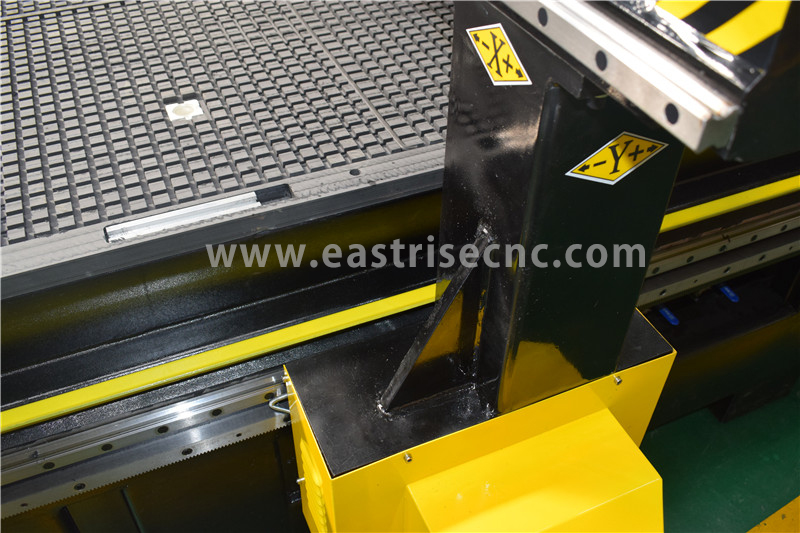

Very strong gantry supporter.

ATC cnc router (8)

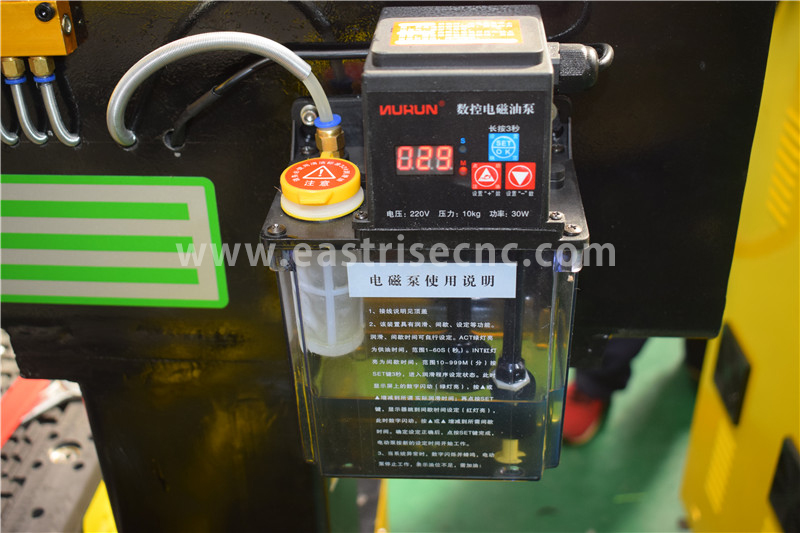

Automatic oil pump can supply oil to rail and ball screws easily.

ATC cnc router (9)

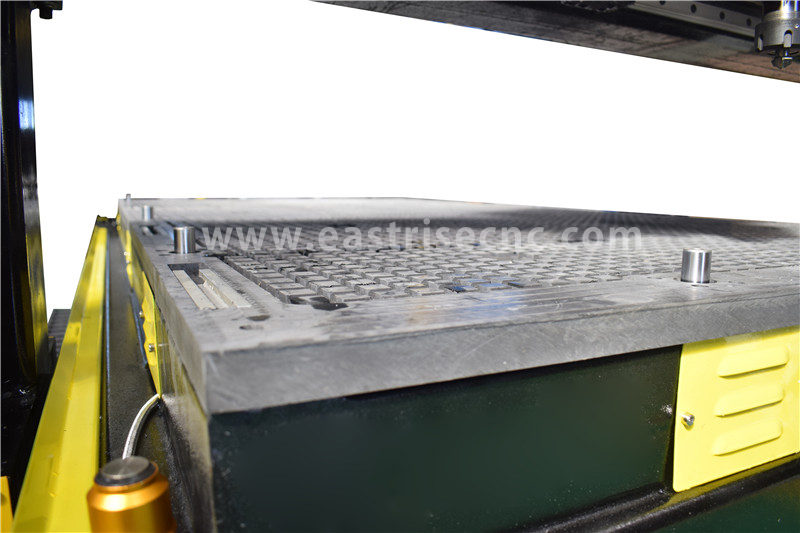

Positioning cylinders

ATC cnc router (10)

Technical parameters

Model

                       ERM1325A3

Working size

1300*2500mm

Max feeding height

200mm(Customized)

Max traveling speed

6000-8000mm/min

Tool diameter

¢3.175、¢4 、¢6、¢8、¢12.7

Transmission

High precision Ball screw

Software environment

WindowsXP/7/8/10

Spindle power

4.5KW/6KW(Optional)

Power without spindle

5KW

Voltage

220V/380V

Recognizing language

G code(nc)、mmg、plt、eng、dxf

Spindle speed

6000-24000rpm/min

Control system

Weihong/DSP/Mach3/Syntec

Machining

cnc router (1)

Testing

cnc router (3)

Certificate

cnc router (4)
