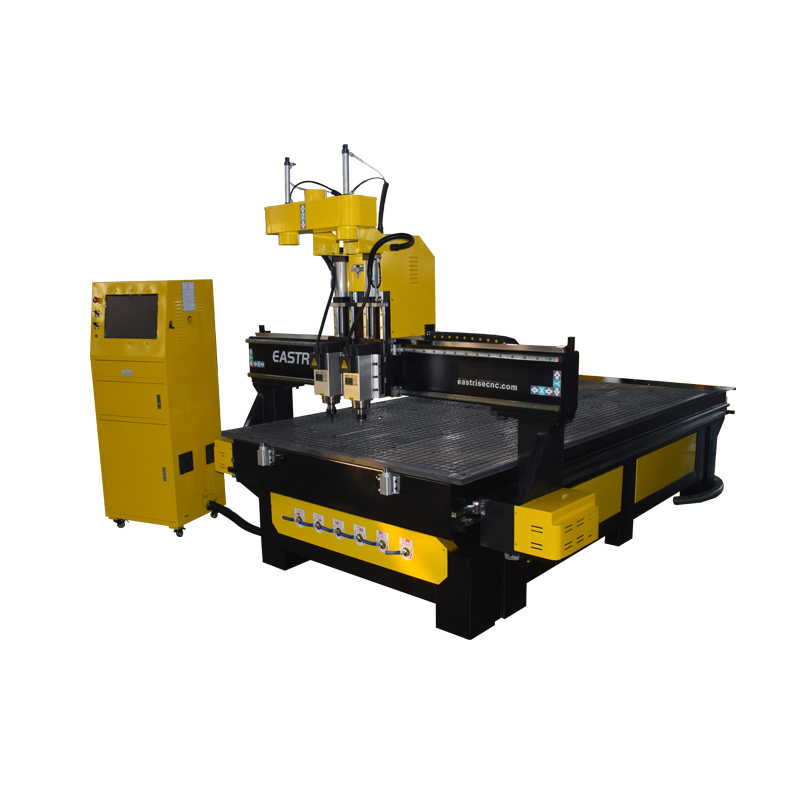

China 1325 Two-process ATC Cnc Router Table for Sale

5 0 Reviews

ERM1325A2 wood cnc router table has two spindles.As you know,if we want to make a wood craft,firstly we will mill wood to remove much of it within a short time to get a similiar shape,secondly we will carve it to get accurate finished product.If your machine only has one spindle,we need to change bit by hand after milling,so it is a waste of time and complicated.

Quantity:
  • ERM1325A2
  • Eastrise

China 1325 Two-process Cnc Router Table for Sale

cnc router table (1)

Description of Two Process 1325 Cnc Router

ERM1325A2 cnc router has two heads,which work one by one.For example,when we finish carving with one head,the other head will cut down your design automaticaly to save time of changing tool,then we can get high working efficiency.

Applicable materails of 1325 Two Process Cnc Router

Mainly used for wood products,can also process PVC,soft metal,alucobond cutting,plastic,acrylic...

cnc router

Advantage of 1325 ATC Cnc Router Table

1.Two spindles holds 2 different bits.One is for carving,the other one is for cutting.No need to change bits during working.

cnc router table (7)

2.Auto lubrication oil supply

cnc router table (8)

3.Positioning cylinder

cnc router table (9)

4.Oil distribution subdivision can send even oil to all motion parts

cnc router table (10)

5.Dust-proof protector for guide rail block

cnc router table (11)

Features of 1325 Two Process Cnc Router

1. Working area:1300*2500*200mm
2. 6KW air cooled spindle
3. Shanlong/DSP/Mach3/NK200 control system
5. Oil mist cooling sprayer for working on metal
6. Taiwan HINWIN linear guide rail
7. High-precision helical rack gear
8. T-slot and vacuum table
9. Stepper motors,servo is also available
10. BSET/Fuling/Delta inverter
PS : We can customize different size and different configurations for you.

Technical parameters

Model

                       ERM1325A2

Working size

1300*2500mm

Max feeding height

200mm(Customized)

Max traveling speed

6000-8000mm/min

Tool diameter

¢3.175、¢4 、¢6、¢8、¢12.7

Transmission

High precision Ball screw

Software environment

WindowsXP/7/8/10

Spindle power

3KW/4.5KW/5.5KW(Optional)

Power without spindle

5KW

Voltage

220V/380V

Recognizing language

G code(nc)、mmg、plt、eng、dxf

Spindle speed

6000-24000rpm/min

Control system

NK200/DSP/Mach3/Syntec

Machining

cnc router (1)

Testing

cnc router (3)

Certificate

cnc router (4)
