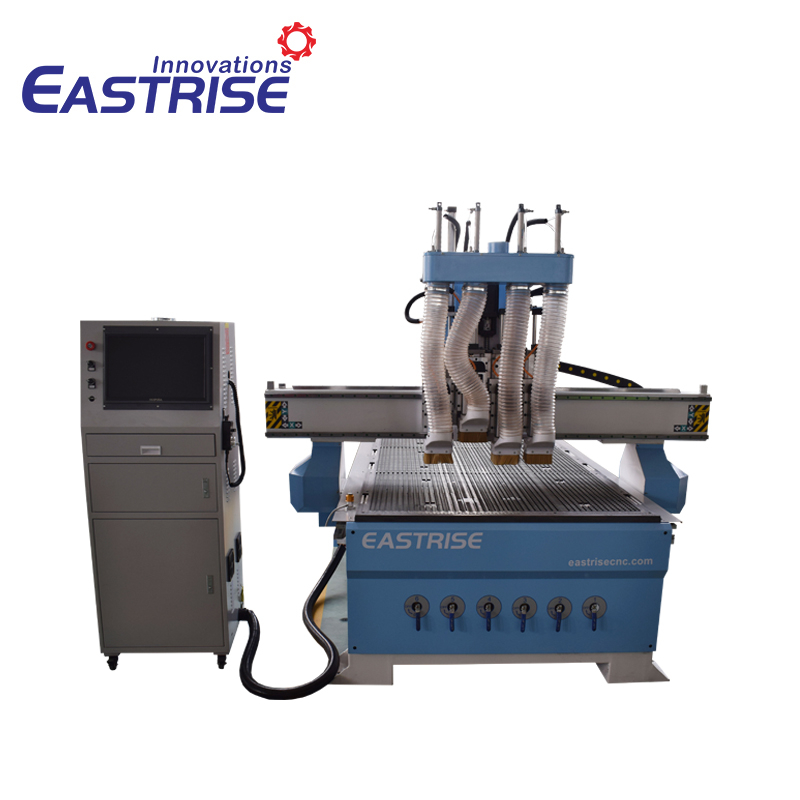

Cheap 1325 1300X2500mm 4'X8' ATC Cnc Router with 4 Spindles

5 0 Reviews

ERM1325A4 is a simple furniture wood router,which has 4 heads,so it can use 4 different bits automatically during working.

Quantity:
  • ERM1325A4
  • Eastrise

Cheap 1325 1300X2500mm 4'X8' ATC Cnc Router with 4 Spindles

China ATC cnc router

Descriptions of 1325 1530 Furniture Cnc Router

This cnc router table can change tool automatically,so we call it ATC cnc router.It is mainly used for making furniture,if you only do simple work like wood carft,you can consider our other models:mini cnc router,standard cnc router,stone cnc router,metal cnc router,multi-spindle cnc router...

Applicable materials of 1325 1300X2500mm 4'X8' ATC Cnc Router

ATC woodworking engraving machine is a specially designed for user who has high standard, high demand, high degree of automation.toward the CNC machine.Which is suitable for all kinds of solid wood, MDF, composite board, hard plastic, artificial marble, acrylic and other materials batch processing.

ATC cnc router

Advantage of 1325 1300X2500mm 4'X8' ATC Cnc Router

1.Controlled by a high-performance motor to ensure high speed and accuracy of the machine.

2.Perfect designer,choose the best machine accessories to minimize your preferred failure rate.

3.Specific memory to stop,electric interruption to continue to sculpt,forecast processing time and other functions to ensure random processing.

4.Heavy-duty machine structure is more than 1800kg,very strong and stable,no any vibration during high-speed working.

5.Y axis can move far enough to let worker clear the table easily.

6.Upload your design to the table with a USB drive.Automatic tooling changes let you swap out bits with computer-controlled precision.Sensor compensates for the change in tool lengths.That change might seem tiny,but it makes a huge difference to the finished product.

7.Powerful 7.5kw vacuum pump has enough vacuum pressure to hold the material during working.

Features of 1325 1300X2500mm 4'X8' ATC Cnc Router

4 spindles can change automatically for carving,cutting,drilling.No need to change bits manually.

economical ATC cnc router

Air cylinders can carry spindles to go up and down.

cheap ATC cnc router

Automatic oil pump can supply oil to rail and ball screws easily.

cnc router table

Top quality electric wires,very satble.

cheap ATC cnc router (10)

Technical parameters

Model

                       ERM1325A4

Working size

1300*2500mm

Max feeding height

200mm(Customized)

Max traveling speed

6000-8000mm/min

Tool diameter

¢3.175、¢4 、¢6、¢8、¢12.7

Transmission

High precision Ball screw

Software environment

WindowsXP/7/8/10

Spindle power

3KW/4.5KW/5.5KW(Optional)

Power without spindle

5KW

Voltage

220V/380V

Recognizing language

G code(nc)、mmg、plt、eng、dxf

Spindle speed

6000-24000rpm/min

Control system

Weihong/DSP/Mach3/Syntec

Machining

cnc router (1)

Testing

cnc router (3)

Certificate

cnc router (4)

Feedback from customer

cnc router feedback
