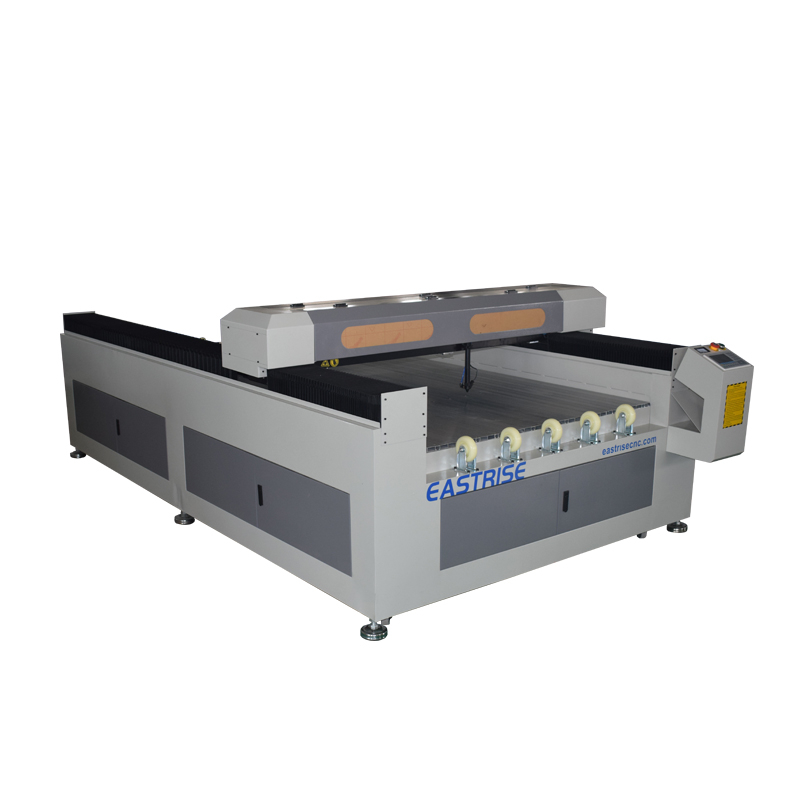

Feature of Cnc Laser Machine
1. Adopt DSP digital controlling technology,self-design laser power supply,incorporate designed frame and structure to guarantee stable work.
2.Auxiliary wheel
3.Long laser cutting head
4.Reci laser tube
Application of Laser Cutting Machine
co2 laser cutting machine is applied in garment,leather,cloth toys,computer embroidery cutting ,mould ,crafts,bamboo and wood,advertising and building decoration,packaging and printing,paper products,etc
Applicable materials:
Stone,tombstone,acrylic,plastic,wood,plywood,MDF,rubber,leather,cloth,woollens,crystal,tile,glass,bamboo,etc.
Technical parameters
Working Area | 1300mm*2500mm |
Software | RUIDA |
Controlling software | RD works |
Position System | Red dot |
Laser Power | 60W,80W,100W |
Working table | Auto feeding conveyor |
Image Format Supported | BMP,PLT,DST,AI,DXF,etc |
Cooling System | Circulation water cooling |
Power Supply | AC220±10%,50-60Hz,30A max |
Driving Motor | stepper motor |
Working Temperature | 0-45℃ |
Working Humidity | 5%-95% |
Engraving speed | 0-800mm/s |
Cutting speed | 0-600mm/s |
Machining
Exhibition
Certificate
