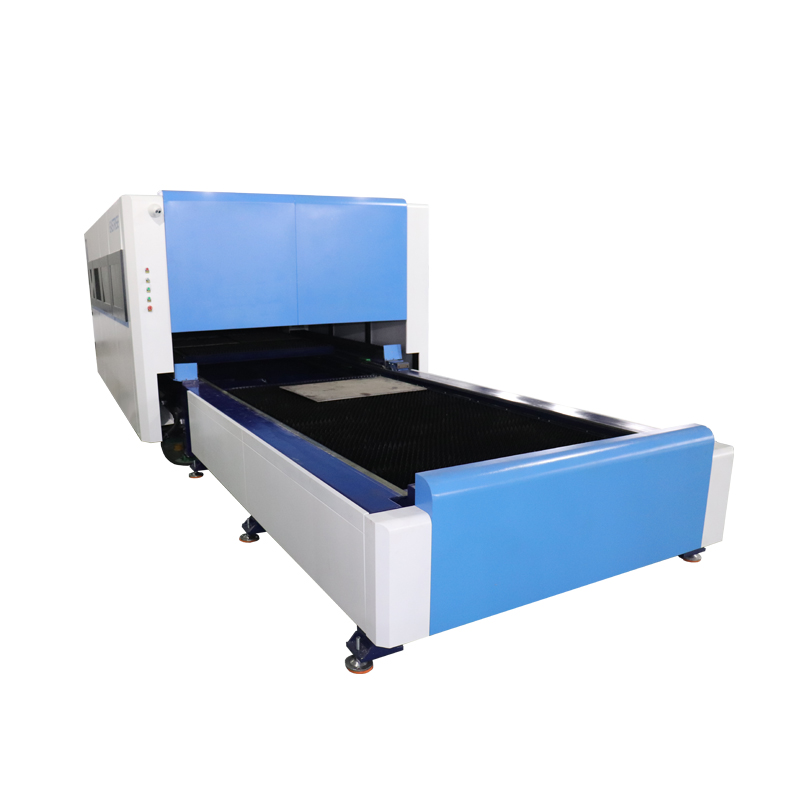

WHOLE COVER FIBER LASER CUTTING MACHINE

5 0 Reviews

We has more than 100 machine models, including Co2 Laser Cutting Machine for Nonmetal,Co2 Laser Cutting Machine for Metal and Nonmetal,Co2 Laser Engraving Machine,Laser Marking Machine,Fiber Laser Cutting Machine,CNC Router and so on.  These equipment have been widely used in advertising industry,crafts industry,packaging industry,auto accessories industry,kitchen industry,furniture

Quantity:
  • ER-3015A
  • Eastrise

WHOLE COVER FIBER LASER CUTTING MACHINE

metal cutting machine (4)

Safety and No Pollution

1.With a fully enclosed design;

2.The observation window adopts an European CE Standard laser protective glass;

3.The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;

The weight of machine is 7500kg.

fiber laser cutting machine

Exchanging Platform


1.The converter is responsible for controlling the exchanging motor;

2.The machine is able to finish the platform exchanging within 15s.

3.It adopts an up and down exchange platform;


The Third Generation Aviation Aluminum Gantry

metal cutting machine (1)

3rd Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

fiber laser cutting

metal cutting machine (2)

The Segmented Rectangular Tube Welded Bed

1.The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

2.High strength, stability, tensile strength, ensuring 20 years of use without distortion;

3.Thickness of rectangular pipe wall is 10mm and weights 4500 kg.

metal cutting machine (5)

Without manual operation, it can focus automatically

Without manual focusing

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

Bigger adjustment range

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

Long service life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Transmission and Precision

Germany German Tech Quality

Eastrise fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and German Neugart reducer. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to 10 years.

metal cutting machine (3)


Technical parameters

Working Area

1500*3000mm

Laser Power

1000W/2000W/3000W/4000W/6000W/8000W

Dimension

8150*2825*2125mm

Working Table

Saw tooth

Position Accuracy

±0.02mm/m

Maximum Speed

120m/min

Working Voltage

380V/50Hz, three phase

Max. acceleration

1.5G
