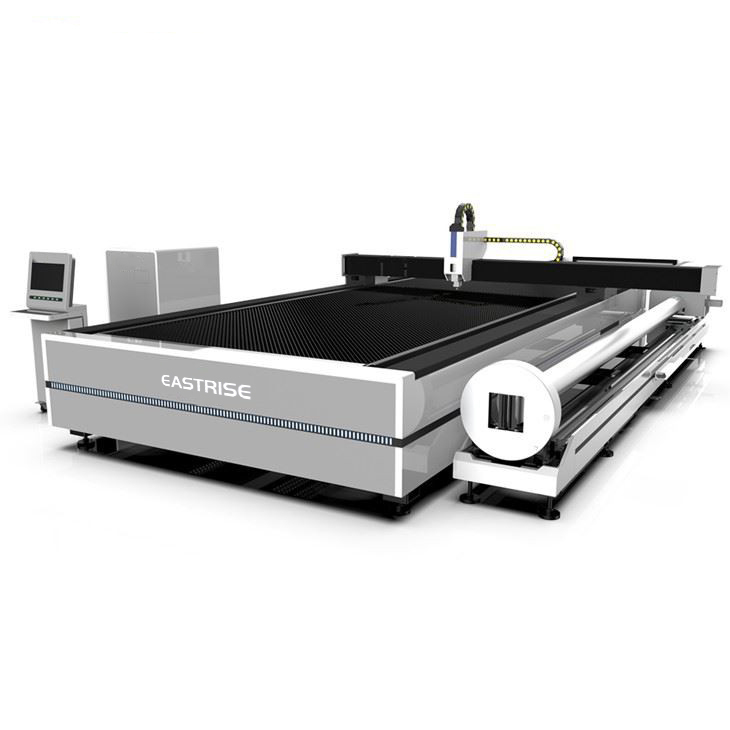

Fiber Laser Cutting Machine for Flat Metal Sheet And Metal Tube/pipe

Metal sheet and pipes fiber laser cutter is designed for cutting not only metal sheets and metal plates with different thickness, but also metal pipes and metal tubes to defferent shapes.

Quantity:
  • ER-3015R
  • Eastrise

Fiber Laser Cutting Machine for Flat Metal Sheet And Metal Tube/pipe

metal cutting machine

Advantage of metal sheet and pipes laser cutter

1.Fiber Laser cutter with tube cutting and metal sheet cutting process combination save cost and space.

2.A “clean cut” surface quality is obtained.

3.Reflective materials like aluminium,copper and brass can be cut with ease.

4.Available for different diameter and length tubes from 20mm-200mm.

5.Little to maintenance costs.

6.Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and protection glasses over long periods. There are no other consumable costs.

7.The lifetime is over 100,000 working hours.

Features of Multi-purpose metal sheet and pipes fiber laser cutter

1.High rigidity machine bed sequence welding, adopts exclusive annealing processing with high-temperature NC electric resistance furnace, ensure long-time stable working of the machine.

fiber laser cutter

2.Electric-drive motor in rotary device adjust speed freely. Easy-work, lower noisy, high rotary speed, high accuracy.

fiber laser cutting machine

rotary 3d fiber laser metal cutter machine laser

A : Characteristics

1.Stability and reliability of light path system and control system

2.Imported original fiber lasers,high and stable function,lifespan is over 100000 hours

3.Higher cutting quality and efficiency ,cutting speed is up to 40m/min with appearance and beautiful cutting edge

4.Germany high performance reducer,gear and rack;Japanese guide and ball screw.

B : Application industry :
metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, agriculture and forestry machinery, elevator manufacture, special vehicles, household appliances, tools, processing, IT manufacturing, oil machinery, food machinery, diamond tools, welding, welding gear, metal materials, decoration advertising, laser surface treatment of foreign processing services, such as all kinds of machinery processing industry.

C : Application Materials

Professional used to cut sheet metal,like carbon steel sheet,stainless steel plate, aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminium zinc plate and other metal

fiber laser cutter (7)

fiber laser cutting machine (4)

Advantages of our fiber laser cutting machine:

1 Fast speed:

40m/min, two driver, synchronous high speed move;

2 Leapfrog cutting:

Improve the cutting speed, processing efficiency and accuracy;

3 Scan cutting :

Short distance cutting without head lifting,

4 Cutting and marking functions:

Power can be controlled set with two layers, one cut and another mark, you can cut and mark together on one metal part;

5 Automatic search edge function:

If metal sheet put slanting , machine can auto detect, and auto adjust cutting, less waste and no need to replace material;

6 Power off cutting memory:

When suddenly power off, software has memory of cut stop point, after power on, you can start cutting from the break point;

7 Install Proportional Valve:

Use software to change the air and control the air pressure automatically, no need to change the air manually, it can save you much time;

8 Stable working table:

Use 16mm thick steel side board, around 5 tons in weight;

Dual drive, aging treatment, stress relief test to ensure long time fast running without changing shape;

9 Air condition for control cabinet

cooling for Electronic parts and Laser Power Supply, make sure control cabinet temperature at 26℃,extend the life of electronic devices and save the power for the factory.

10 High electrical-optical conversion efficiency

Fiber laser can convert up to 30 % electrical energy into laser energy. High energy conversion makes fiber laser more energy efficient.

Technical parameters

Working Area

1300*2500mm/1500*3000mm

Rotation working size

diameter 200mm(200*200mm),length 6000mm

Laser Wave Length

1064nm

Working Table

Saw tooth

Position Accuracy

±0.03mm/m

Maximum Speed

60m/min

Minimum Line Width

± 0.02mm

Control System

Cypcut

Position Type

red dot

Power Consumption

≤12KW

Working Voltage

380V/220V

Auxiliary Gas

oxygen,nitrogen,air

Working life of fiber module

More than 100000 hours

Fiber laser cutting head

Raytools

Focus lens

Raytools

Driver system

Yaskawa servo+FASTON reducer

Liner guider system

HIWIN linear guide made in Taiwan ,

Transmit system

Dual Rack & Pinion type

Rack system

Herion made in Germany

Chain system

Igus made in Germany

Warranty time

Whole machine for 3 years (fiber module 2 years )

Gross weight

5000kg
