Analysis and solution of common faults in engraving machine operation

Views: 1     Author: Site Editor     Publish Time: 2022-03-14      Origin: Site

Analysis and solution of common faults in engraving machine operation

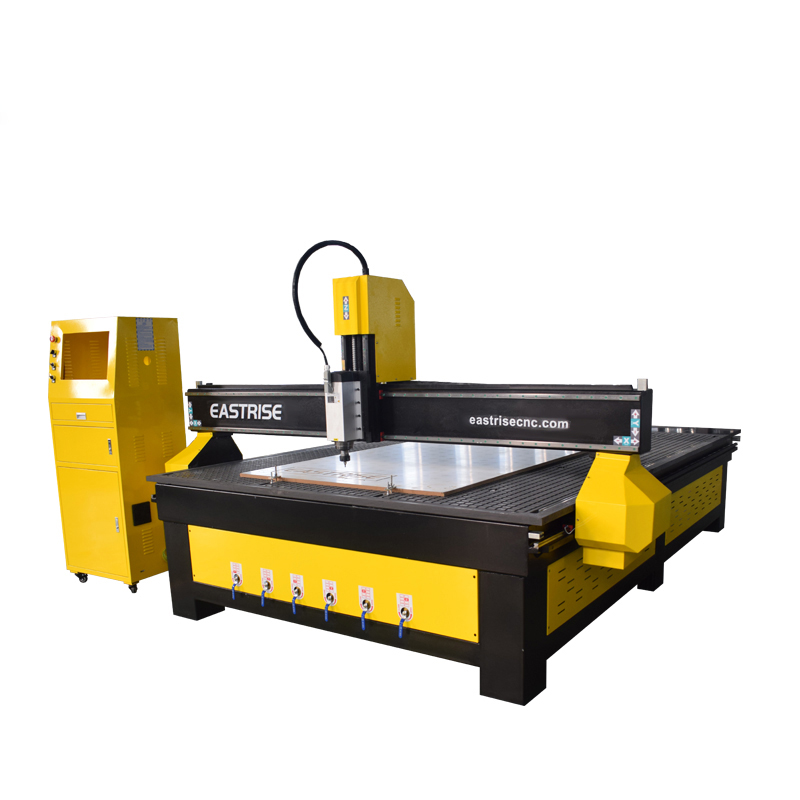

cnc router table (1)


One or three axes of the engraving machine do not move or move abnormally

1: The control card is loose or faulty.

2: The driver of the corresponding axis is faulty.

3: The corresponding axis stepping motor is faulty.

4: The corresponding coupling is disconnected or loose.

5: The corresponding lead screw is broken or the lead screw nut is faulty.

6: The sliding speed of the corresponding axis is faulty.

7: The driver subdivision, current, and settings in the software are not the same.


 The z-axis of the engraving machine is out of control

1: The control card is loose or faulty.

2: Static interference.

3: z-axis motor cable fault

4: The file path is wrong

5: Inverter interference

6: There is a problem with the computer system or there is a virus

7: Operation error


 Error

1: The control card is loose or faulty

2: Drive failure

3: Stepper motor failure

4: Static interference

5: Motor cable failure

6: Data line failure

7: The path is wrong

8: The coupling is broken or loose

9: The processing speed is too fast

10: Computer system problems or viruses


 different depths of carving

1: The control card is loose or faulty

2: Step motor failure

3: Drive failure or current subdivision is inconsistent with software settings

4: Z-axis motor line failure

5: Spindle motor failure

6: Inverter interference or wrong data setting

7: Static interference

8: Computer virus or system problem


random engraving

1: Control card failure

2: Inverter interference

3: The file path is wrong

4: Static interference
