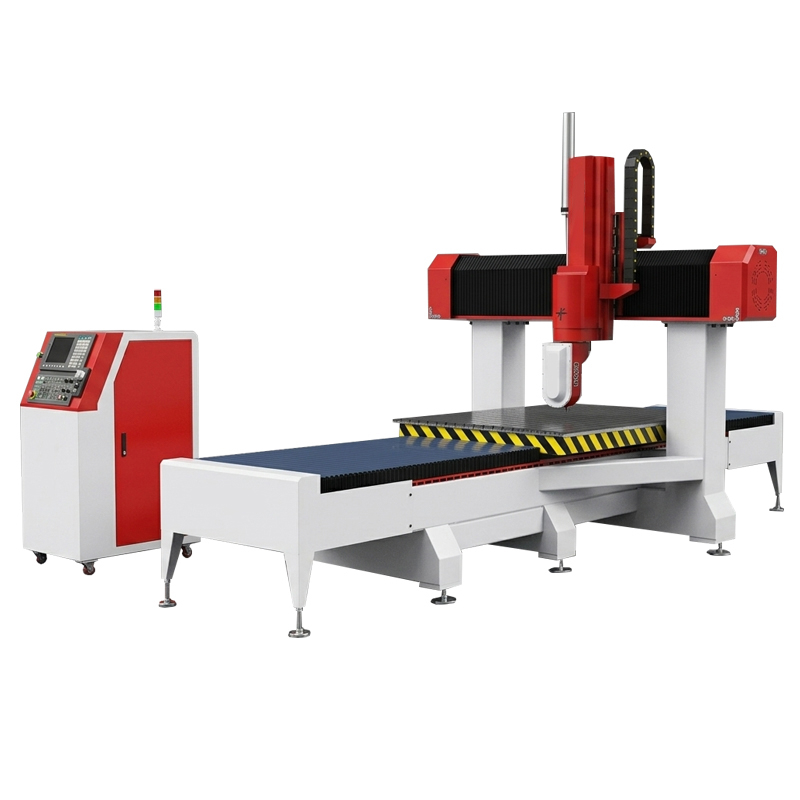

1325 5-axis ATC Cnc Router

5 0 Reviews

This is a 5-axis CNC router specially designed for non-metal materials, mainly wood and foam. With 5-axis linkage and a rotary axis, it can carve complex 3D shapes, curved surfaces and sculptures in one clamping, covering round carving, pillar and column work, relief and various artistic statues. Ideal for wooden handicrafts, furniture components, foam molds and display models.

Availability:

Quantity:



Inquire Add to Basket

Model:
ERM1325C 5AXIS
Brand:
Eastrise

Product Description

Application

Wood carving and sculpture
Foam mold making
EPS foam cutting
3D statue carving
Column and relief carving
Furniture surface processing
Handicraft production
Decorative component manufacturing
Wood mold processing
Display model making

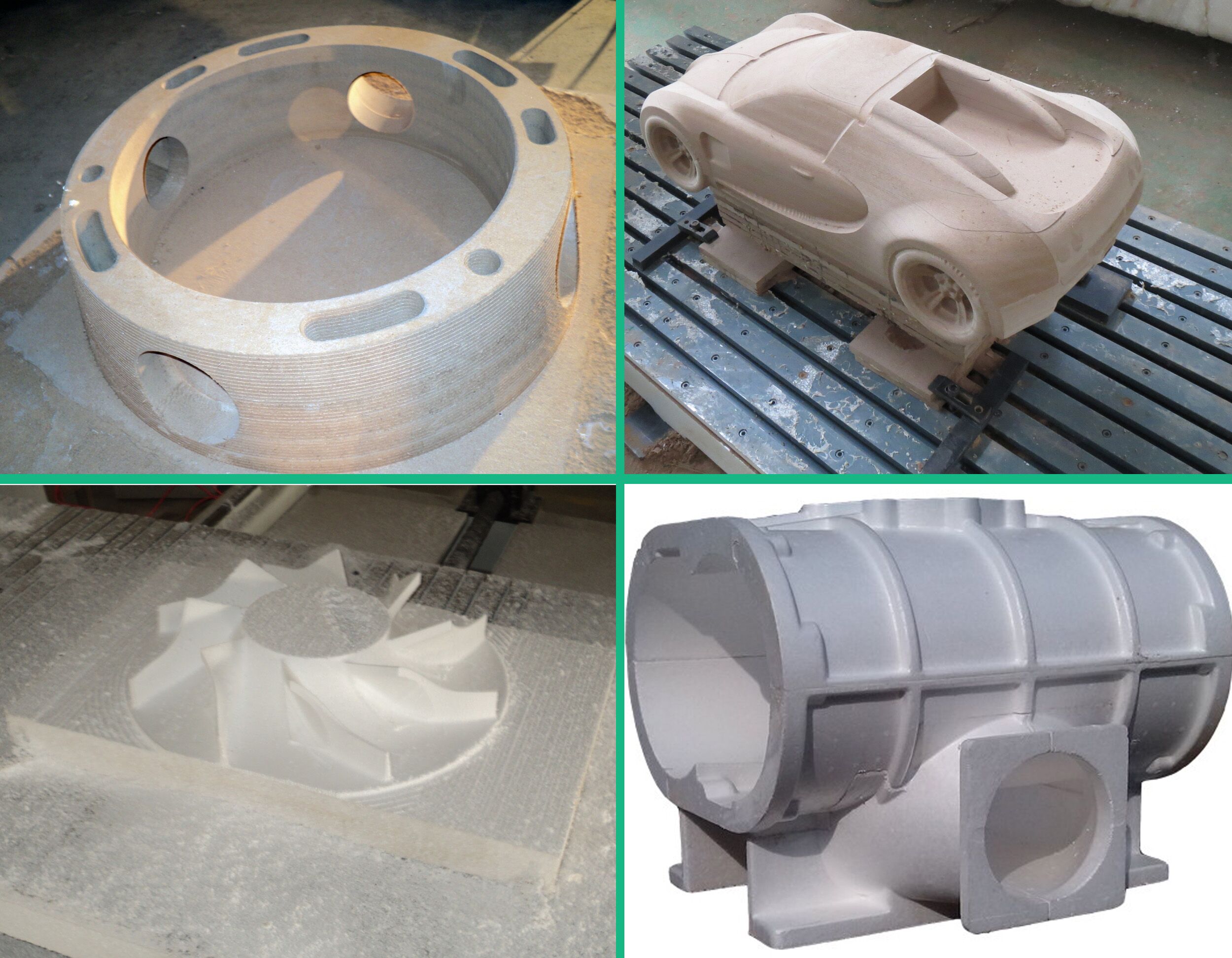

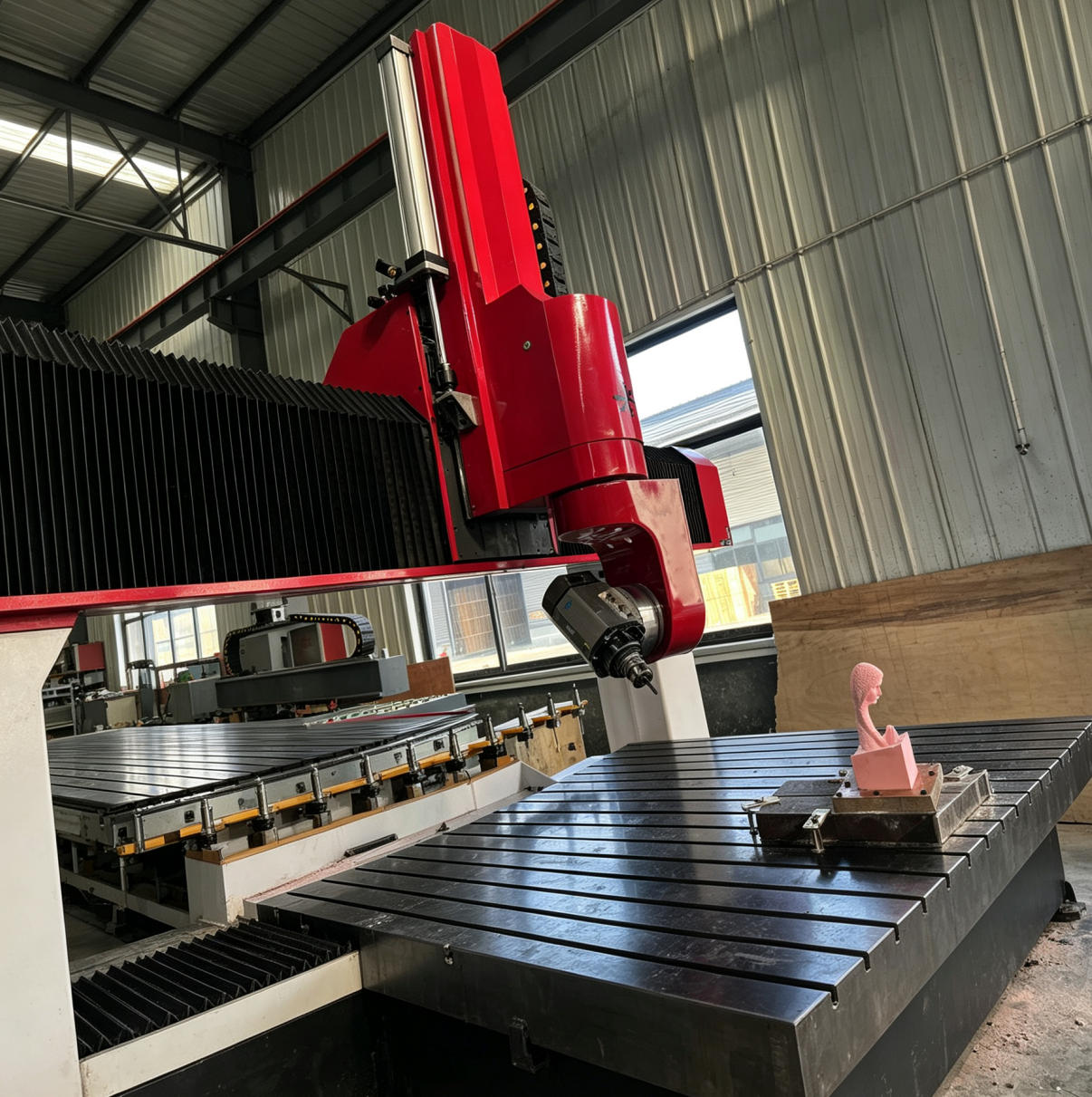

5 axis cnc for EPS foam cutting

Advantages

5-axis linkage for complex 3D processing
One-time clamping reduces workpiece alignment
High precision for detailed carving
Suitable for wood, foam and similar non-metals
Rotary axis supports round carving work
Heavy-duty structure ensures stable processing
High efficiency for batch production
Good surface finish after machining
Flexible programming for complex shapes
Strong adaptability to different craft requirements

Technical Index

Model	ERM1325 5axis
Maximum working size	X Axis:2500mm
	Y Axis : 1300mm
	Z Axis:1000mm
	A Axis: ±120°
	C Axis: ±213°
Maximum work-piece size	X Axis: 2500mm
	Y Axis: 1300mm
	Z Axis: 1000mm (depending on tool length)
	A Axis: ±120°
	C Axis: ±213°
Table Size	250x130mm
Table structure	Cast Steel Movable Table
X,Z Structure	Hiwin Guide rail: X 30, Z 25 Germany-made rolling ball screw
Spindle	9kw, HQD spindle, air-cooled
Magazine	Linear type ATC (with 8 tools)
Auto-Tool changers	8pcs Automatic tool changers
Diameter of Cutter	φ3.175-φ12.7
Spindle Speed	22000r/min, variable speed
Working Voltage	AC220V/60Hz 3-phase or AC380V 60HZ 3-phase
Motor and driver	leadshine
Inverter	Fuling inverter
Command	G code
Controller	LNC
Software	Powermill/UG
Dust-collect function	No
Working table	T-slot table and aluminium table coated with pvc
Net weight	3400kg
Gross weight	4000kg
