CO2 Laser Cutting Machine for Acrylic: Benefits, Applications & Buying Guide
Acrylic is widely used in advertising, signage, interior decoration, retail displays, and customized products. Its attractive appearance, durability, and versatility make it an excellent material for both commercial and creative applications.
However, achieving smooth edges, intricate patterns, and consistent cutting quality can be challenging with traditional cutting methods.
A CO2 laser cutting machine for acrylic offers an efficient and precise solution. Whether you manufacture illuminated signs, acrylic display stands, decorative panels, or personalized gifts, laser cutting technology can help improve product quality and production efficiency.
In this guide, we explore how CO2 laser cutting works, its advantages, popular applications, and the key factors to consider when choosing the right machine.
1. How Does a CO2 Laser Cutting Machine Work?
A CO2 laser cutting machine uses a focused infrared laser beam, typically with a wavelength of approximately 10.6 μm, to cut or engrave materials such as acrylic, wood, leather, and certain plastics.
During acrylic cutting, the laser beam heats and vaporizes material along the programmed cutting path. A computer-controlled motion system guides the laser head to produce the desired shapes and patterns.
Because the process is non-contact, there is no mechanical cutting force applied by a blade or router bit.
CO2 laser cutting machines are particularly suitable for acrylic processing because acrylic absorbs CO2 laser energy effectively.
With appropriate settings, the machine can produce smooth, polished-looking edges on many types of cast and extruded acrylic.
2. Key Advantages of CO2 Laser Cutting Machines for Acrylic
2.1 High Precision for Intricate Designs
One of the greatest advantages of CO2 laser cutting is its ability to create detailed patterns and complex shapes.
Compared with conventional mechanical cutting methods, laser cutting can produce narrow kerfs and intricate contours without physical contact between the cutting tool and the material.
This makes it suitable for:
Decorative acrylic panels
Intricate letters and logos
Customized acrylic ornaments
Architectural models
Personalized gifts and accessories
Actual cutting accuracy depends on the machine configuration, material quality, and processing parameters.
2.2 Smooth and Attractive Cutting Edges
Edge quality is especially important when manufacturing transparent acrylic products.
With properly optimized laser power, cutting speed, and focus, a CO2 laser cutter can produce smooth edges that often require little or no additional polishing.
This is particularly beneficial for acrylic signs, display stands, and decorative products where appearance is essential.
However, edge quality varies depending on acrylic type, thickness, and cutting conditions.
2.3 High Production Efficiency
Acrylic laser cutting machines can reduce the need for manual cutting, drilling, and secondary finishing operations.
Once the cutting design and parameters are prepared, the machine can repeatedly process identical patterns with consistent results.
This makes CO2 laser cutting suitable for both customized orders and batch production.
Manufacturers can also arrange multiple parts within a single acrylic sheet to improve material utilization.
2.4 Flexible Cutting and Engraving Capabilities
A CO2 laser machine can perform both cutting and surface engraving, depending on its configuration.
For example, manufacturers can cut an acrylic sign to its final shape and engrave text or graphics onto its surface using the same machine.
This flexibility is valuable for businesses producing customized advertising products, gifts, and decorative items.
2.5 Reduced Mechanical Tool Wear
Unlike CNC routers, laser cutting machines do not require physical cutting tools to contact the acrylic.
This eliminates mechanical cutting-tool wear during the laser process and reduces the risk of workpiece movement caused by cutting forces.
However, CO2 laser machines still require regular maintenance of components such as mirrors, lenses, cooling systems, and exhaust equipment.
3. Popular Applications of Acrylic Laser Cutting Machines
CO2 laser cutting machines are widely used in industries that require attractive, accurately shaped acrylic products.

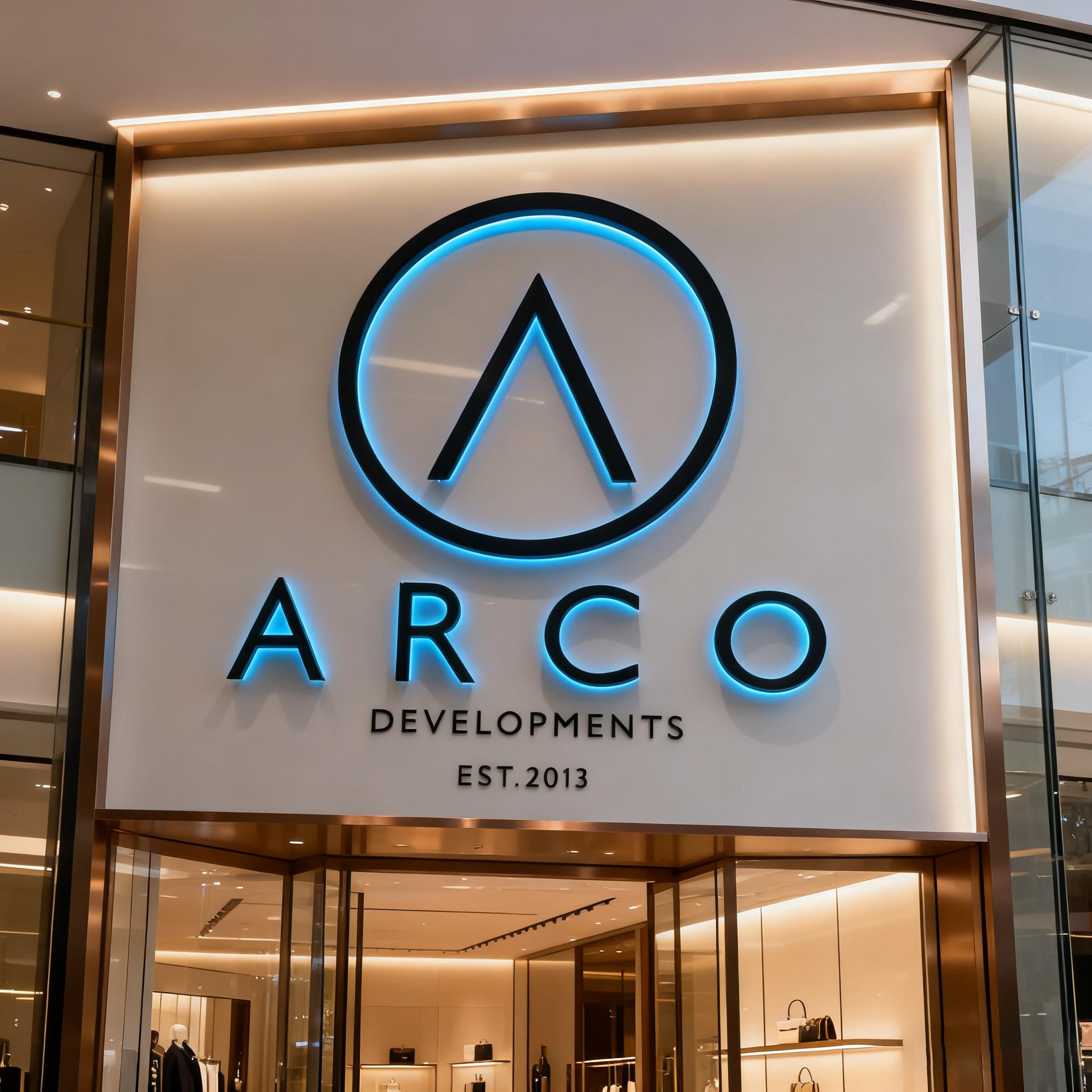

3.1 Advertising Signs and Lettering
Acrylic is one of the most popular materials in the advertising industry.
Laser cutting machines can produce:
Acrylic letters and logos
Illuminated signage components
Storefront signs
Advertising display panels
Custom business signs
Precise cutting helps manufacturers create professional-looking signage with detailed shapes and clean edges.

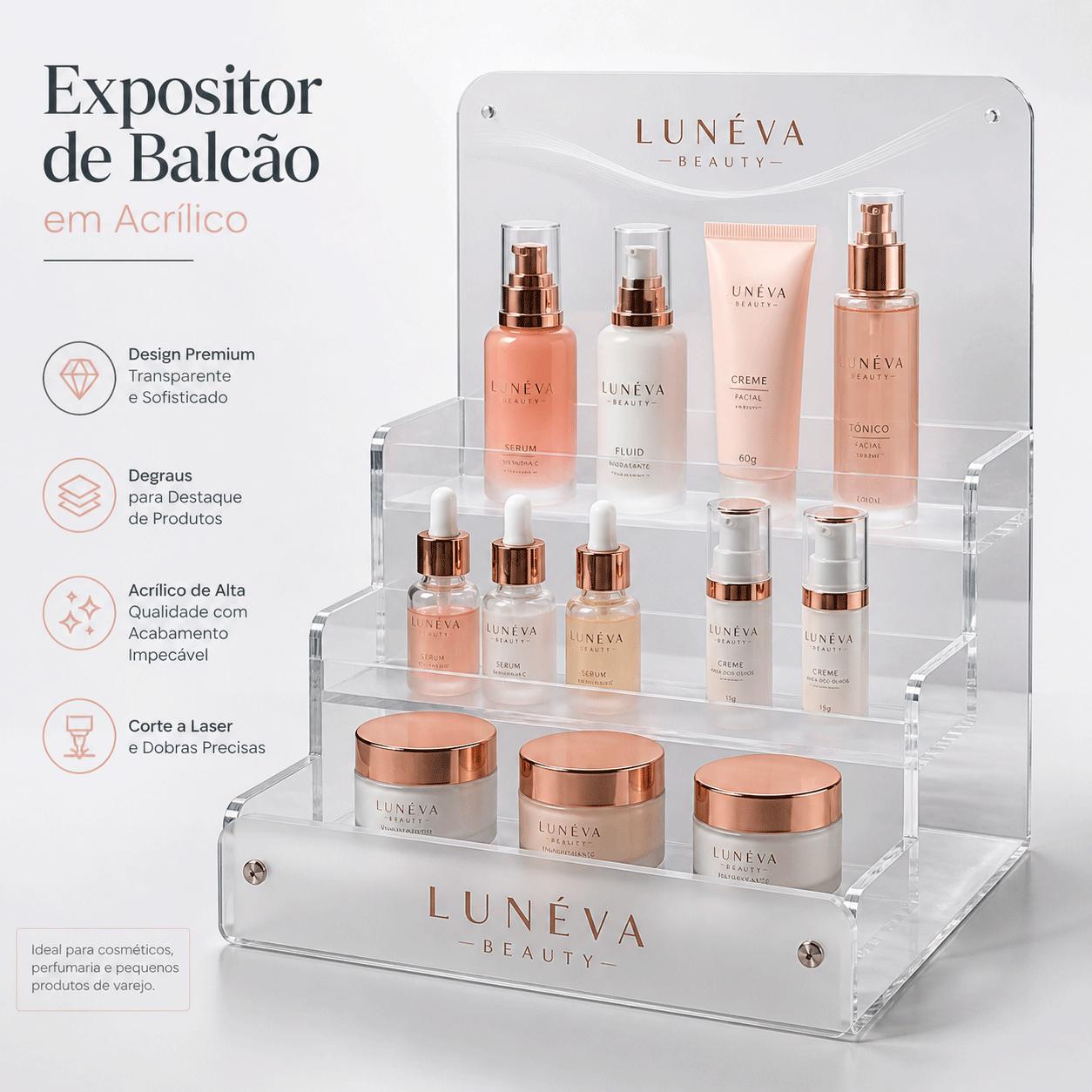

3.2 Acrylic Display Stands
Retail stores, exhibitions, and commercial showrooms frequently use acrylic display products.
A CO2 laser cutter can manufacture components for:
Laser cutting allows manufacturers to produce customized shapes for different products and display requirements.

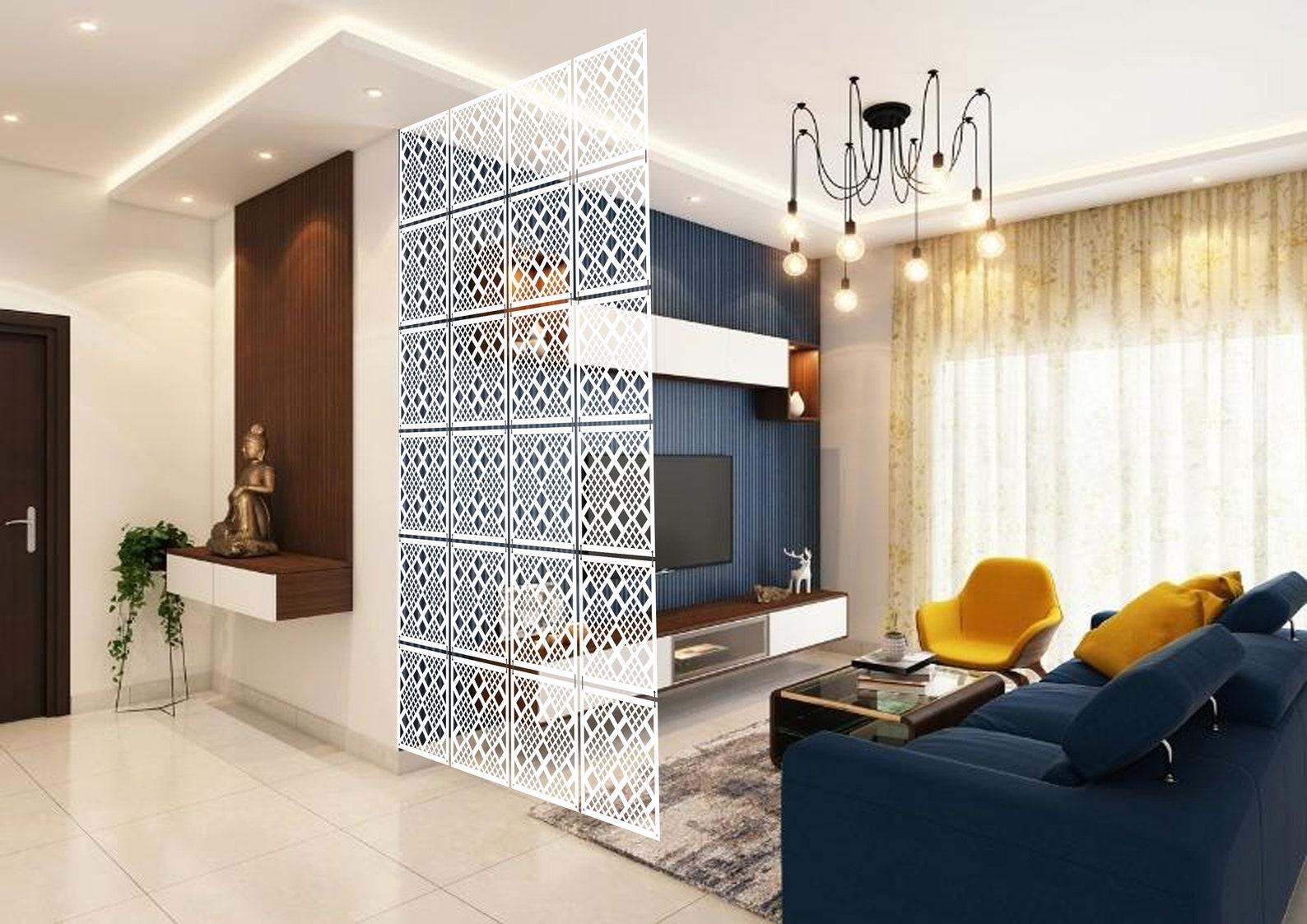

3.3 Interior Decoration and Architectural Models
Acrylic is increasingly used in modern interior design because of its versatility and attractive appearance.
CO2 laser cutting technology enables designers to manufacture decorative panels, patterned partitions, customized ornaments, and architectural models.
Complex geometric patterns can be produced directly from digital designs, providing greater flexibility for customized projects.

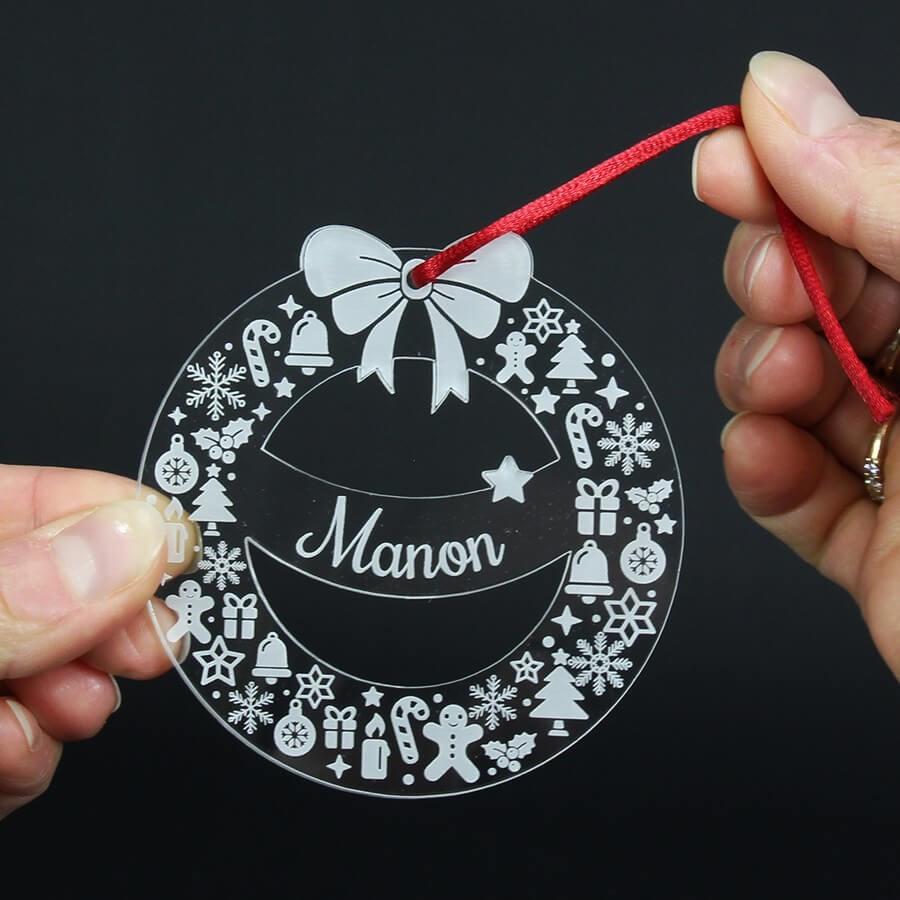

3.4 Personalized Gifts and Crafts
CO2 laser cutting and engraving machines are also suitable for businesses producing personalized acrylic products.
Common applications include:
This makes acrylic laser cutting a practical solution for small businesses and manufacturers offering personalized products.
4. What Thickness of Acrylic Can a CO2 Laser Cutter Cut?
The maximum acrylic cutting thickness depends on several factors, including:
Laser power
Acrylic type and composition
Laser beam quality and focus
Cutting speed
Airflow and exhaust conditions
Required edge quality
Higher laser power generally allows thicker acrylic to be cut, but laser power alone does not determine cutting performance.
For example, a machine that can separate a thick acrylic sheet may not necessarily achieve the edge quality required for premium transparent display products.
Before purchasing a CO2 laser cutting machine, customers should provide the material type, maximum thickness, and expected production requirements.
A sample cutting test is recommended to confirm whether a particular machine can achieve the desired results.
5. How to Choose the Right Acrylic Laser Cutting Machine
Choosing the right equipment is essential for achieving consistent cutting quality and efficient production.
5.1 Laser Power
Laser power should be selected according to the thickness and type of acrylic being processed.
Thicker materials and higher production requirements may require more powerful laser systems.
However, selecting unnecessarily high laser power can increase equipment costs without providing proportional benefits for thin acrylic applications.
5.2 Working Area
The machine's working area should accommodate the maximum dimensions of the acrylic sheets or finished products.
For example, manufacturers processing large advertising signs may require a larger cutting table than businesses producing small acrylic gifts.
5.3 Cutting Accuracy and Motion System
A stable machine structure and reliable motion control system are important for maintaining cutting quality.
When evaluating equipment, customers should consider positioning performance, cutting consistency, and the machine's ability to process complex designs.
5.4 Cooling and Exhaust Systems
CO2 laser cutting machines require suitable cooling and ventilation systems.
Laser cutting acrylic generates fumes and vapors that must be properly extracted and managed.
An appropriate exhaust and filtration system helps maintain a safer working environment and protects machine components.
5.5 Software Compatibility
A suitable laser cutting machine should support the customer's design and production workflow.
Before purchasing, confirm compatibility with commonly used design files and the machine's supported control software.
This helps reduce preparation time and makes it easier to transfer designs into production.
6. CO2 Laser Cutting vs. CNC Routing for Acrylic
Both CO2 laser cutting machines and CNC routers can process acrylic, but they offer different advantages.
CO2 Laser Cutting Machines
Suitable for intricate 2D patterns
Can produce smooth, polished-looking edges
No mechanical cutting force
Suitable for fine lettering and decorative designs
Capable of surface engraving
CNC Routers
Suitable for cutting and milling thicker materials
Can produce grooves, pockets, and three-dimensional features
Offer flexible mechanical machining capabilities
Can process a wide variety of materials using appropriate tools
For businesses primarily producing intricate acrylic signs, decorative patterns, and customized acrylic products, a CO2 laser cutting machine is often an excellent choice.
For applications requiring deep milling, pockets, or complex three-dimensional machining, a CNC router may be more appropriate.
7. Why Choose Eastrise CNC for Acrylic Laser Cutting?
At Eastrise CNC, we understand that different manufacturers have different processing requirements.
Whether you are producing acrylic signs, display products, decorative panels, or customized gifts, choosing a suitable laser cutting machine is important for your business.
Our team can help you evaluate machine configurations based on your material thickness, working area, and production requirements.
We encourage customers to share their sample designs and processing specifications so that suitable equipment options can be discussed.
Conclusion
A CO2 laser cutting machine for acrylic is a versatile solution for manufacturers seeking precise cutting, attractive edges, and flexible production capabilities.
From advertising signs and retail displays to interior decoration and personalized products, CO2 laser technology provides opportunities for both small businesses and industrial manufacturers.
However, achieving excellent cutting results requires more than simply choosing a powerful laser. Material characteristics, machine configuration, cutting parameters, and proper ventilation all play important roles.
