CO2 Laser Cutting Machine Auto Feed Large Format CCD Camera Vision CNC For Fabric Textile

5 0 Reviews
co2 laser cutting machine is equiped with co2 laser tube, can be used for cutting nonmetal materials such as acrylic,plastic,paper,wood,plywood,MDF,fabric,leather,etc;and can engrave on nonmetal materials such as stone ,glass,acrylic,wood,bamboo,rubber,leather,etc.
Availability:
Quantity:
  • ERJ1620 CCD

  • Eastrise

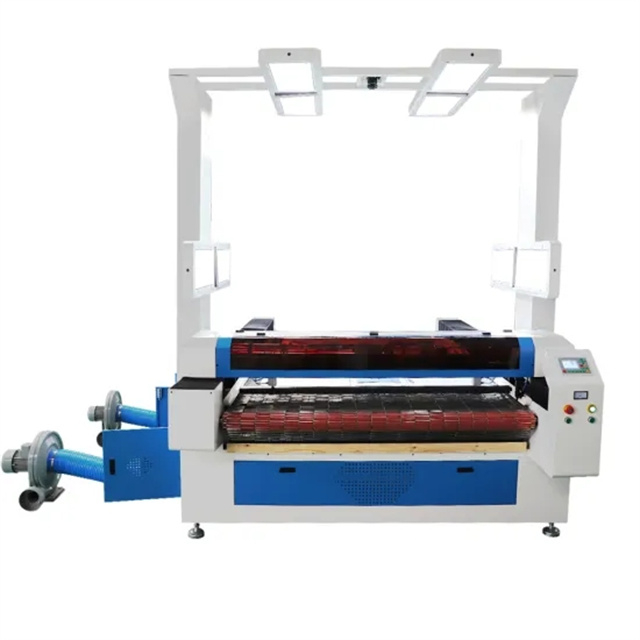

CO2 Laser Cutting Machine Auto Feed Large Format CCD Camera Vision CNC For Fabric Textile

1620-Large-Scanning-Size-CCD-Camera-Conyor-Table-Auto-Feeding-Cloth-Fabric-Laser-Cutting-Machine

Feature of 1620 CCD Laser Cutting machine

1. Adopt advanced recognition systems, through visual identification system putting the images into computer, identify automatically and located cutting correctly and fast, greatly reduces the material and the waste of time.

2. Fast continuous cutting function based on the powerful date processing ability of high-end DSP technology, professional camera recognition software, and the coordination between precision mechanical components, guaranteed the procision, high speed cutting.

3. Fast curvilinear cutting function, it can cut via any curve fast continuous cutting, the laser heads move in beautiful arc just evoke industry needs.

4. To fully support design software, such as CAD, CORELDRAW, PHOTOSHOP, friendly man-machine interface, live close to the industry needs.


Application of 1620 CCD Laser Cuttingmachine

It is used in the industries, such as large area digital printing, embroidering, car seat cushion, cloth toy, umbrella, wedding dress, model, handicraft, advertisement decoration, packing and printing, garment, leather, electronics, paper product, etc.

Applicable materials:

Non-metallic materials, such as wooden ware, paper, leather, cloth, organic glass, epoxy resin, acrylic, woolens, plastic, etc.

Technical parameters

Working Area

1600mm*2000mm

Software

RUIDA

Controlling software

RD works

Position System

Red dot

Laser Power

80W,100W,130W,150W

Working table

Auto feeding conveyor

Image Format Supported

BMP,PLT,DST,AI,DXF,etc

Cooling System

Circulation water cooling

Power Supply

AC220±10%,50-60Hz,30A max

Driving Motor

stepper motor

Working Temperature

0-45℃

Working Humidity

5%-95%

Engraving speed

0-800mm/s

Cutting speed

0-600mm/s


Exhibition

laser machine


Certificate

cnc router (4)
