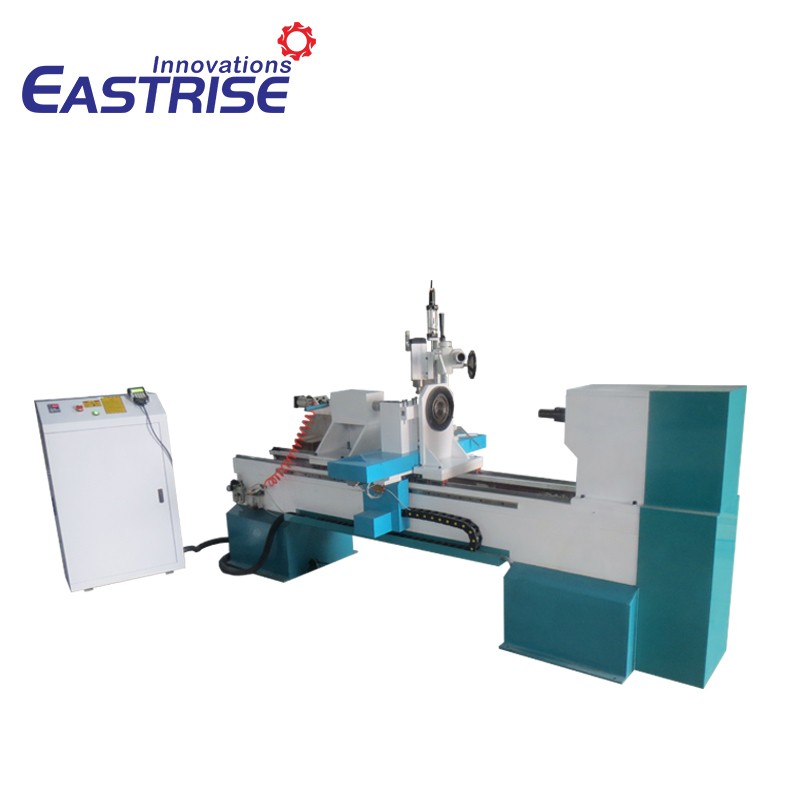

3-Axis 4-Axis Single-Tool Holder CNC Wood Turning Lathe Machine with Vertical Spindle

5 0 Reviews

3 axis CNC wood turning lathe with vertical carving spindle can lathe round and square wood column,and it can also carve relief on column's surface.4 axis CNC wood turning lathe with engraving spindle can do all the work of 3 axis wood lathe,and it can also carve relief on the flat surface of wood column.

Quantity:
  • ERL-3015-1V
  • Eastrise

Single Spindle Double Cutters CNC Woodworking Lathe Machine (1)

Advantage

1. You can mount on material to two chucks and compelete the work piece simultaneously. One operator could run 2-3 pcs of cnc wood lathe at the same time for saving salary cost.

2. Most Advanced Material Loading Skill: When you load workpiece to cnc wood lathe, you do not have to fix workpiece on the chuck, then get the other edge of workpiece to find the center. And we load the workpiece to machine, machine 4 points could help to find the center. And it only takes 3 seconds for whole material loading material, with higher precision then auto loading. When you process larger diameter vase, you could use auto cutter and adjustable air-cylinder, this improve the workpiece surface finish and last the cutter life time. The center supporter fix workpiece center when it is under the condition of self weight. This workpiece center fixing way is with higher precision.

3. Easy Programming. Usually, programing is the important step before working, and this is also a time-spending work. cnc wood lathe program assit you to reduce this time and improve working efficiency for more benefit. programing could be processed with photo. When photo is taken then scan, then could get into programming automatically. And you can measure and change size in the PC directly.

Single Spindle Double Cutters CNC Woodworking Lathe Machine (5)

Application

Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, various staircase column, stairway balusters, stairway newel posts, dining table legs, end table legs, sofa table legs, bar stool legs,Roman column, general column, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts;baseball bats and so on.etc

3-axis Wood Lathe Samples

wood lathe machine (1)

4-axis Wood Lathe Samples(it can extra engrave flat surface)

wood lathe machine (2)

Technical parameters

LATHE MODEL

ERL-3015-1V

Max Processing Size

Length 1500,diameter 300mm

Spindle Power

5kw

Quantity of Tools

1

Max Feed Speed

35mm/s

Spindle Speed

0-3500rpm

Accuracy

0.001mm

Control System

DSP/GXK

Support Command

International  G Code

Voltage

380V/220V

Machine Dimension

2750x1400x1500mm

Weight

1500kgs

Machining

cnc router (1)

Testing

cnc router (3)

Exhibition

laser machine


Certificate

cnc router (4)
