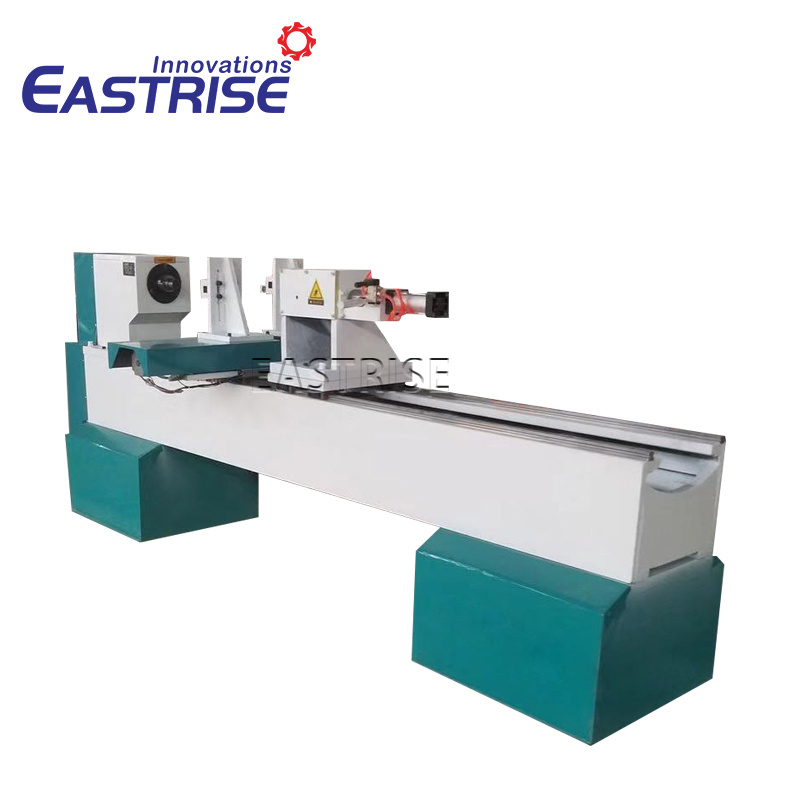

2-Axis Stair Column CNC Wood Turning Lathe

5 0 Reviews

CNC wood turning is a form of CNC woodworking that is used to create wooden objects on a lathe. CNC wood turning is different from most other forms of CNC woodworking in that the wood is moving while a stationary tool is used to cut and shape it. Many intricate shapes and designs can be made by CNC wood turning lathe machine. CNC wood turning lathe is a machine tool that rotates the workpiece on its axis to perform various operations such as cutting, sanding, knurling, drilling, or deformation, facing, turning, with tools that are applied to the workpiece to create an object with symmetry about an axis of rotation. CNC wood turning lathe is mainly used for various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase

Quantity:
  • ERL-3015-1
  • Eastrise

2-Axis Stair Column CNC Wood Turning Lathe

cnc wood turning lathe machine (1)

Advantages

1. Drive system: it adopts frequency conversion speed control system, can adjust the rotation speed at any time to solve the problem of material vibration.

2.The best wood lathe has 2 knives (the rough lathe and the fine lathe work synchronously with the layering process) and thus improve the efficiency and surface quality of the workpiece.

3.Better wood lathe spindle: we could install one spindle with two knives or PC cutter, one spindle could install the chuck, two knives could do rough turning and finishing turning at the same time for efficiency and high surface quality. (Double spindles stop producing again. In fact, the model is not suitable for turning wood products, it is very slow when turning a large column, and there are many disadvantages. Double spindle lathe design, such as grinding, centering, programming, structural stability upper spindle, etc.)

4. Imported linear square rails, ball screws and some electronic components, high precision and durability, 5.Performance: high precision stepping motor after software calculation guarantees the exact processing size.

6.Power section: Taiwan CSK high quality straight sliding rails and TBI precision ball screw effectively control the linear error.

7.High quality frequency converter with high stability.

8. Reliable with high stability to avoid jerking when the spindle rotates quickly or when machining a large workpiece, and the speed of the main spindle can be adjusted by the frequency converter.

9.Easy to operate: we can draw with Coredraw, Artcam, autoCAD and other software, as well as directly controlled by a CNC computer (industrial PC configuration) or transfer files to the machine via USB (DSP knob configuration).

cnc wood turning lathe machine (7)

Applications

CNC wood lathe ( CNC Lathe for making wooden stairs handrails / stairs column / stair wood balusters/ Chair leg)According the requirement and characteristics of woodworking industry, CNC woodworking lathe combining CNC and other mechanical technology, could process the complex shape of the wood rotary products or semifinished wood products. , such as staircase column,cylindrical, conical, curved, spherical etc. It is especially suitable for the mass production of small or medium-scale wood enterprises, set shape flexibly and changing processing style rapidly.

cnc wood turning lathe machine (8)

Technical parameters

LATHE MODEL

ERL-3015-1

Max Processing Size

Length 1500,diameter 300mm

Spindle Power

5kw

Quantity of Tools

1

Max Feed Speed

35mm/s

Spindle Speed

0-3500rpm

Accuracy

0.001mm

Control System

DSP/GXK

Support Command

G Code

Voltage

380V/50HC

Machine Dimension

2750x1400x1500mm

Weight

1500kgs

Machining

cnc router (1)

Testing

cnc router (3)

Exhibition

laser machine


Certificate

cnc router (4)
