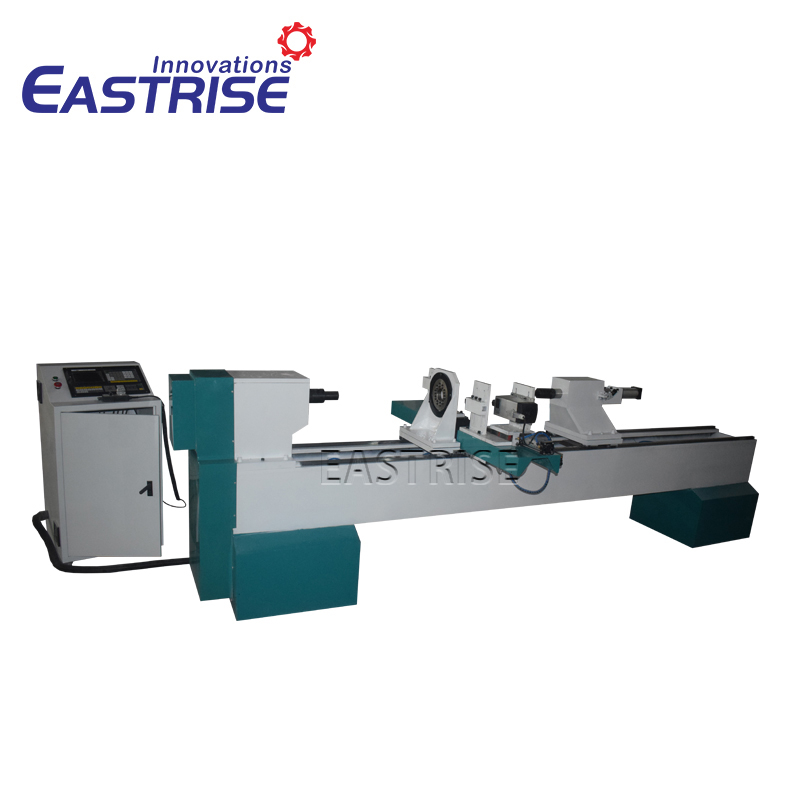

3-Axis Carving Spindle CNC Wood Turning Lathe

5 0 Reviews

CNC wood turning is a form of CNC woodworking that is used to create wooden objects on a lathe. CNC wood turning is different from most other forms of CNC woodworking in that the wood is moving while a stationary tool is used to cut and shape it. Many intricate shapes and designs can be made by CNC wood turning lathe machine. CNC wood turning lathe is a machine tool that rotates the workpiece on its axis to perform various operations such as cutting, sanding, knurling, drilling, or deformation, facing, turning, with tools that are applied to the workpiece to create an object with symmetry about an axis of rotation. CNC wood turning lathe is mainly used for various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase

Quantity:
  • ERL-3015-1D
  • Eastrise

3-Axis Carving Spindle CNC Wood Turning Lathe

cnc wood turning lathe machine (1)

Advantages

Speed: with high processing speed.

Control: With mature CNC controller, make the work stable, easy installation and commissioning.

Using the international standard of the CNC programming language. Supports various programs. Supports technological extensions.

Operation: With a high-precision stepper motor, combined with a ball screw to ensure dimensional accuracy and good environmental adaptation with dust-proof performance.

Body: Cast iron body with stable structure, large linear square rail, little vibration to ensure accuracy.

cnc wood turning lathe machine (7)

Applications

CNC Wood Lathe (CNC Lathe for Making Wooden Stair Handrails / Stair Column / Wood Balusters for Stairs / Chair Leg) According to the requirements and characteristics of the woodworking industry, CNC Woodworking Lathe, integrating CNC and other mechanical technology, can handle complex shapes of rotating wood products or semi-finished wood products. such as staircase, cylindrical, conical, curved, spherical, etc.

cnc wood turning lathe machine (8)

Technical parameters

LATHE MODEL

ERL-3015-1D

Max Processing Size

Length 1500,diameter 300mm

Spindle Power

5kw

Quantity of Tools

1

Max Feed Speed

35mm/s

Spindle Speed

0-3500rpm

Accuracy

0.001mm

Control System

DSP/GXK

Support Command

G Code

Voltage

380V/50HC

Machine Dimension

2750x1400x1500mm

Weight

1500kgs

Machining

cnc router (1)

Testing

cnc router (3)

Exhibition

laser machine


Certificate

cnc router (4)
