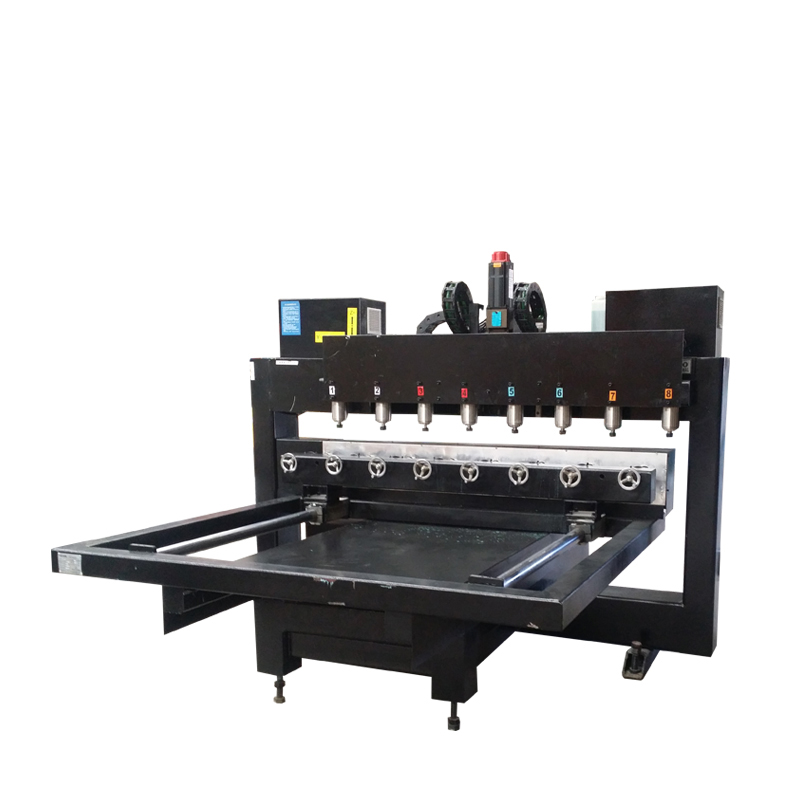

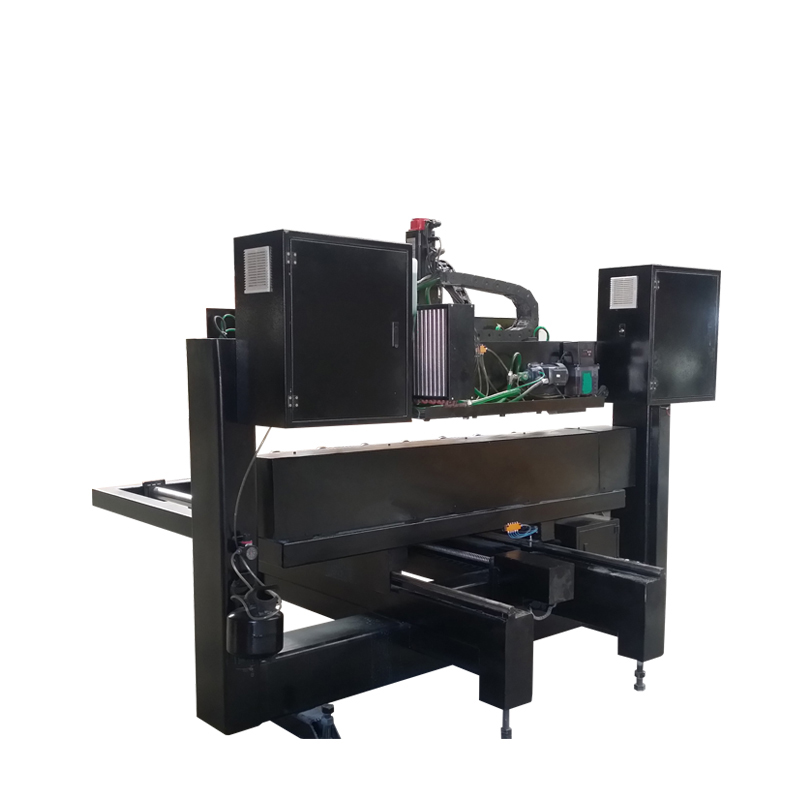

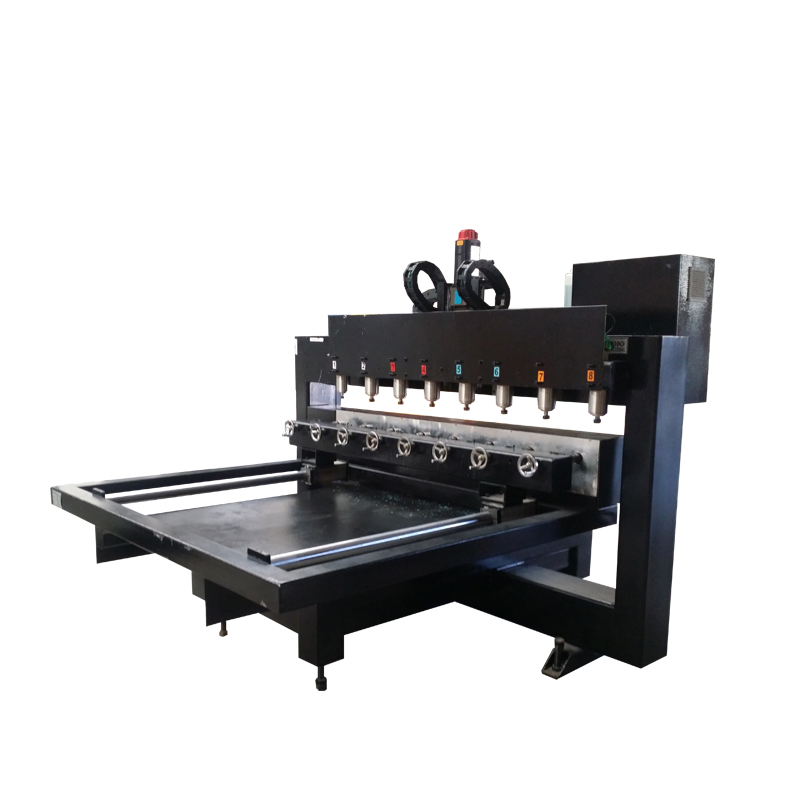

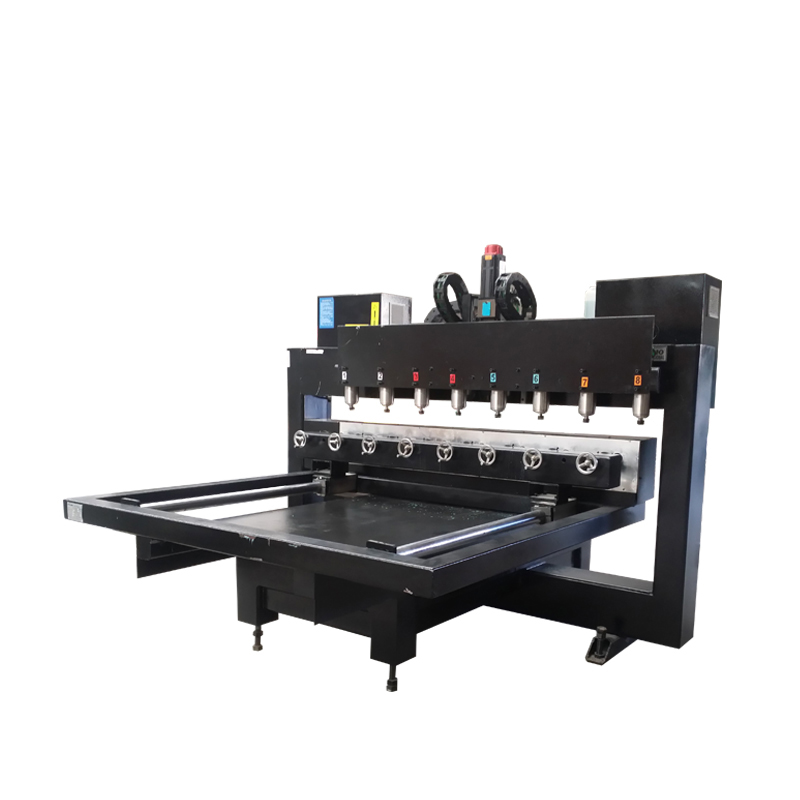

Descriptions of 3d CNC Router
This model of 3d cnc router has 8 heads and 8 rotations,which can work together to increase efficiency.Each rotation's working diameter can be up to 200mm,working length can be 1500mm.It is very for making table legs,buddhas,and other similiar art crafts.
Advantage of 3d CNC Carving Router
1.4-axis controller can carve round products like Roman column or not round products like table leg.
2.We deliver CNC router comes with ArtCAM software,which can design your patterns and transfer them to NC code,which can be used for cutting,drilling,carving.
3.Working voltage is 380V/3P or 220V/1P,other voltages like 220V/3P can be customized.
4.Big power spindle can process hard material and has high accuracy.
5.We adopt servo motors to let wood cnc router have fast working speed and high precision.
6.Heavy-duty machine structure is more than 1800kg,very strong and stable,no any vibration during high-speed working.
7.Original Taiwan HIWIN or PMI rail to keep high working precision.
8.We have already finished alignment before shipping.No need to set up again when you receive cnc router machine.
Features
1. Working area:diameter 200mm*length 1500mm*8pcs,other size can be customized
2. 3KW/2.2KW water cooling spindle
3. DSP A18 or Mach3 4-axis controller
4. Taiwan HINWIN or PMI linear guide rail
5. Taiwan TBI high precision ball screw
6. Servo motors and drivers
7. Fuling or BEST inverter
Technical parameters
Model | ERM0215-8 |
Working diameter | 200mm |
Working length | 1500mm |
Max traveling speed | 30m/min |
Tool diameter | ￠3.175、￠4 、￠6、￠8、￠12.7 |
Transmission | High precision Ball screw |
Software environment | WindowsXP/7/8/10 |
Spindle power | 3KW/2.2KW(Optional) |
Power without spindle | 3KW |
Voltage | 220v/380v |
Recognizing language | G code（nc）、mmg、plt、eng、dxf |
Spindle speed | 6000-24000rpm/min |
Control system | Mach3/DSP |
Machining
Testing
Certificate
After Sale Service and Warranty
1)3 years guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.
2)Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period. Software is on update for free whole life.
3)Our engineer could support you technology to your country if necessary.
4)Our engineer could service on weekend even on vacation.
5)Our engineer could train you in our factory for free.
6)Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
7)English manual and CD video for machine using and maintaining will send to you with the machine.
