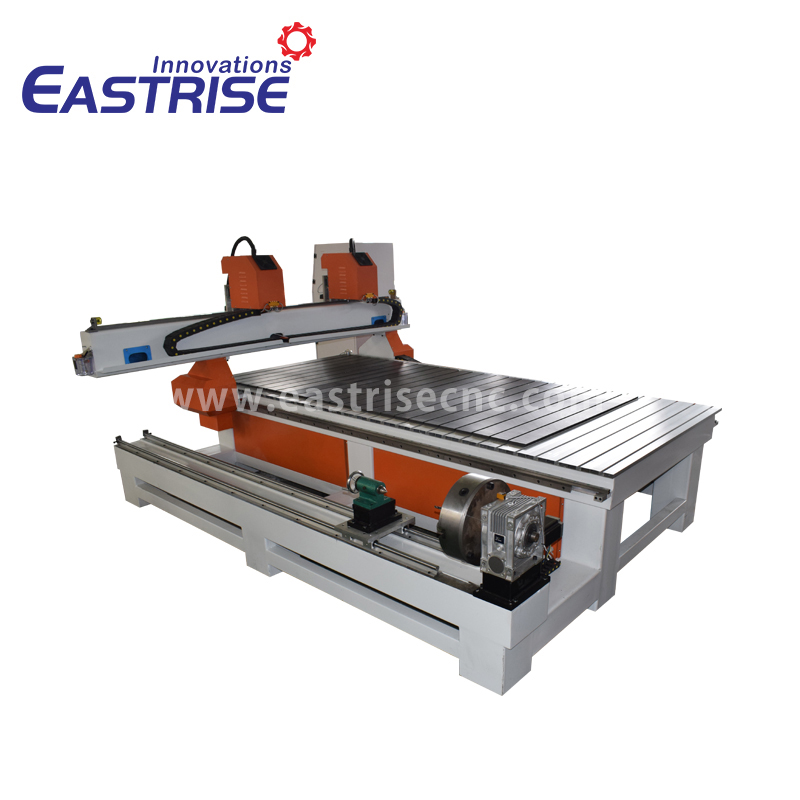

Double Heads Wood Cnc Router with 4th Rotation

5 0 Reviews
ERM1325S2 is a standard cnc router with 2 independent heads and rotary axis
Availability:
Quantity:
  • ERM1325S2

  • Eastrise

Double Heads Wood Cnc Router with 4th Rotation

Description

Double Heads Wood Cnc Router with 4th Rotation: in the same pattern can be double spindle work at the same time, greatly improving the processing speed of the plate, the same time to complete the work efficiency of the two devices, in some cases where the processing volume is not large, but also to achieve a single spindle work independently, effective and reasonable control of production costs.

This machine can not only carve the conventional engraving machine engraved three-dimensional wave plate, cabinet doors, wardrobe doors, screens, crafts fan window, but also can be used for the processing of cylindrical objects, such as cylindrical furniture fittings, pens barrels, staircase handrails, cylindrical musical instruments, other cylindrical

cnc router with rotary

Application of 1325 1530 Two Heads Cnc Wood Router

Applicable to model production, boards, glass, stone and hard objects in the material of the three-dimensional relief and line engraving, cutting, drilling, two-dimensional sculpture.

Applicable materails of 1325 1530 Two Separated Spindles Cnc Wood Router

Part of soft metal, plastic, wood materials, insulation materials, PVC, acrylic and other materials.

cnc router

wood carving machine

Advantage of 1325 1530 Two Separated Spindles Cnc Wood Router

1.Two spindles can work in the meantime,so we can get 2 products at one time.

cnc router (11)

2.Electric cabinet
cnc router machine

3.Rotary axis working diameter can be up to 300mm
rotary axis

4.Omron limit switch
cnc router (8)

6.Tool sensor
cnc router (10)

Technical parameters

Model

                       ERM1325S2

Working size

1300*2500mm

Max feeding height

200mm(Customized)

Max traveling speed

40m/min

Tool diameter

¢3.175、¢4 、¢6、¢8、¢12.7

Transmission

High-precision helical rack gear

Software environment

WindowsXP/7/8/10

Spindle power

3KW/4.5KW/5.5KW(Optional)

Power without spindle

2KW

Voltage

220V/380V

Recognizing language

G code(nc)、mmg、plt、eng、dxf

Spindle speed

6000-24000rpm/min

Control system

NC studio/DSP/Mach3

Machining

cnc router (1)

Testing

cnc router (3)

Certificate

cnc router (4)

Feedback from customer

cnc router feedback
