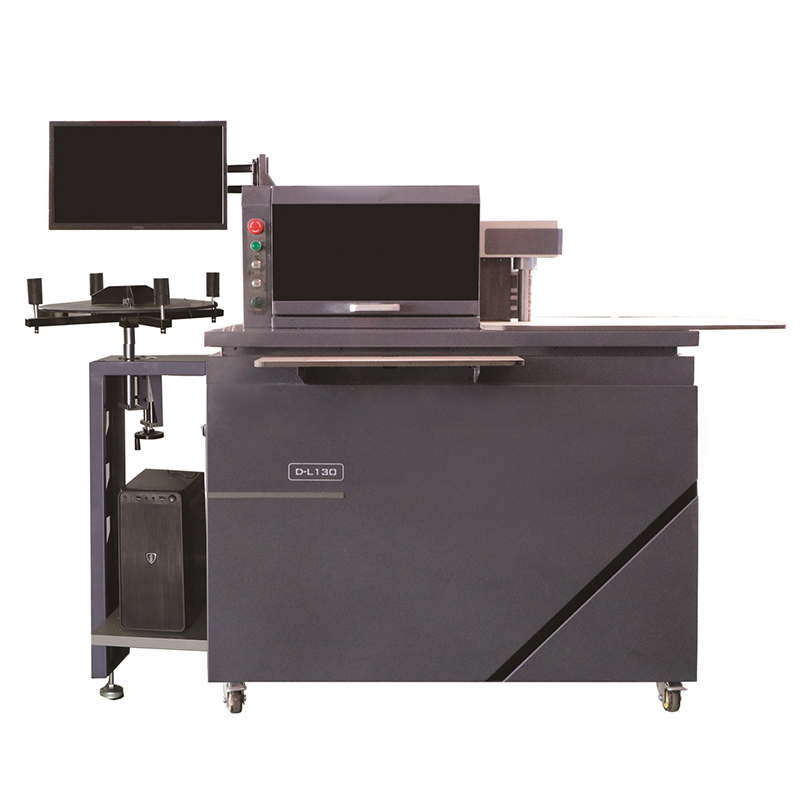

DL Series Only Aluminium Letter Bending Machine for Flat And Single-edge Hemmed Aluminium Coil

Share to:

DL Series Only Aluminium Letter Bending Machine for Flat And Single-edge Hemmed Aluminium Coil

5 0 Reviews

A specialized machine for high-precision bending of aluminum edge strips used in 3D LED channel letters and illuminated signs. It handles both flat aluminum strips and pre-formed edge aluminum profiles, delivering smooth, consistent bends without scratching the material. Compact and low-power, it is easy to operate and ideal for both small sign shops and large advertising factories.

Availability:

Quantity:



Inquire Add to Basket

Model:
DL130,DL180
Brand:
Eastrise

Product Description

Letter Bending Machine

Technical Parameters

Parameter	Specification
Application Materials	Flat aluminum, edge aluminum, edge side aluminum profile, Channellume
Slotting angle	45–120° (no limit for flat materials)
Bending radius	>5mm
Material Width	≤130mm
Material Thickness	0.3–1.2mm
Total Power	1000W
File format	dxf, plt, ai
Machine size	2440mm × 840mm × 1420mm
Machine weight	250KG
Rated voltage	220V
Working pressure	0.3–0.8Mpa

Main Features

1.Dedicated to bending aluminum edge material only — simpler, faster and more cost-effective
2.Handles both flat aluminum strips and pre-formed edge aluminum profiles
3.Precise bending radius control for consistent letter-edge quality
4.High-speed forming suitable for batch production of sign letters
5.Compact design, low power consumption, easy operation
6.Durable construction built for continuous workshop use
7.Quick tooling changeover for different edge aluminum sizes
8.Stable feeding to prevent scratching of aluminum surface
