ERJ6060F
Eastrise

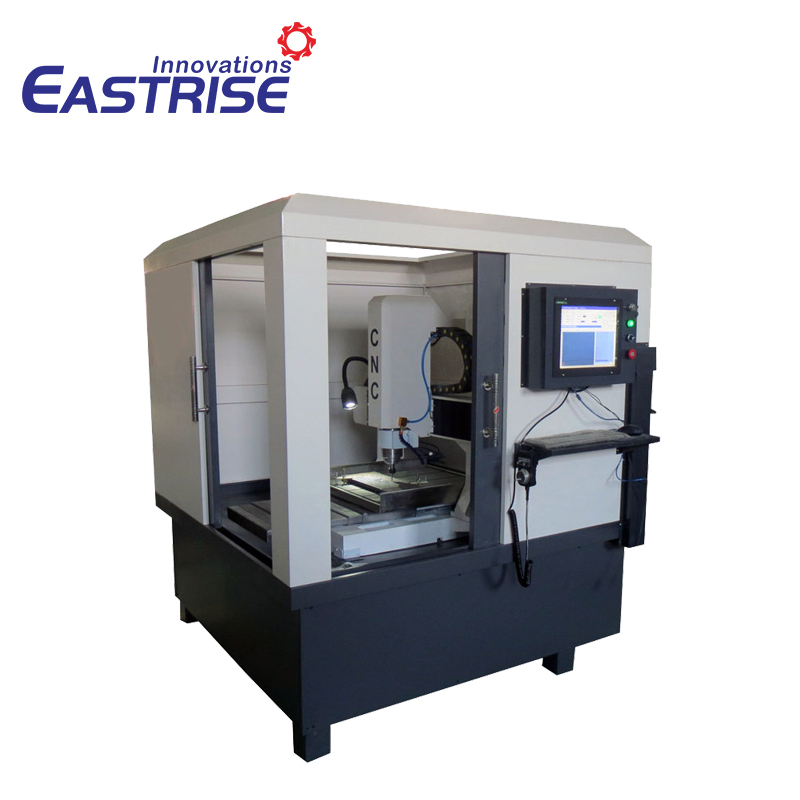

Advantages of Mould Milling CNC Router
1.The body is solid,hard,precise,reliable and durable.Whole cast iron structure,net weight is more than 1500kg,good hardness and stability.
2.3.5 kW constant power spindle can work with low noise,and specialize in process hard metal like steel.
3.High precision imported linear guide rail ensures high stability and durability of the transmission.
4.Using humanized controller,there is breaking-point memory to ensure continuous operation after electricity cut or other delay.
5.Professional flexible cables have high flexibility,life times can be up to 18 years.
6.Automatic oil lubrication system is easy to use with a spanner and is resistant to dust and water in XY axis,making it easy to maintain.
7.Accurate ball entry distance,smooth movement to ensure high precision of machine tools.
8.Using national famous brands of water-cooled,low-noise,high-power brushless shafts to ensure long working times.
9.Dust-proof structure for XYZ axis ensures longer machine life.
10.Controlled by a high-performance motor to ensure high speed and accuracy of the machine.
11.Perfect designer,choose the best machine accessories to minimize your preferred failure rate.
12.Specific memory to stop,electric interruption to continue to sculpt,forecast processing time and other functions to ensure random processing.
Metal Mould Making Router Samples
Features of Steel Mould Steel Carving Machine
1. Coolant system: Spray nozzle will supply coolant liquid for cooling spindle and workpieces with liquid in the tank and can be recycled automatically.
2. Castiron structure: High strength and high stability mechanical structure design make sure the machine moves smoothly.
3. Servo motors and drives: We usually use Japanese Yaskawa.Taiwan Delta and Chinese Leadshine are optional.Al of them are famous brands and have good quality.
4. Imported linear guide rail: We use Taiwan HIWIN,PMI or Japanese THK with high precision to get best processing effect from machine.
5. Three axis all use Taiwan TBI ball screw to make sure the accuracy and reposition precision.Long lifespan, 4 times greater than conventional ball screw, low wear, long life of storage.
6. Humanized controllers like Besijing RichAuto DSP A11,Shanghai Weihong NK260 and Taiwan SYNTEC.They are very easy for freshman to learn and operate.
7. Enclosed work space ensures safe and contamination-free work.
8. Stable and rigid structure: With the gantry type bed and table are one, it is not only good rigidity, but also no installation error for both. Processing precision will not be affected even if being used for long time.
Technical parameters of Mold Milling Machine
Model | ERJ6060F |
Working size | 600*600mm |
Max feeding height | 200mm(Customized) |
Max traveling speed | 6000-8000mm/min |
Tool diameter | ¢3.175、¢4 、¢6、¢8、¢12.7 |
Transmission | High precision Ball screw |
Software environment | WindowsXP/7/8/10 |
Spindle power | 3.5KW(Optional) |
Power without spindle | 1KW |
Voltage | 220v/380v |
Recognizing language | G code(nc)、mmg、plt、eng、dxf |
Spindle speed | 6000-24000rpm/min |
Control system | NC studio/DSP/Mach3/Syntec |
Machining of Mold making Machine
Testing of Mould CNC Router
Certificate
Feedback from customer
