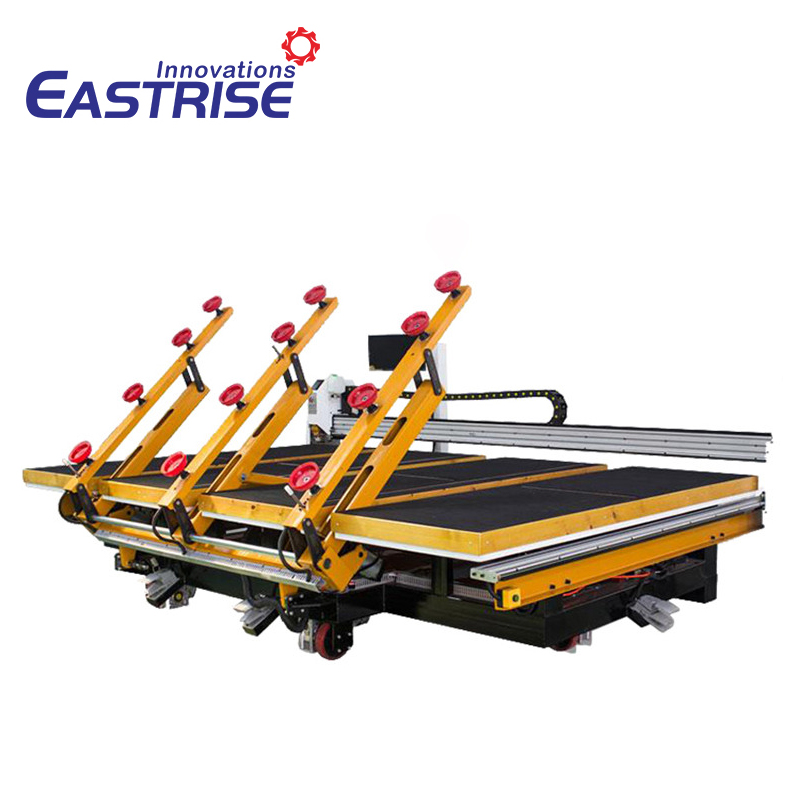

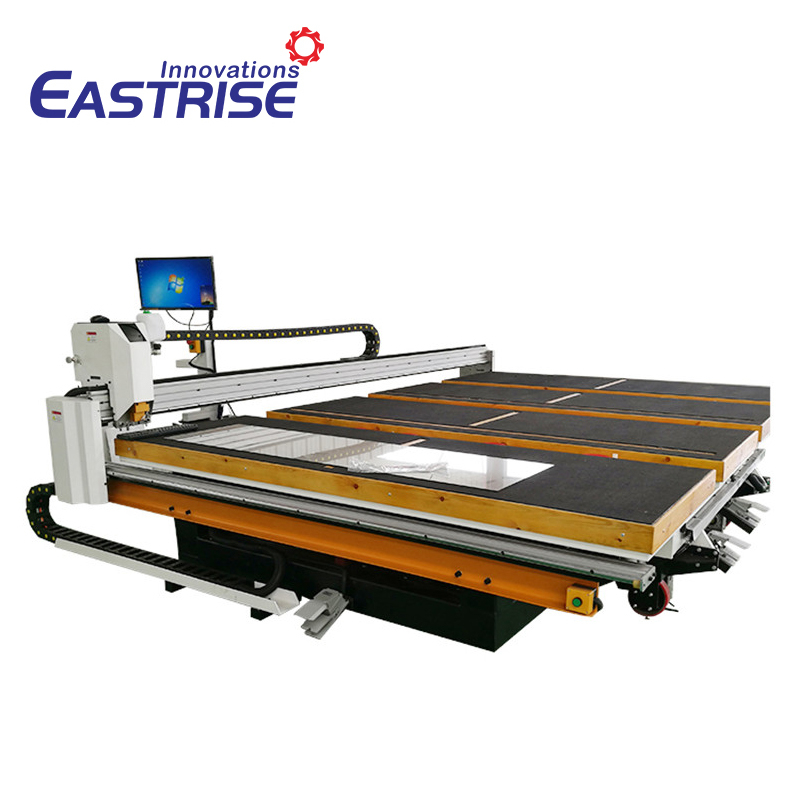

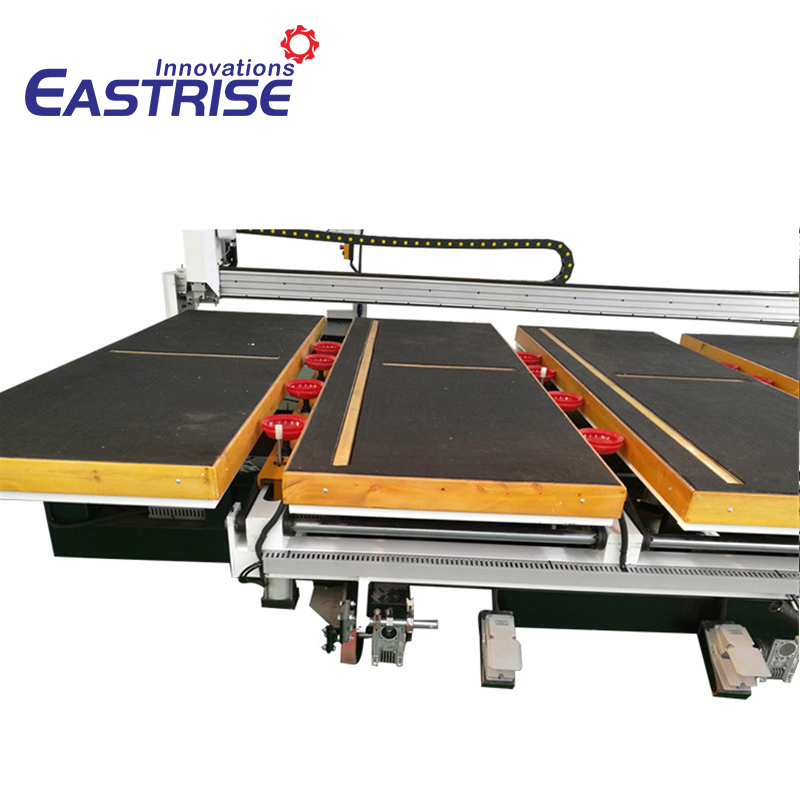

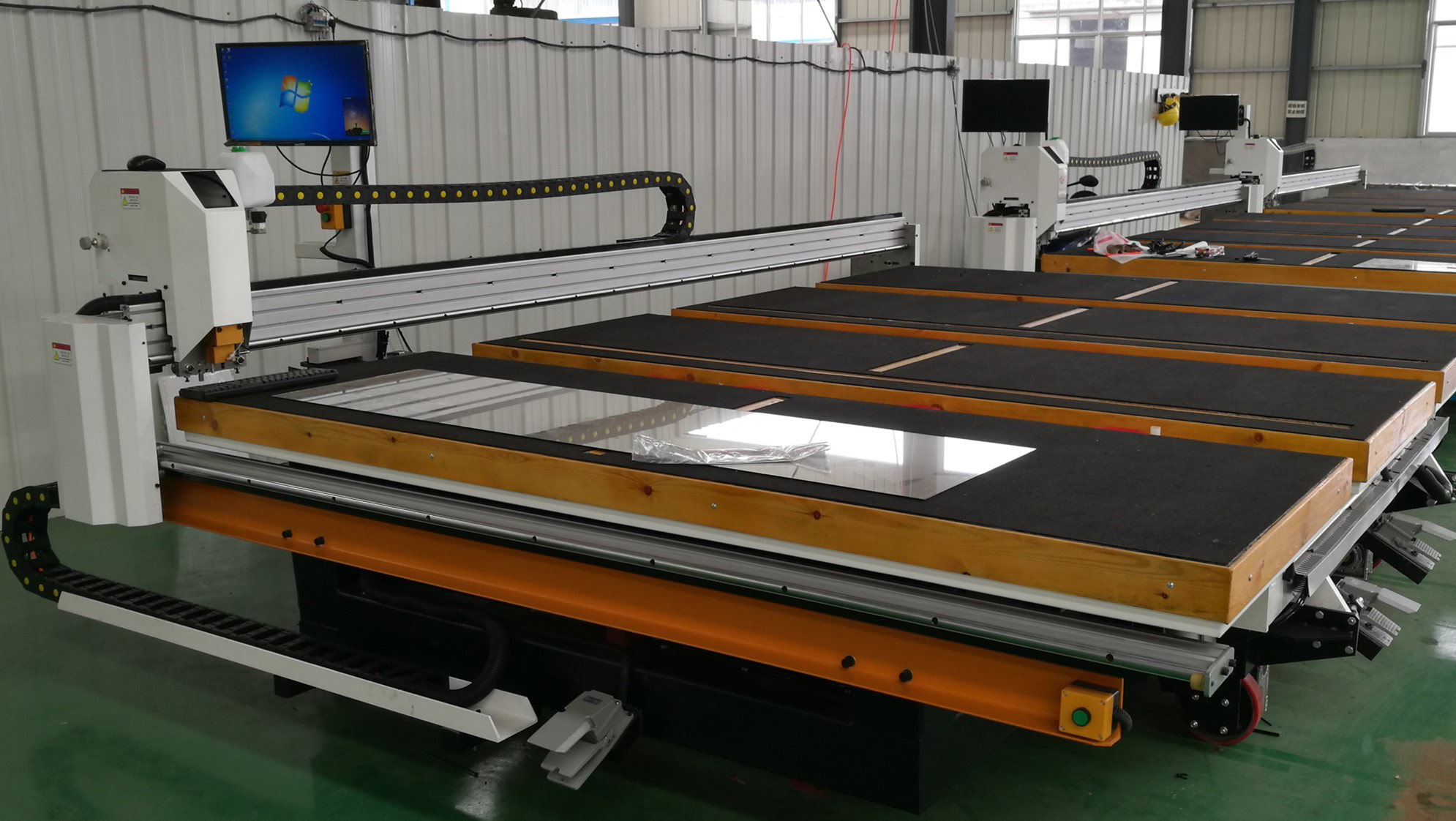

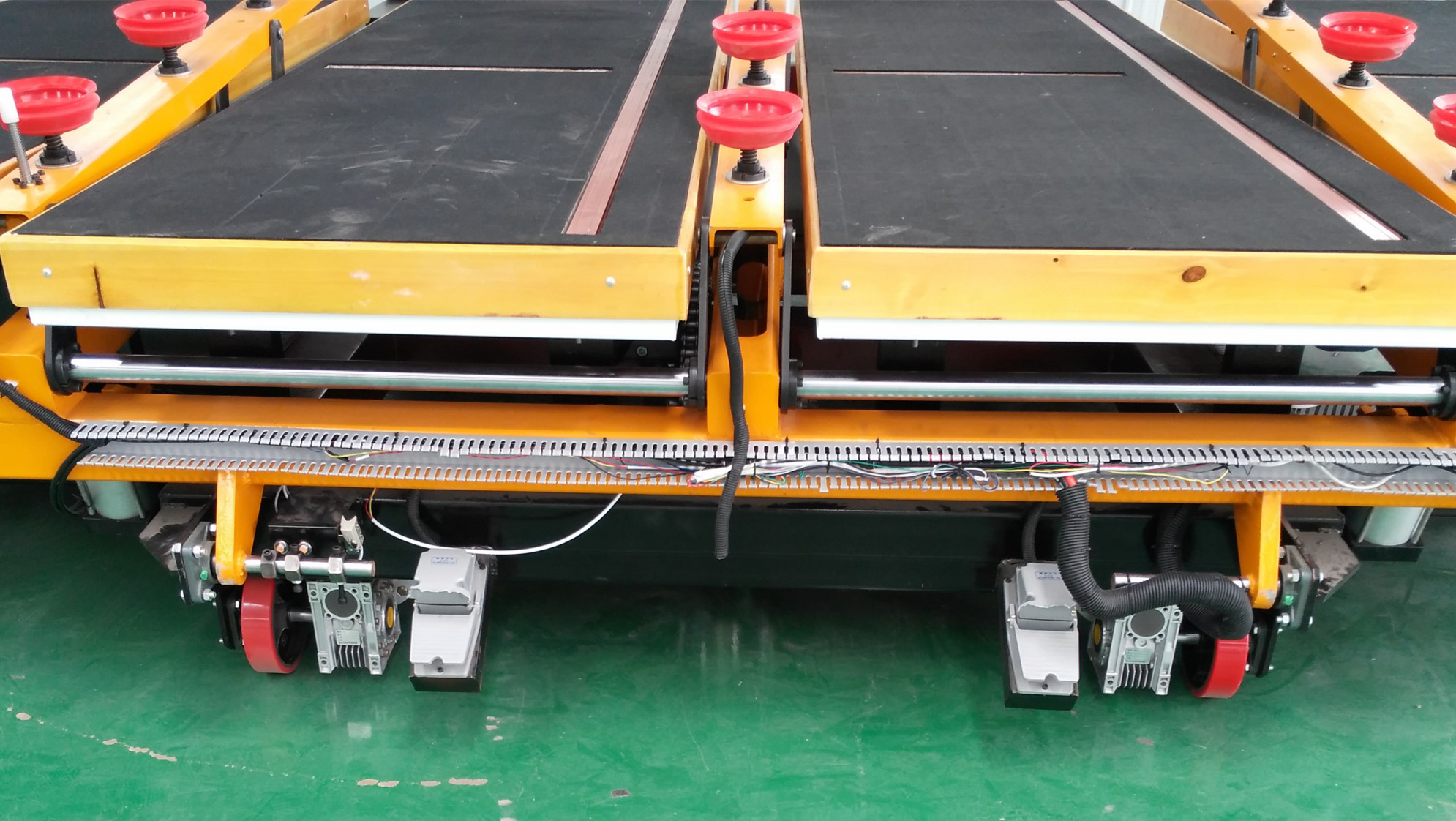

Auto Loading Breaking Glass Cutting Machine

CNC2620 glass cutting machine is the latest development,which is including loading, taking glass,straight cutting,shape cutting,air flotation,breaking,automatically move and walk (around),remote control.

Quantity:
  • CNC2620
  • Eastrise

Auto Loading Breaking Glass Cutting Machine

auto loading glass cutting machine (2)

Description of 1325 Glass Cutting Machine

This set of equipment is the latest development , which is including loading, taking glass, straight cutting, shape cutting, air flotation, breaking, automatically move and walk (around), remote control. It is currently the most advanced automatic glass cutting system, instead of the traditional automatic glass cutting line(loading table, cutting machine, breaking table).It is significantly reduce the labor intensity of workers, with convenient operation, low investment and benefit advantages, greatly reducing the cost, it is the best choice for small and medium enterprise.

glass cutter

Flexibility: Mobile device inside the machine,which can be moved to any glass location for loading, cutting, breaking.

Security: through a remote control device to operate the device, effectively avoid personal injury and property damage likely to result from, the equipment itself also has a computer to automatically detect electrical protection devices, make the equipment very simple and safe to use.

Economy: it at least need 4 people for cutting glass with the traditional glass cutting line.Our equipment only need one person who can complete loading, cutting, breaking,. Meanwhile workers through remote control operation without contact glass, completely eliminate this aspect of high security risks, using flexibility can be applied to different sizes of glass, a piece of equipment has the function of multiple devices.

glass cutting machine

Features of 1325 Glass Cutting Machine

1.Innovative system is the only one can guarantee perfect uniformity and constant quality of all the machines that are being built and every single parts of machines can be easy to replace if needed, even the felt table surface.

2.Control panel with incorporated independent Computer , software packet with optimization program developed in Multitasking systems, user graphic interface for the managing of the cutting cycle and machine monitoring , hydraulic tilting surface, air cushion,  ventilator for the movement of the sheet on the surface

3.Famous imported Electrical components or reliable domestic brands to make high cutting precision and stability, can meet all kinds of shapes of glass cutting.

4.Automatic oil injection and automatic constant pressure regulation functions, effective way to ensure the stability of the cutting and cutting effect. Simple, easy to manage, no special requirements for operators, easy training to start, unskilled workers will be able to operate it too.

5.Safety of the glass presence:
Automatic sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets

6.imported cutter wheels and setting tool.stable voltage power supply,English cutting software, instruction,AUTOCAD Designed graph and figure,all cutting are fully CNC Control

cnc glass cutting machine

Working process

1) Work flow: After starting the inputting machine, arms automatically suck glass  from the shelf. Under sensor controlled, glass automatically find glass edge in the X and Y directions. After moving glass sheets to designated location, transport glass to the automatic cutting table.Cutter will move to coordinate origin, and automatically start to cut according to the preinstall graph.

2)The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing.

Technical Parameters

1.The cutting thickness: 2-19mm

2.The cutting accuracy: Parallelism:≤±0.15mm/m

3.The cutting speed: 150m/minute(can be adjustable)

4.The outline size:3200*2200*900mm;

5.The max cutting size:2440*1830mm

6.Transmission system: The X、Y、Z Axis are equipped with reliable motor.

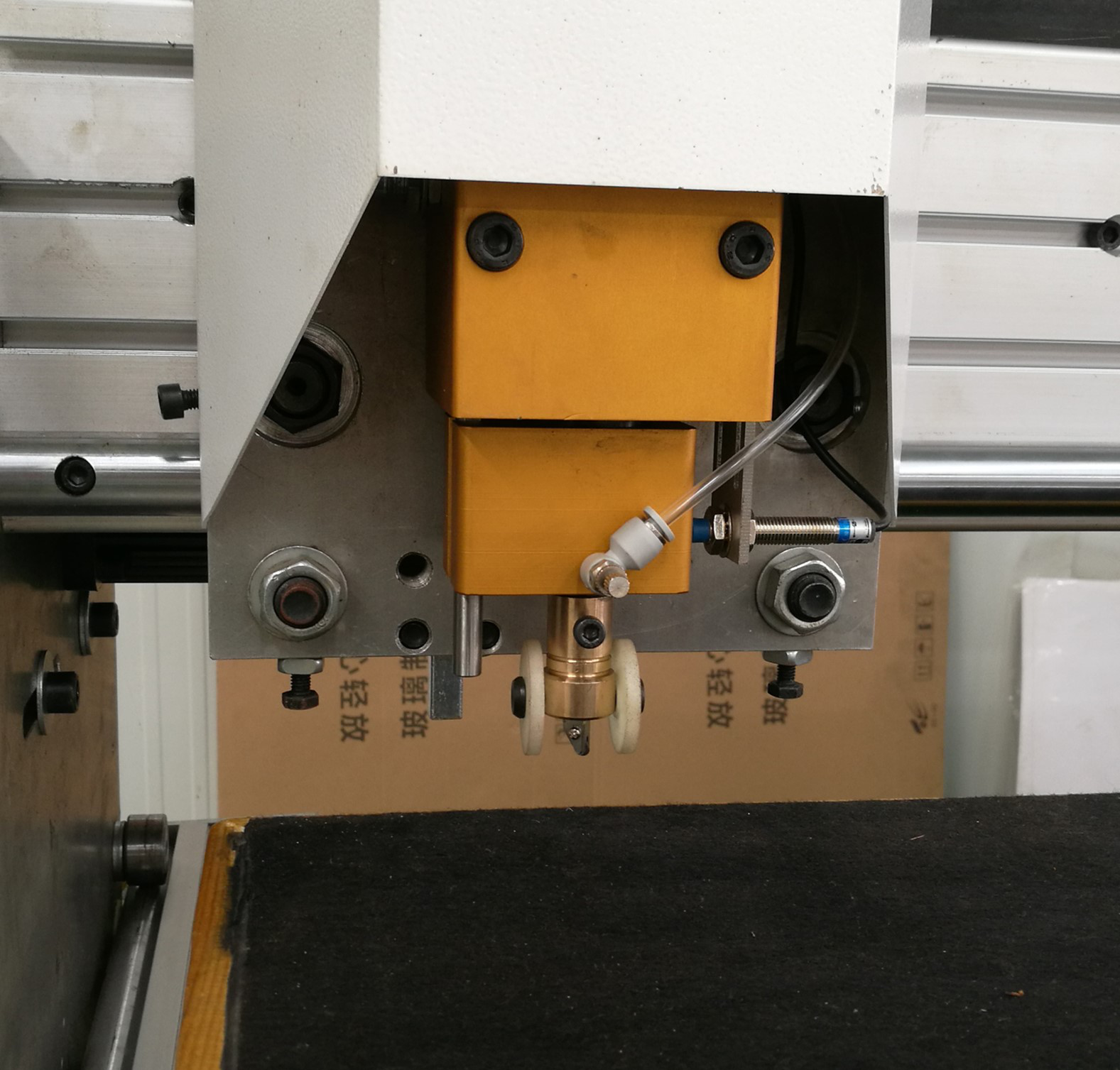

7.The cutter block: It adopt pneumatic and spring at the same time. the cutter holder can rotate by 360°degree, and cut the glass up and down.(It can cut any shape)

8.The oiling supply method: Auto oiling.

9.The transportation device: It adopt Flotation device which makes it convenient to move the sheet glass.

Mechanical

1. The tabletop: The smoothness≤±0.2mm/m

2. Rack/Guides: Imported from Japan and switzerland.

3. Turret: It use the pneumatic pressure and the spring pressure at the same time to  make the cutting best.

Electrical

1. It’s operated directly by pc and adopt Microsoft Windows.

2. Voltage: 380v/50Hz.

Samples of 1325 Glass Cutting Machine

glass cutting (4)

Configurations

1,.X direction motor: stepper motor, (optional servo motor)

2.Y direction motor: stepper motor, (optional servo motor)

3.Ball screw: Taiwan TBI

4.Guide rail: Taiwan HIWIN linear guide

7.Flexible cable: imported brand cable

8.knife box: double guide column spring knife box

9.Cutting cutter wheel and tool holder: Adopting the company's tool holder with German cutter wheel

10.rack: cast iron parts (transmission device is fully installed on the thickness of 180mm cast iron platform, long-term use does not deform, to ensure cutting accuracy)

Machining

cnc router (1)

Testing

cnc router (3)

Exhibition

laser machine


Certificate

cnc router (4)
