Fiber Laser Welding Carbon Steel: A Complete Guide to Power, Thickness, Settings and Applications
Can a fiber laser welding machine weld carbon steel? Yes. Fiber laser welding is an effective joining process for many carbon steel fabrication applications. It uses a concentrated laser beam to melt and join steel components, often producing narrow weld seams, high travel speeds, and relatively low distortion compared with conventional arc welding in suitable conditions.
Common handheld fiber laser welding machines are available with power ratings of 1000W, 1500W, 2000W, and 3000W. However, the achievable welding thickness depends on laser power, welding speed, joint design, material composition, and penetration requirements.
For manufacturers working with sheet metal, steel cabinets, industrial equipment, and metal furniture, fiber laser welding can offer an efficient production solution.
This guide from EASTRISE CNC explains the technology, machine selection, important welding parameters, common defects, and industrial applications.
Quick Facts: Fiber Laser Welding Carbon Steel
| Question | Quick Answer |
|---|
| Can fiber lasers weld carbon steel? | Yes, with suitable equipment and parameters |
| Common laser power options | 1000W, 1500W, 2000W, 3000W |
| Common shielding gas | Argon; other gases may be suitable after testing |
| Can filler wire be used? | Yes, when compatible with the welding process |
| Main advantages | High speed, narrow welds, reduced distortion |
| Common applications | Sheet metal, cabinets, furniture, machinery |
| Can it replace MIG welding? | In some applications, but not all |
| Is surface preparation necessary? | Yes, clean and properly fitted joints are important |
1. What Is Carbon Steel Fiber Laser Welding?
Carbon steel fiber laser welding is a process that joins steel components using concentrated energy generated by a fiber laser source.
The laser beam is transmitted through an optical fiber and focused onto the workpiece by a welding head.
The concentrated energy melts a small area of the metal. As the welding head moves along the joint, the molten material solidifies to form a weld.
Depending on the welding conditions, the process may operate in conduction or keyhole welding mode.

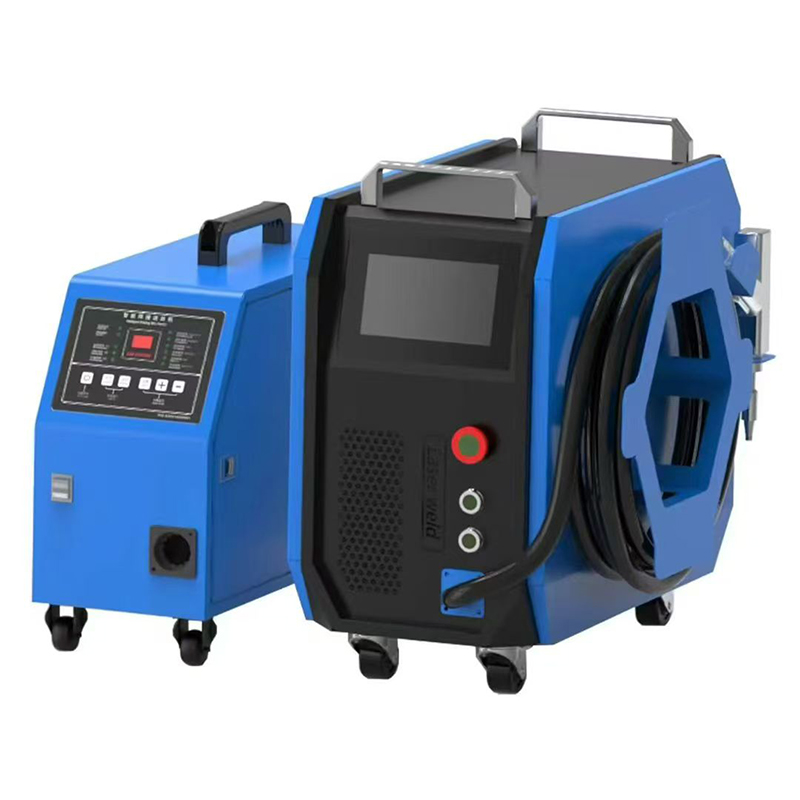

Fiber laser welding systems can be configured for handheld, automated, or robotic operation.
Handheld laser welding machines are commonly considered for flexible fabrication projects, while automated systems are useful for repetitive industrial production.
2. Why Is Fiber Laser Welding Suitable for Carbon Steel?
Carbon steel is widely used in manufacturing because of its strength, availability, and relatively economical cost.
Many low-carbon steel grades have good weldability, making them suitable candidates for laser welding.
However, weldability varies with carbon content, alloy composition, material thickness, and joint restraint.
High Energy Density
A focused laser beam delivers energy to a relatively small area, allowing localized melting and precise welding.
High Welding Speed
In suitable applications, fiber laser welding can achieve higher travel speeds than traditional TIG welding.
The actual speed advantage depends on the joint and quality requirements.
Reduced Thermal Distortion
Because the laser concentrates energy in a narrow region, the process can reduce overall heat input and distortion in many applications.
Consistent Weld Appearance
With correct parameters and joint preparation, laser welding can produce narrow, uniform weld seams that require relatively little finishing.
Suitable for Automation
Fiber laser welding systems can be integrated with motion systems, robotic arms, and production fixtures for repeatable manufacturing.
3. How Thick Can a Fiber Laser Welding Machine Weld Carbon Steel?
The maximum welding thickness depends on more than the laser's rated power.
Important variables include:
Laser output power
Welding travel speed
Beam focus position
Joint geometry and gap
Material composition
Welding head configuration
Required weld penetration
Shielding gas and filler wire
Fiber Laser Welding Power Selection
| Laser Power | Typical Selection Consideration |
|---|
| 1000W | Thin sheet metal and light fabrication |
| 1500W | General-purpose sheet metal welding |
| 2000W | Increased penetration potential and productivity |
| 3000W | More demanding penetration and production requirements |
These are general selection guidelines rather than verified maximum thickness ratings.
For example, a machine that can produce a visually acceptable weld on a thick plate may not necessarily achieve full penetration or meet the required mechanical properties.
EASTRISE CNC recommends confirming machine suitability through representative welding samples before purchasing equipment.
4. What Are the Best Settings for Carbon Steel Laser Welding?
There is no universal set of laser welding parameters suitable for every carbon steel application.
The correct settings depend on the material grade, thickness, joint design, and equipment configuration.
Laser Power
Insufficient power may cause incomplete fusion or inadequate penetration.
Excessive power may contribute to burn-through or unstable welding.
Welding Speed
Higher travel speeds generally reduce energy input per unit length when other conditions remain unchanged.
Slower speeds increase heat input and may increase penetration, but excessive heat can cause distortion or burn-through.
Focus Position
The position of the laser focus influences energy distribution and weld geometry.
Operators should follow the equipment manufacturer's recommended focus settings and verify results through test welds.
Shielding Gas
Argon is commonly used for protecting the molten weld pool.
Other gases, including nitrogen in selected processes, require validation because gas composition can influence weld properties and process behavior.
Wobble Welding
Some handheld fiber laser welding machines use an oscillating laser beam.
This can increase the effective weld width and help accommodate certain joint configurations.
However, wobble settings must be optimized to avoid insufficient penetration.
Filler Wire
Filler wire may be used when the joint requires additional material or when the welding procedure specifies a particular filler composition.
5. Fiber Laser Welding vs MIG and TIG Welding
Fiber laser welding, MIG welding, and TIG welding each offer different advantages.
| Feature | Fiber Laser Welding | MIG Welding | TIG Welding |
|---|
| Welding speed | Often high | High | Generally lower |
| Heat-affected zone | Often narrow | Generally wider | Depends on process settings |
| Joint gap tolerance | Usually relatively low | Generally good | Depends on joint design |
| Automation suitability | Excellent | Excellent | Good |
| Initial equipment cost | Generally higher | Generally lower | Generally lower |
| Common use | Precision fabrication | General fabrication | Precision welding |
When Should You Choose Fiber Laser Welding?
Fiber laser welding is particularly attractive when:
Weld appearance is important.
Production involves repetitive metal components.
Minimizing distortion is a priority.
The joints can be prepared with suitable fit-up accuracy.
High production efficiency is required.
MIG welding may remain more suitable for certain structural joints, large gaps, and heavy fabrication applications.
TIG welding remains valuable where precise manual control or specialized welding procedures are needed.
6. Common Carbon Steel Laser Welding Defects and Solutions
Porosity
Possible causes: Surface contamination, moisture, inadequate shielding gas coverage, or unstable welding conditions.
Recommended actions: Clean the workpiece, inspect shielding gas delivery, and optimize the welding process.
Lack of Fusion
Possible causes: Insufficient laser energy, excessive travel speed, poor joint alignment, or unsuitable focus position.
Recommended actions: Review welding parameters and confirm fusion using appropriate inspection methods.
Burn-Through
Possible causes: Excessive heat input, low travel speed, or unsuitable settings for thin material.
Recommended actions: Reduce energy input as appropriate and validate the weld profile.
Cracking
Possible causes: Material composition, rapid cooling, residual stresses, or unsuitable welding procedures.
Recommended actions: Evaluate the carbon steel grade, joint restraint, heat input, and whether preheating or other controls are necessary.
Excessive Distortion
Possible causes: Uneven heating, poor fixturing, or excessive heat input.
Recommended actions: Improve clamping, welding sequence, and process control.
7. Industrial Applications of Carbon Steel Laser Welding
Sheet Metal Fabrication
Fiber laser welding can be used to manufacture metal cabinets, enclosures, sheet metal boxes, equipment covers, and custom fabricated components.
Automotive Components
Selected brackets, housings, and automotive metal components may be suitable for laser welding.
Safety-critical parts require qualified procedures and appropriate quality assurance.
Metal Furniture
Metal furniture manufacturers can use laser welding for suitable steel tables, chairs, shelves, and decorative frames.
Industrial Machinery
Laser welding can be applied to equipment housings, protective covers, fabricated assemblies, and selected machinery components.
Doors and Metal Frames
Handheld laser welding machines can support the production of suitable metal doors, frames, and decorative steel products.
8. How to Choose a Fiber Laser Welding Machine for Carbon Steel
Before selecting a machine, buyers should evaluate the following factors.
Material Requirements: Identify the carbon steel grade, thickness range, and joint geometry.
Laser Power: Select power according to the required penetration and production speed.
Welding Head: Evaluate focus adjustment, wobble capability, and maintenance requirements.
Wire Feeder: Determine whether the application requires filler wire.
Cooling System: Confirm that the cooling system supports the intended operating conditions.
Laser Safety: Class 4 industrial laser welding systems require suitable engineering controls, trained personnel, and appropriate protective equipment. A handheld welding operation should not be treated as safe merely because protective glasses are worn.
After-Sales Support: Check the availability of technical guidance, spare parts, and maintenance assistance.
9. Is Fiber Laser Welding More Cost-Effective Than Traditional Welding?
Fiber laser welding can reduce production costs in some applications through higher welding speeds, reduced finishing, and lower distortion.
However, its initial equipment cost is typically higher than that of basic MIG or TIG systems.
A realistic cost comparison should include:
For businesses producing large quantities of similar components, the productivity advantages may justify the initial investment.
For low-volume or highly variable fabrication, conventional welding may remain more economical.
10. Frequently Asked Questions About Carbon Steel Fiber Laser Welding
Can a 1500W fiber laser welding machine weld carbon steel?
Yes. A 1500W fiber laser welding machine can weld suitable carbon steel components. The achievable penetration and thickness depend on the welding parameters, joint configuration, and material requirements.
Is fiber laser welding stronger than MIG welding?
Not inherently. Weld strength depends on joint design, penetration, material properties, process qualification, and defect control. Both processes can produce strong welds when properly applied.
Can fiber laser welding be used on galvanized steel?
Certain galvanized steel components can be laser welded, but the zinc coating introduces additional challenges, including vapor generation and porosity. Appropriate process controls, ventilation, and safety measures are essential.
Does fiber laser welding require filler wire?
Not always. Closely fitted joints may be welded without filler wire. Other applications require filler material to bridge gaps or achieve specified weld properties.
What shielding gas is used for carbon steel laser welding?
Argon is commonly used. The appropriate shielding gas depends on the welding procedure, equipment, and required weld quality.
Is fiber laser welding suitable for beginners?
Operators can learn the equipment workflow through training, but safe and effective laser welding requires knowledge of welding parameters, material preparation, and high-power laser hazards.
Can a fiber laser welding machine weld stainless steel and aluminum?
Many fiber laser welding systems can also weld stainless steel and certain aluminum alloys, provided the equipment configuration and welding procedure are suitable for those materials.
11. Why Consider EASTRISE CNC?
EASTRISE CNC provides industrial machinery solutions for international customers.
When evaluating fiber laser welding equipment for carbon steel applications, buyers should prioritize reliable equipment specifications, representative welding samples, and technical support.
Our team can discuss your material requirements, production goals, and suitable equipment options.
To receive more information, please provide:
Conclusion
Fiber laser welding is a practical solution for many carbon steel manufacturing applications, particularly where welding speed, consistent appearance, and reduced thermal distortion are important.
However, successful results depend on choosing the appropriate laser power, preparing the material correctly, and validating the welding procedure.
Manufacturers should evaluate real welding samples rather than relying only on advertised machine power or maximum thickness figures.
Contact EASTRISE CNC to discuss your carbon steel welding requirements and explore suitable industrial welding solutions.
