| Basic Parameters | Laser Power | 6000-20000W |
| Focal Length | F250-F275 with automatic focusing adjustment |
| CNC System | FARLEY (Five-Axis CNC System) |
| Display Screen | 23.6-inch touch screen（supporting mouse operation） |

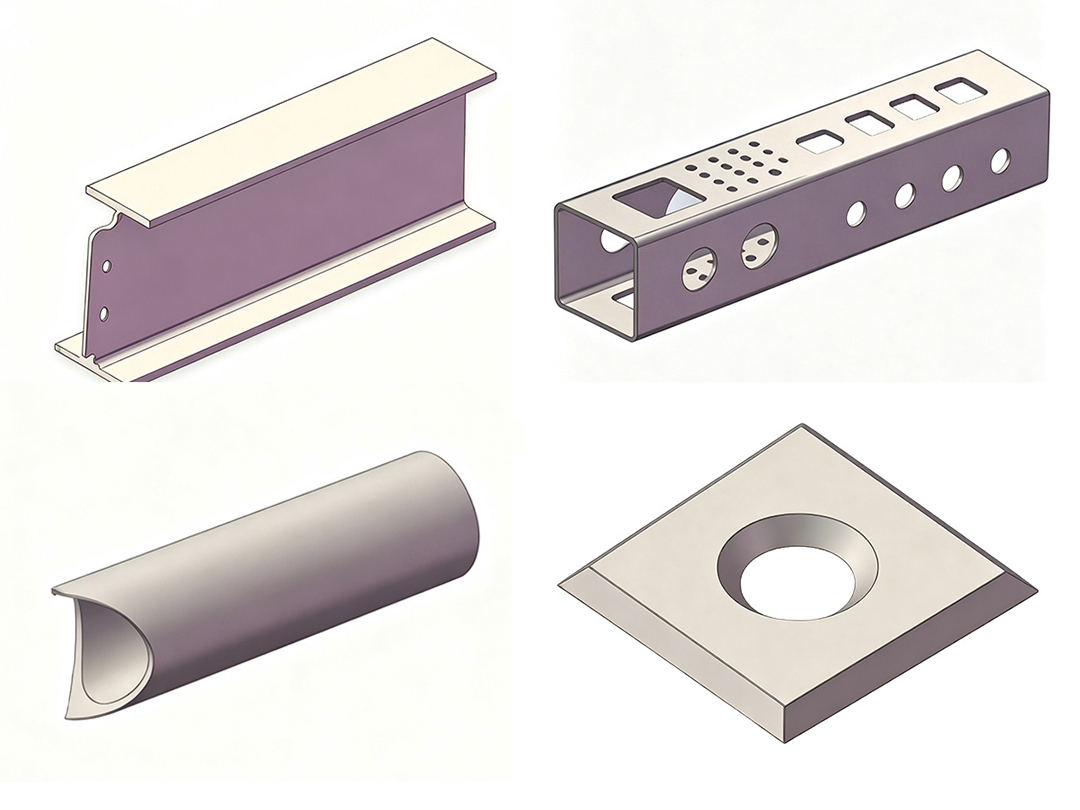

| Processed Profile Types | H-beams, channel steels, angle steels, etc. |
| Functions | Sectional cutting, flange and web cutting, bevel cutting, marking |
| Linked Axis | Six-axis（X/Y/Z/A/C/R） |
| Steel Nesting Software | Supports direct import of NC programs output by Tekla and universal 3D software formats such as STEP, IGS, etc. |

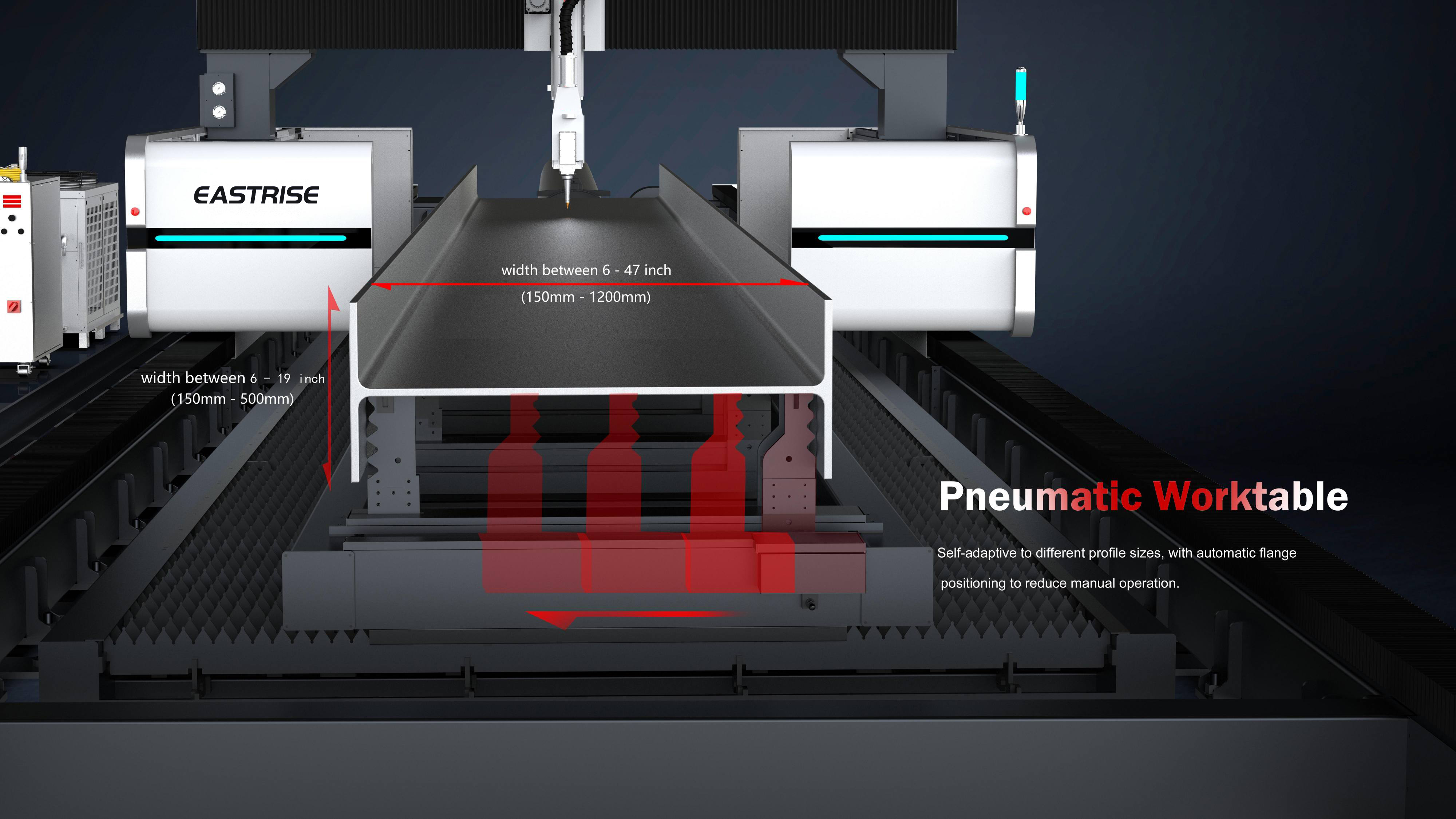

| Processing Capability | Section Dimension for Steel Processing | Width H≤1000mm |
| Height B≤500mm |
| Length L≤12000mm |
| Cutting Thickness（Carbon Steel O2） | Maximum Vertical Cutting：30mm |
| Bevel Cutting Range | 0-45° bevel |
| Processing Stroke | X-Axis Stroke | MAX. 13 meters (customizable) |
| Y-Axis Stroke | MAX. 2meters (customizable) |
| Z-Axis Stroke | 900mm |
| Positioning Accuracy | X-Axis Positioning Accuracy | 0.1mm/10m（≤10m)，0.2mm/overall length |
| Y-Axis Positioning Accuracy | 0.05mm |
| X-Axis Repeat Positioning Accuracy | 0.05mm/10m（≤10m)，0.1mm/overall length |
| Y-Axis Repeat Positioning Accuracy | 0.03mm |
| Processing Speed | Maximum Positioning Speed for X/Y Axis | 60m/min |
| Maximum Linked Positioning Speed for X/Y Axis | 80m/min |
| Maximum Acceleration for X/Y Axis | 1.0G |
| Bevel Oscillation Mechanism | A-Axis Stroke | ±90° |
| C-Axis Stroke | ±90° |
| A/C Axis Positioning Accuracy | 0.03° |
| A/C Axis Repeat Positioning Accuracy | 0.01° |
