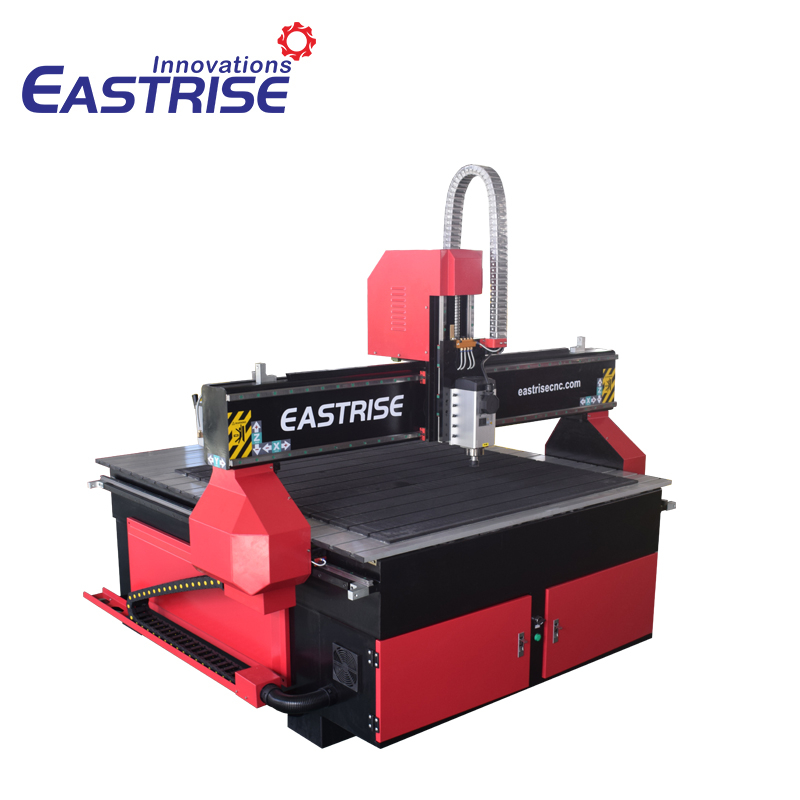

1313 4x8 Wood Carving Engraving Cnc Router for Sale with Mach3

This is standard cnc router,which has 1300*1300mm working area,suitable for standard 4X4 feet material sheet.It can carve,cut and drill materials like wood,plastic,acrylic,aluminium to make doors,photo frames and other decorations

Quantity:
  • ERM1313
  • Eastrise

1313 1325 1530 Wood Cnc Router for Sale with Mach3

cnc router table (1)

Features of 1313 1325 1530 Wood Cnc Router for Sale with DSP

1.High quality 3.5kw air cooled spindle is good for carving and cutting wood,plastic,alrylic...

cnc router table

2.Inner electric cabinet can save space.

cnc router

3.Lubrication system will supply oil to rails and ball screws.

cnc engraving router

4.Reliable designed and top quality hard limit.

wood router

5.Breaking-point memory function can memorize the carving status when power off, and it will continue working at this point when power recover.

Applications of 1313 4X4ft Cnc Router Machine

1. Furniture: wood doors, cabinets, boards, offices and wooden furniture, tables, chairs, doors, windows.

2. Sheet material processing: insulating parts, plastic chemical parts, PCB, automotive interiors, rails, stairs, anti-bait boards, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

3. Decorative industry: acrylic, PVC, MDF, artificial stone, plexiglass, copper, aluminum plate engraving, milling and other soft metals.

cnc carving router

Configurations of 1325 1313 Wood Cnc Router for Sale

1. Working area:1300*1300*200mm
2. 3KW/4.5KW/5.5KW HQD water/air cooling spindle
3. Nc-studio/DSP/Mach3 control system
5. Manual oil mist cooling sprayer for working on metal
6. Taiwan HINWIN linear guide rail
7. High-precision helical rack gear
8. T-slot table
9. Stepper motor and leadshine drivers
10. Fuling inverter
PS : We can customize different size and different configurations for you.

Technical parameters

Model

                       ERM1313

Working size

1300*1300mm

Max feeding height

200mm(Customized)

Max traveling speed

40m/min

Tool diameter

¢3.175、¢4 、¢6、¢8、¢12.7

Transmission

High-precision helical rack gear

Software environment

WindowsXP/7/8/10

Spindle power

3KW/4.5KW/5.5KW(Optional)

Power without spindle

2KW

Voltage

220V/380V

Recognizing language

G code(nc)、mmg、plt、eng、dxf

Spindle speed

6000-24000rpm/min

Control system

NC studio/DSP/Mach3

Machining

cnc router (1)

Testing

cnc router (3)

Certificate

cnc router (4)

Feedback from customer

cnc router feedback
