ATC 4-axis Polystyrene Cnc Router with Auto Tool Changer

4 Axis CNC router with ATC system is used for side slot milling, drilling, cutting and keyhole, the 4 axis CNC router is suitable for engraving on different surface. the 4 axis CNC router adopts 9KW HSD automatic tool changer spindle with 8 Position rotary carousel tool holder.

Quantity:
  • ERB1212A 4AXIS
  • Eastrise

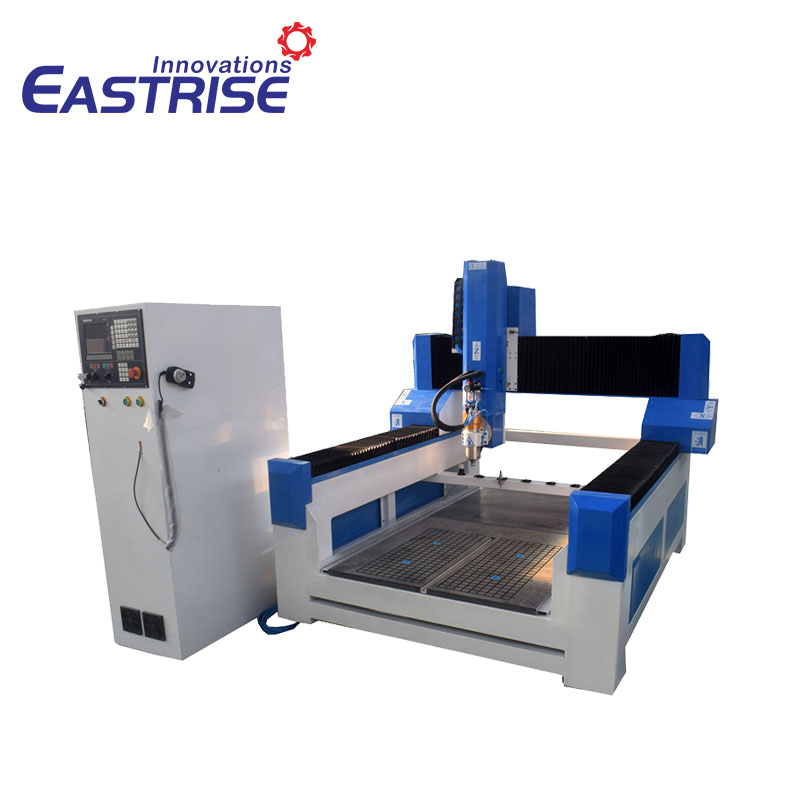

polystyrene mould making machine(1)

Features of ATC 4-axis Polystyrene Cnc Router with Auto Tool Changer

1)  Reliable and durable: all the machine parts have guaranteed quality, for example, Taiwan Syntec control system, HSD air cooling spindle, Taiwan Hiwin linear rails, Becker Vacuum pump, Taiwan Delta inverter and Taiwan TBI ball screw etc, to keep the machine in best condition even after working for many years.

2) Long-time working time with high precision and high efficiency: Welded square tube structure, anti-deformation, strong and relaible; Imported high-precision ball screw; High-performance driven motor; Working with dust hood on all three axis, which can stop dust away from the rails and ball screws, and to keep the machine working for longer time.

3) Humanized and beautiful designing: with attractive color and curvings in cosideration of convenient user operation at the same time.

4) Safe and high efficiency: Double limit protection in avoid of excessive machining; Unique preservation way of the zero point. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.

5) Easy operation and low maintenance cost. Perfect design and top quality accessories to minimize the machine’s failure rate

6) Many optional configuration and OEM service available.polystyrene carving cnc router (2)

Applicable materails

Part of polystyrene foam, plastic, wood materials, PVC, acrylic and other materials.

4 axis cnc router

Features of 2000*4000mm Big Size 2040 4-axis Polystyrene Cnc Router

1. HSD spindle: original famous brand from Italian, you also can choose Hitech spindle.

2. SYNTEC control system: from Taiwan with high performance and competitive price.

3. Yaskawa servo motor and drives: from Japan with high precision and long life.

4. HIWIN linear guide: from Taiwan, it is used for linear reciprocating stadium.

5. Working area: 2000*4000*1200mm, C Rotary Axis: 180 degree.

6. Whole cast steel structure thicken to 20mm.

7. Drive System: X, Y-Rack Z-Ball Screw, Z with high precision ball screw.

8. Automatic Tool Calibration: To guide rail and slide block , make it run better.

9. Schneider electrical components: original brand from France.

10. Japanese Omron Switch with long life.

11. APEX Reudcer from Taiwan: More powerful and higher precision.

Technical parameters

Description

ERB1212A 4AXIS

X,Y,Z working area

1200x1200x800mm(optional)

X,Y,Z Traveling

Positioning accuracy

±0.03/300mm

Lathe-bed frame

Steel square tubes

heavy duty body

X,Y Structure

Rack and pinion

Z Structure

Ball screw

Taiwan linear rails

Drive motors

Servo system

Table surface

T-slot vacuum table

Fixing method

9.0KW air cooling pump

Max rapid travel rate

45000mm/min

Max working speed

20000mm/min

Spindle

9.0Kw Italian HSD

Spindle speed

0-24000RPM

Working voltage

AC380V/50/60Hz

Command language

G Code, *uoo,*mmg, *plt

Flash memory

512M

Operating system

Taiwan Syntec controller

Computer Interface

USB

Collet

ER32

X,Y,Z working accuracy

<0.01mm

Running

environment temperature

0~45 centigrade

Relative humidity

30%-75%

Machining

cnc router (1)

Testing

cnc router (3)

Certificate

cnc router (4)
