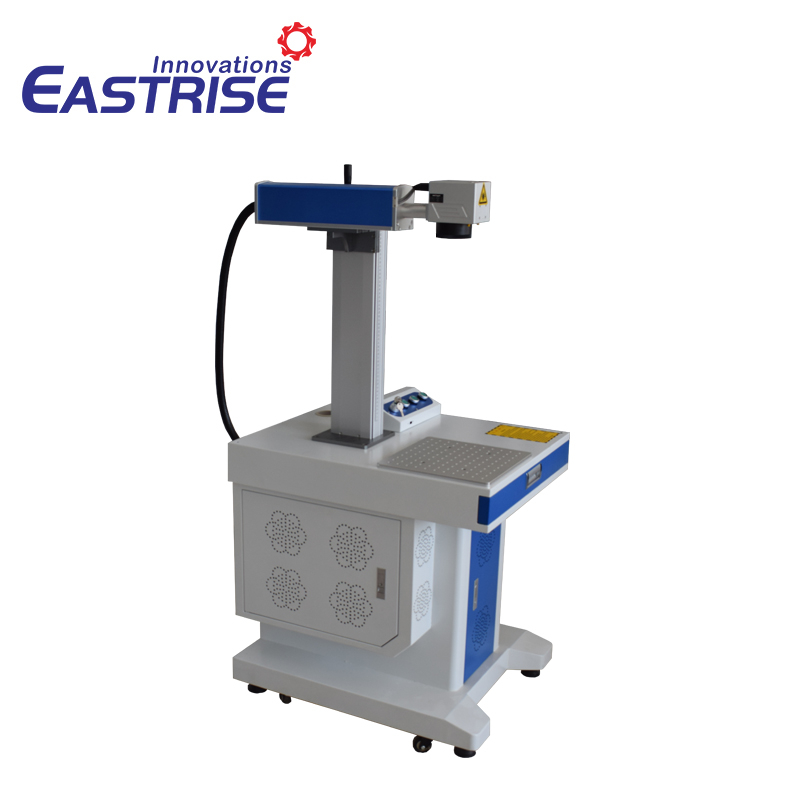

Fiber Laser Marking Machine CE, Discount Laser Marker for Metal, Lazer Marker Price

5 0 Reviews
Fiber laser marking machine is a new generation laser marking system with newest laser technique in the world. It design with fiber laser marker as laser source, and thru high-speed vibration-mirror scan system to actualize marking function. The fiber laser marking machine have high conversion efficiency of electric-light, mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe, communication products images marking etc.
Availability:
Quantity:
  • ERF-C20

  • Eastrise

China fiber laser marker (0)


What is a fibre laser marking machine?

Fibre laser marking machine is a marking machine that uses a fibre laser to produce laser light, which is used to make permanent marks on the surface of a variety of different substances using a laser beam. The marking effect is through the evaporation of the surface material to reveal the deep material, or through the light energy to cause physical changes in the surface material and "carve" traces, or through the light energy to burn off part of the material, showing the required etching of the pattern, text, bar codes and other types of graphics.



Fibre laser marking machine features


Fibre laser marking machine for today's international most advanced laser marking equipment, with good beam quality, small size, speed, long working life, flexible and convenient installation and maintenance-free features.


1, can be a variety of metal, non-metallic materials for processing. Especially for high hardness, high melting point, brittle material marking more advantageous.


2, belongs to the non-contact processing, does not damage the product, no tool wear, marking quality is good.


3, the laser beam is fine, processing material consumption is very small, processing heat-affected zone is small.


4, high processing efficiency, the use of computer control, easy to achieve automation.


China fiber laser marker (7)


Machine configurations:

1.MAX/Raycus/IPG laser source

2.Sino brand galvo head

3.Ronar simith brand F-theta lens

4.EZCAD software and Beijing JCZ mother board

5.50cm ruler scale

6.Spare parts:Foot switch,Button switch

7.External red light indicator

Optional:

8.Two-dimensional worktable

9.Computer

10.Rotary device


What materials can be marked by fibre laser marking machine?

Fibre laser marking machine for hard, brittle, dark-coloured material marking has a big advantage, that is to say, the vast majority of metal materials, as well as some of the materials and other specific non-metallic materials, fibre laser marking machine can be played, so the fibre laser marking machine for metal marking is definitely the first choice.


Application areas of fibre laser marking machine

Widely used in integrated circuit chips, computer parts, industrial bearings, clocks and watches, electronic and communication products, aerospace devices, a variety of automotive parts, home appliances, hardware tools, moulds, wires and cables, food packaging, jewellery, tobacco, as well as military affairs, and other areas of graphic and text marking, as well as large quantities of production line operations.


laser marker

Technical parameters

NO.

Description

Parameter

1

Marking area

110*110mm/200*200mm/300*300mm

2

Laser power

20W/30W/50W/100W

3

Marking speed

≤8000mm/S

4

Max.Marking Depth

≤0.1mm

5

Laser Wavelength

1064nm

6

Marking lines

1-10 marking lines(in the marking area)

7

Minimum line width

0.01mm

8

Minimum character

0.15mm

9

Resolution ratio

0.01mm

10

Repeatability accuracy

±0.002mm

11

Operating temperature

5-40℃

12

Unit Power

≤500W

13

Graphic format supported

BMP,JGP,PNG,DXF, etc.

14

Supply Voltage

220V/1P/50Hz(option:110V)

Workshop

fiber laser marker

Exhibition

laser machine


Certificate

cnc router (4)


Feedback from customer

laser marker feedback
