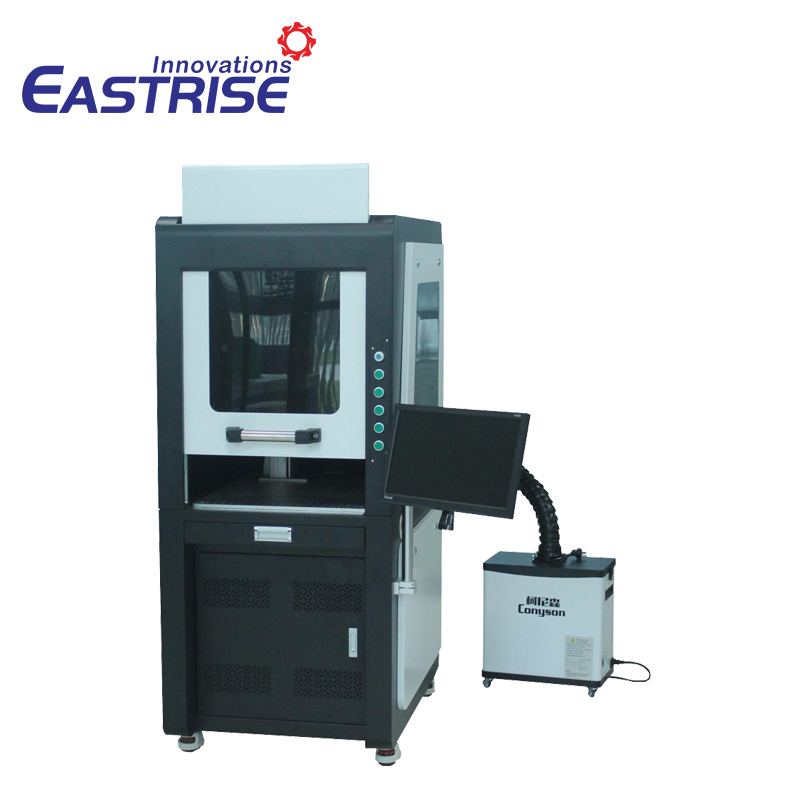

Sealed Laser Marking Machine with Auto-focus, Protective Cover

Fiber laser marking machineis a new generation laser marking system with newest laser technique in the world. It design with fiber laser marker as laser source, and thru high-speed vibration-mirror scan system to actualize marking function. The fiber laser marking machine have high conversion efficiency of electric-light, mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe, communication products images marking etc.

Quantity:
  • ERF-S20
  • Eastrise

China laser marker supplier (1)

Features of Sealed Laser Marking Machine

1. Enclosed Machine structure, safe doors in internal design, to protect safety of works at maximum extent. Highly sealed cabinet but with good cooling effect, can be used in every environment.

2. The machine has no consumption parts. laser generator lifetime span 100000 hours, can work more than 10 years without problem.

The whole system is just as small as a case of the desktop computer in size ,it is the smallest laser marking machine in the present market.

3.Low cost ,saving energy ,the whole power is just only 500w.compared to lamp-pumped and semicondutor laser marking machines ,it can save usnine cost .
4.One modular design ,easy maintenance,compact size.Save your valuable floor space

Machine configurations:

1.MAX/Raycus/IPG laser source

2.Sino brand galvo head

3.Ronar simith brand F-theta lens

4.EZCAD software and Beijing JCZ mother board

5.50cm ruler scale

6.Spare parts:Foot switch,Button switch

7.External red light indicator

Optional:

8.Two-dimensional worktable

9.Computer

10.Rotary device

lazer marker

Application of Sealed Laser Marking Machine

Mobile phone keypads, non-opaque-plastic keypads, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary wares, tool accessories, cutters, watches, glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products, etc

laser marker

Technical parameters

NO.

Description

Parameter

1

Marking area

110*110mm/200*200mm/300*300mm

2

Laser power

20W/30W/50W/100W

3

Marking speed

≤8000mm/S

4

Max.Marking Depth

≤0.1mm

5

Laser Wavelength

1064nm

6

Marking lines

1-10 marking lines(in the marking area)

7

Minimum line width

0.01mm

8

Minimum character

0.15mm

9

Resolution ratio

0.01mm

10

Repeatability accuracy

±0.002mm

11

Operating temperature

5-40℃

12

Unit Power

≤500W

13

Graphic format supported

BMP,JGP,PNG,DXF, etc.

14

Supply Voltage

220V/1P/50Hz(option:110V)

Workshop

fiber laser marker

Exhibition

laser machine


Certificate

cnc router (4)


Feedback from customer

laser marker feedback
