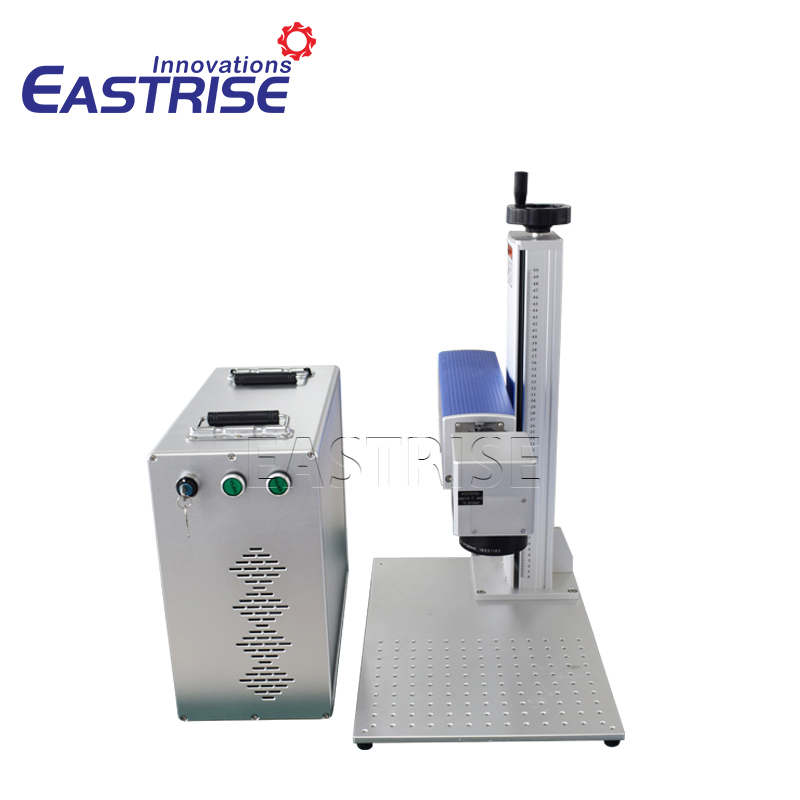

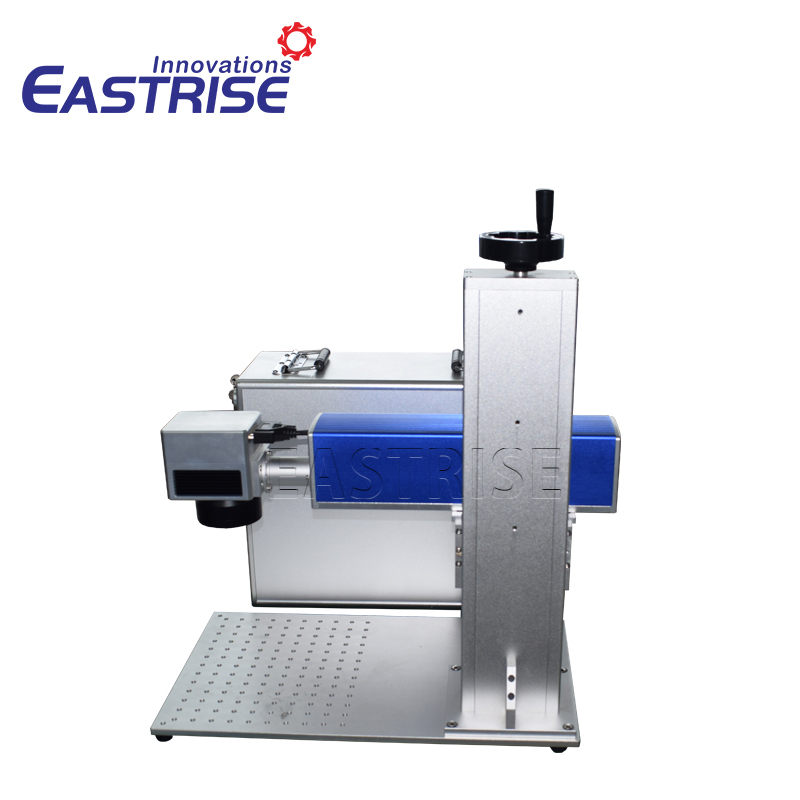

Features of Mini Desktop Fiber Laser Marking Machine
1. The entire system is as small as a desktop computer and is the smallest laser marking machine on the market today.
2. Low cost, energy saving, the total power is only 500w. Compared to lamp pumps and laser diode marking machines, the cost of use can be saved.
3. The module has a unique design, convenient maintenance and small size. Save valuable space
Machine configurations:
1.MAX/Raycus/IPG laser source
2.Sino brand galvo head
3.Ronar simith brand F-theta lens
4.EZCAD software and Beijing JCZ mother board
5.50cm ruler scale
6.Spare parts:Foot switch,Button switch
7.External red light indicator
Optional:
8.Two-dimensional worktable
9.Computer
10.Rotary device
Application of Mini Desktop Fiber Laser Marking Machine
Mobile phone keypads, non-opaque-plastic keypads, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary wares, tool accessories, cutters, watches, glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products, etc
Technical parameters
NO. | Description | Parameter |
1 | Marking area | 110*110mm/200*200mm/300*300mm |
2 | Laser power | 20W/30W/50W/100W |
3 | Marking speed | ≤8000mm/S |
4 | Max.Marking Depth | ≤0.1mm |
5 | Laser Wavelength | 1064nm |
6 | Marking lines | 1-10 marking lines(in the marking area) |
7 | Minimum line width | 0.01mm |
8 | Minimum character | 0.15mm |
9 | Resolution ratio | 0.01mm |
10 | Repeatability accuracy | ±0.002mm |
11 | Operating temperature | 5-40℃ |
12 | Unit Power | ≤500W |
13 | Graphic format supported | BMP,JGP,PNG,DXF, etc. |
14 | Supply Voltage | 220V/1P/50Hz(option:110V) |
