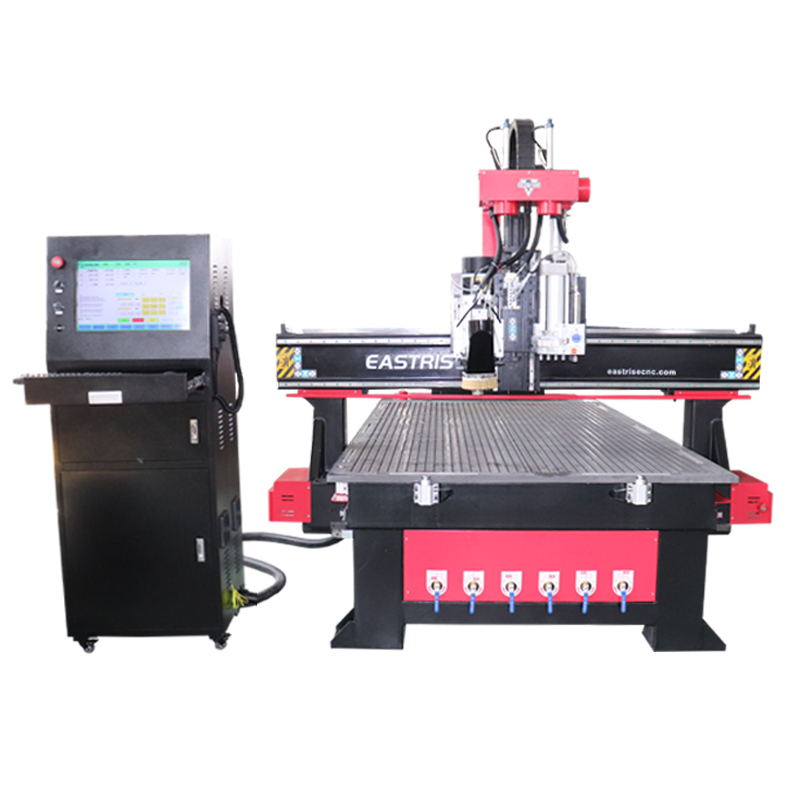

1325 ATC linear tool change Cnc Router with Boring Head

5 0 Reviews
This machine is our latest Auto tools changer CNC Router Machine for wood industry .Machine equipped with 12 stations Linear Tools changer tools which could change cutting tools with the fastest speed .
ATC CNC Router Machine makes the complicated woodworking work which need to use different shape cutters much easier because it could change 12 stations different size tools automatically.
It is usually used for wood door furniture processing including cutting, carving, drilling, edge milling and relief engraving.

Availability:
Quantity:
  • ERM1325LB-ATC
  • Eastrise

1325 ATC linear tool changer Cnc Router with Boring Head

4

Linear ATC Cnc Router Application

Furniture production: suitable for making all kinds of furniture like wardrobe,cupboard,cabinet door,solid wood furniture, cabinet body,room door, panel wood furniture

Decoration making:photo frame, relief, wave board, wood mould,large wall hanging, advertising boards, sign making.
ATC cnc router

Advantages of ATC furniture CNC router

1)T-slot vacuum table with great vacuum power,which can absorb materials on different areas or hold materials by clamps easily.
2)Controller is easy for freshman to learn. Operation is easy and humanized.
3)ATC spindles, which can change 12 different tools automatically. And boring head is professional for dilling holes.This type machine is new designed economic atc furniture cnc router, save working time cost and investment for you and brings you with high efficiency.

4)Boring head specializes in drilling different -size holes with high effciency,can save a lot of time.

IMG_3822

9kw HQD automatic tool changer air cooling spindle 24000RPM rotation speed,low vibration,low noise,high
cutting force and high precision.

IMG_3816

The tool maganize can be equipped with multiple tools to process complex process products and improve
production efficiency.

IMG_3825

Drilling/Boring bits: 5+4 vertical boring bits, fast working speed, high precision

IMG_3830

Shanlong machine control system:
CNC system of well-known brands at home and abroad, fast data processing, stable operation, convenient
operation, simple and fast, easy to learn and use, powerful, ensnring the processing precision and running
speed of the equipment. Safety visibility.

IMG_3844

Electronic components
Anti-interfcrence, dust-proof and operation for a long time.

IMG_3836

Automatical oil system
Very convenient, can prolong the machine's service life and keep good accuracy.

Configurations of Auto Tool Changer CNC Router

1.Working area:1300*2500*200mm

2.9KW HQD air cooling spindle

3.Weihong/Syntec/Shanlong control system

5.Oil Lubrication

6.Taiwan HINWIN/PMI linear guide rail

7.High-precision helical rack gear

8.T slot vacuum table

9.Servo motors and drivers

10.Fuling/Best inverter

11.7.5KW vacuum pump

12.5.5KW dust collector

PS : We can customize different size and different configurations for you.

Technical parameters

Model

                       ERM1325LB-ATC

Working size

1300*2500mm

Max feeding height

200mm(Customized)

Max traveling speed

40mm/min

Tool diameter

¢3.175、¢4 、¢6、¢8、¢12.7

Transmission

X.Y: rack and pinion, Z axis : ball screw

Software environment

WindowsXP/7/8/10

Spindle power

9KW

Power without spindle

2KW

Voltage

220V/380V

Recognizing language

G code(nc)、mmg、plt、eng、dxf

Spindle speed

6000-24000rpm/min

Control system

Weihong/Syntec/Shanlong

Machining

cnc router (1)

Testing

cnc router (3)

Certificate

cnc router (4)

Feedback from customer

cnc router feedback
