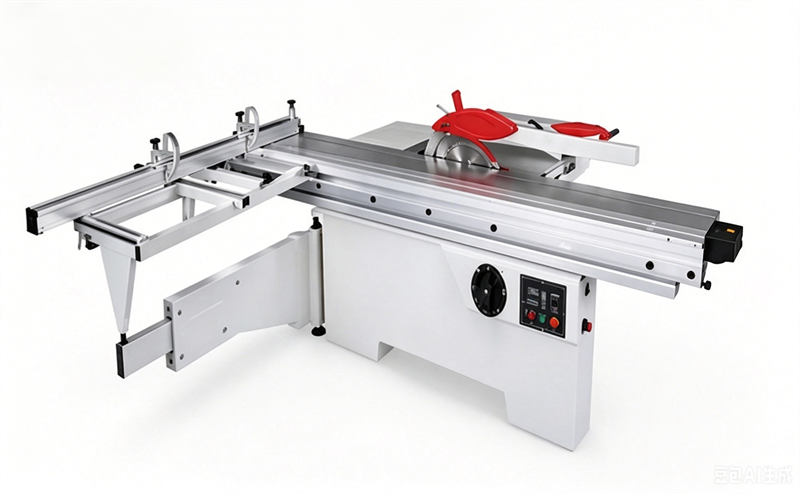

Sliding Table Saw

5 0 Reviews
This sliding table saw is professional woodworking cutting machine for furniture manufacturing. Equipped with main blade and scoring blade, it achieves clean cutting on MDF, plywood, solid wood and particle boards. Ergonomic operation, heavy‑duty frame, ideal for professional woodworking workshops.
Availability:
Quantity:


This sliding table saw is heavy‑duty woodworking panel saw designed for professional furniture production. It is fitted with main saw blade and scoring blade, which can realize clean cutting without board chipping.

The smooth sliding table ensures accurate feeding and precise cutting result. Robust machine structure supports long‑time continuous work. Intuitive control panel is easy for operators. The saw blade can tilt from 0°‑45° for bevel cutting. Widely used for cutting all kinds of wood‑based panels and solid wood.

Main Features

✅ Precise cutting performance for every workpiece

✅ Heavy‑duty robust structure for long‑time continuous operation

✅ High‑performance main blade plus scoring blade for chip‑free cutting

✅ Smooth sliding table for accurate movement

✅ Adjustable rip fence for precise dimension adjustment

✅ Intuitive control panel, user‑friendly operation

✅ Blade tilting 0‑45° for bevel cutting

Application

Ideal for woodworking, furniture manufacturing, panel cutting and professional woodworking workshops. Suitable for furniture manufacturing, woodworking projects and various wood‑based materials.

Technical Specifications

Product Name

Sliding Table Saw

Max. cutting length

3120 mm

Sliding table width

430 mm

Main motor power

7.5 HP

Scoring motor power

1 HP

Main blade speed

4000‑5000 RPM

Scoring blade speed

8500 RPM

Main blade diameter

300 mm (350 mm optional)

Scoring blade diameter

120 mm

Blade tilt angle

0°‑45°

Max. rip fence cutting width

1250 mm

Max. cutting height

80 mm (100 mm optional)

Machine weight

1000 kg
