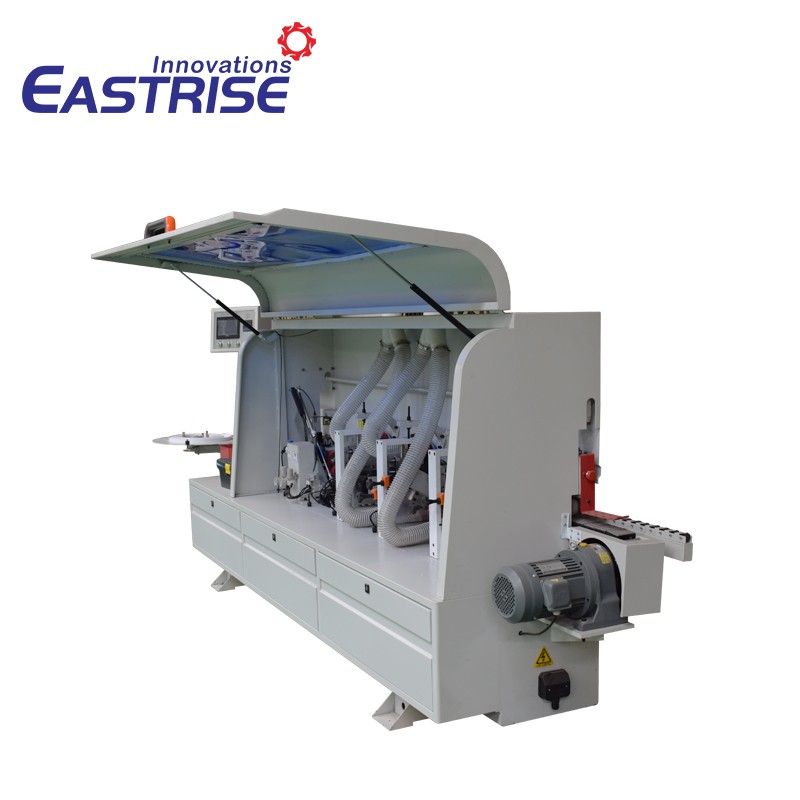

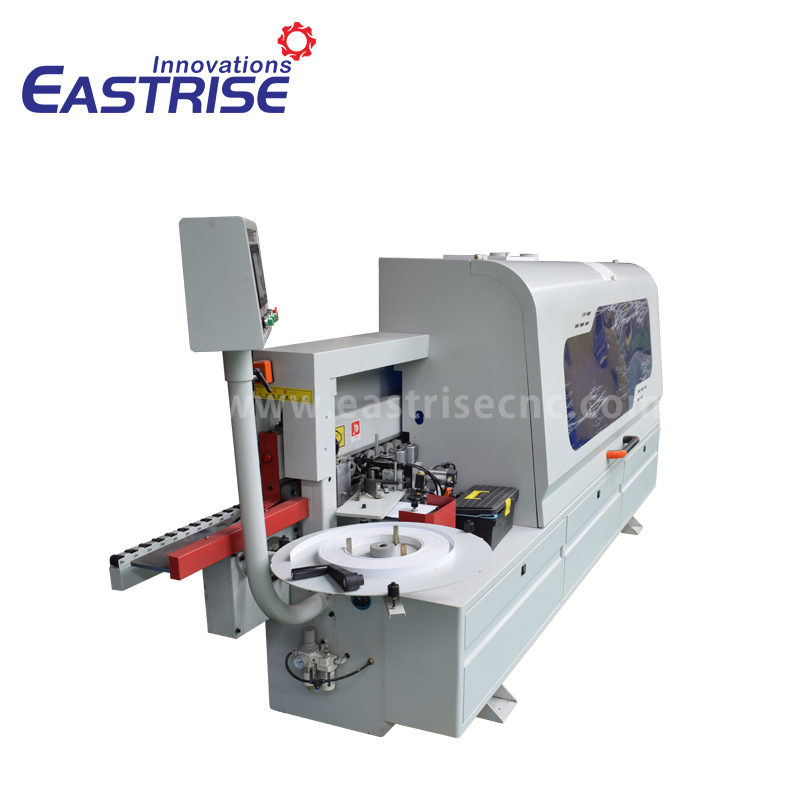

Auto Edge Banding Machine

5 0 Reviews

This machine is mainly used plywood, fiberboard, and Dimensional cross-section of particle board straight structure Edge. It is compact structure, reasonable layout and aesthetic appearance; Usage of sound insulation, Dust collection port, anti-overload devices; It has edge banding, the upper and lower trimmer, surface polishing work unit; It is a new, multi-functional, straight edge banding machine, which is very popular in woodworking furniture factory of all ages

Availability:

Quantity:



Inquire Add to Basket

Model:
ER-515B
Brand:
Eastrise

Product Description

Auto Edge Banding Machine

Function of Auto Edge Banding Machine

1. Glue press --- End of cut --- Fine cut --- Scraping --- Polishing

2. Panel heating --- Automatic glue --- Automatic feeding --- Automatic strip sending --- Automatic pressure

3. Automatic cutting precision from top to bottom

4. Automatic blowing from top to bottom

edge banding machine

Application of Auto Edge Banding Machine

1.The machine is suitable for linear sealing of the side surfaces of the artifacts of solid board, fiberboard, particle board, etc. The material of edgebanding products is artistically available from solid wood, PVC, melamine, thin veneer, etc.

2. Adopt the imported motor and high quality electric components.

3. Serialization of the product. Customer diversification of choice.

4. High precision and high efficiency.

edge banding machine

Technical parameters

Edge thickness	0.4-3mm
Edge height	13-60mm
Workpiece thickness	10-60mm
Workpiece width	≥60mm
Workpiece length	≥100mm
Feed speed	13-25m/min
Air Press	0.6-0.7Mpa
Total Power	4-17kw
Overall Size	3600x1000x1600mm
