| Quantity: | |
|---|---|
TM2480A-2
Eastrise

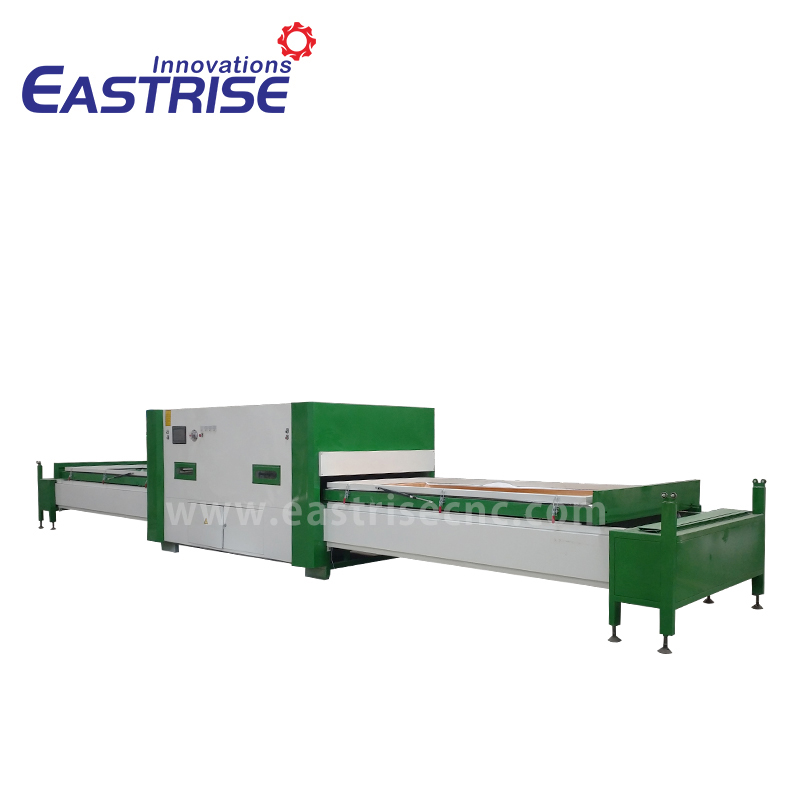

Function of Automatic Top And Bottom Vacuum Membrane Press Machine
The operation is easy and efficient. It is suitable for covering PVC film on the surfaces of all kinds plate type furniture, sound boxes and ornamental materials etc. Using the special hot-press gum. Particularly it is used to covering on concave and convex line and various shape adge surface. It has advantage of anti-fire, waterproof, acid-proof, alkali-proof, especially for indoors decoration, no pollution, no peculiar, no peculiar smell, quick installment and beautiful appearance. It is the ideal equipment in interior design.
Application of Automatic Top And Bottom Vacuum Membrane Press Machine
Paste PVC on furnture, cabinets, relief doors, decoration panels for walls and other abnormal decoration shapes (wood skin is also acceptable, thermal transfer)
Technical parameters
working size: | 2500*1300mm |
Maximum board thickness: | 60mm(including the bottom plate) |
Total power: | 25KW |
Rating working pressure: | positive pressure≤0.095Mpa |
Actual power consumption: | 12kw |
Heating system : | Aluminum plate,stainless heating tube |
Vacuum pump: | China brand vacuum pum |
Weight : | 2500kg |
Outline size: | 9470*6170*1500*1400mm |
Controller system: | PLC |
Voltage: | 380v 50/60HZ |
Machining
Testing
Exhibition
Certificate
Function of Automatic Top And Bottom Vacuum Membrane Press Machine
The operation is easy and efficient. It is suitable for covering PVC film on the surfaces of all kinds plate type furniture, sound boxes and ornamental materials etc. Using the special hot-press gum. Particularly it is used to covering on concave and convex line and various shape adge surface. It has advantage of anti-fire, waterproof, acid-proof, alkali-proof, especially for indoors decoration, no pollution, no peculiar, no peculiar smell, quick installment and beautiful appearance. It is the ideal equipment in interior design.
Application of Automatic Top And Bottom Vacuum Membrane Press Machine
Paste PVC on furnture, cabinets, relief doors, decoration panels for walls and other abnormal decoration shapes (wood skin is also acceptable, thermal transfer)
Technical parameters
working size: | 2500*1300mm |
Maximum board thickness: | 60mm(including the bottom plate) |
Total power: | 25KW |
Rating working pressure: | positive pressure≤0.095Mpa |
Actual power consumption: | 12kw |
Heating system : | Aluminum plate,stainless heating tube |
Vacuum pump: | China brand vacuum pum |
Weight : | 2500kg |
Outline size: | 9470*6170*1500*1400mm |
Controller system: | PLC |
Voltage: | 380v 50/60HZ |
