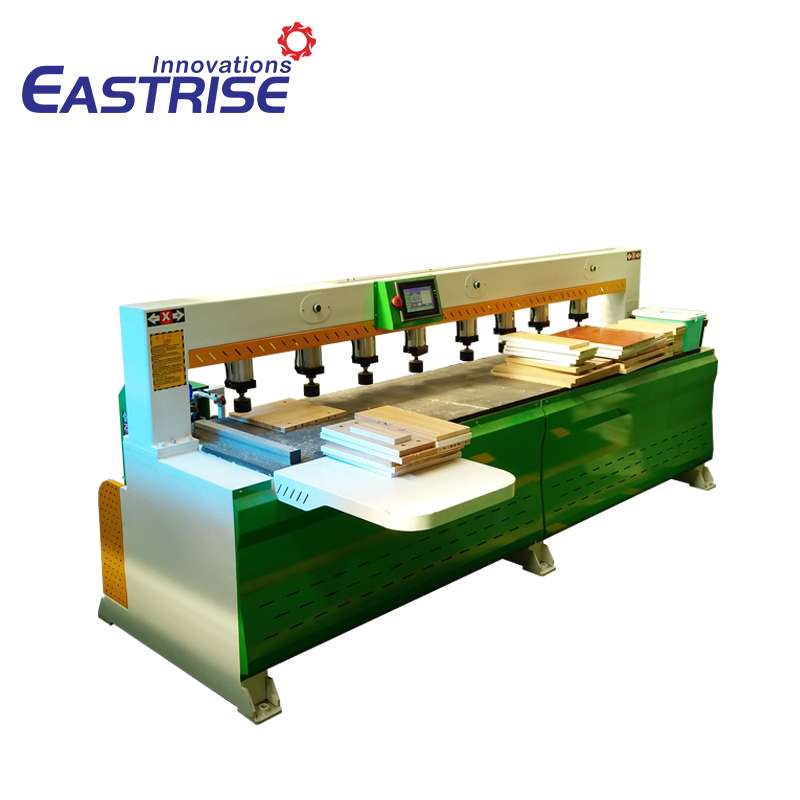

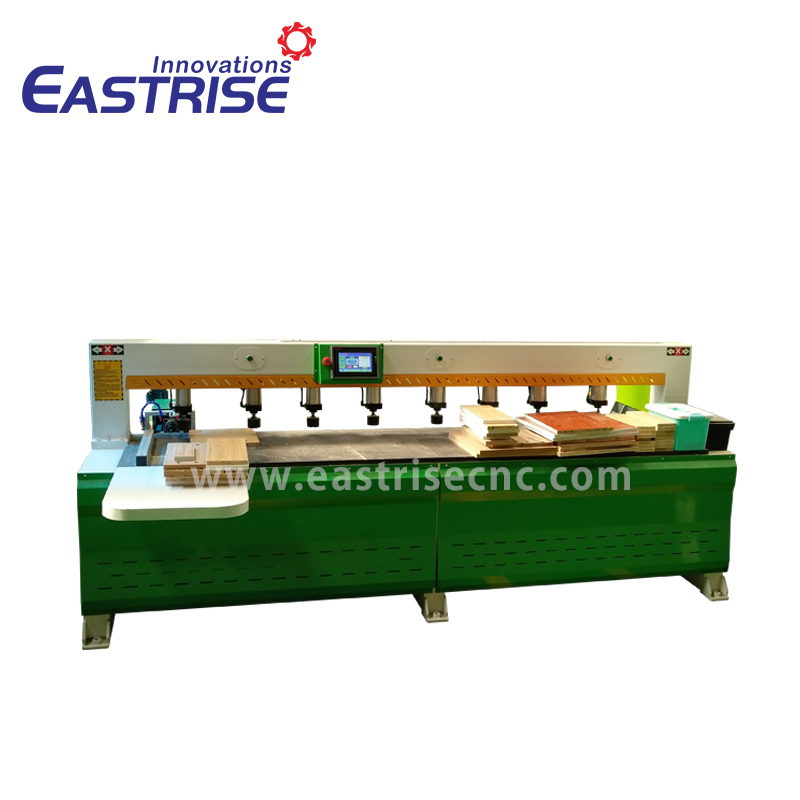

Advantage of Cnc Side Hole Drilling Machine
Save time, save human labour , high efficiency , the tolerance of the hole is very small .
1.The drilling covers a large scope,and all the bits can be installed quickly and conveniently;
2.The drilling depth and distance are controlled photoelectric switch(optional)and linear guide, so it can find out the location quickly and accurately;
3.The adoption of imported drillers improves durability
4.Selection of high quality steel machine parts,and it is never performed by high-strength heat treatment;
5.Equipped with digital calculator to measure size which enhances the work efficiency.
6.High quality infrared sensor,with high sensitivity,to ensure accurate positioning.
Feature of Cnc Side Hole Drilling Machine
1.Quickly and accurately,can drill multi kinds of hole and there is no limit to the board width
2.Specially developed for horizontal perforater plate custom furniture
3.Drive motor adopts servo motor equipped with reducer easily ensure machine run fast and smooth
4.Control system adopts the domestic high quality touch screen, operation.
Application of Cnc Side Hole Drilling Machine
Panel furniture ,cabinet& closet furniture , office furniture , customized furniture , etc the all kinds of holes processing
Technical parameters
1.Working Range | 1000*2500*60MM |
2.Spindle Motor Power | 2.2kw |
3.Spindle Mode | Air cooling spindle |
4.Spindle Speed | 12000rpm/min |
5.Y Axis moving speed | 60m/min |
6.Drill Quantity | 1 |
7.Drill bit diameter | 10MM |
8.Working voltage | AC380V/50HZ |
9.Weight | 730KG |
10.Total Power | 3.5KW |

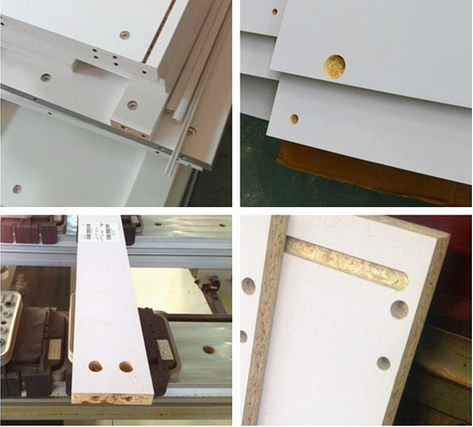

Machining

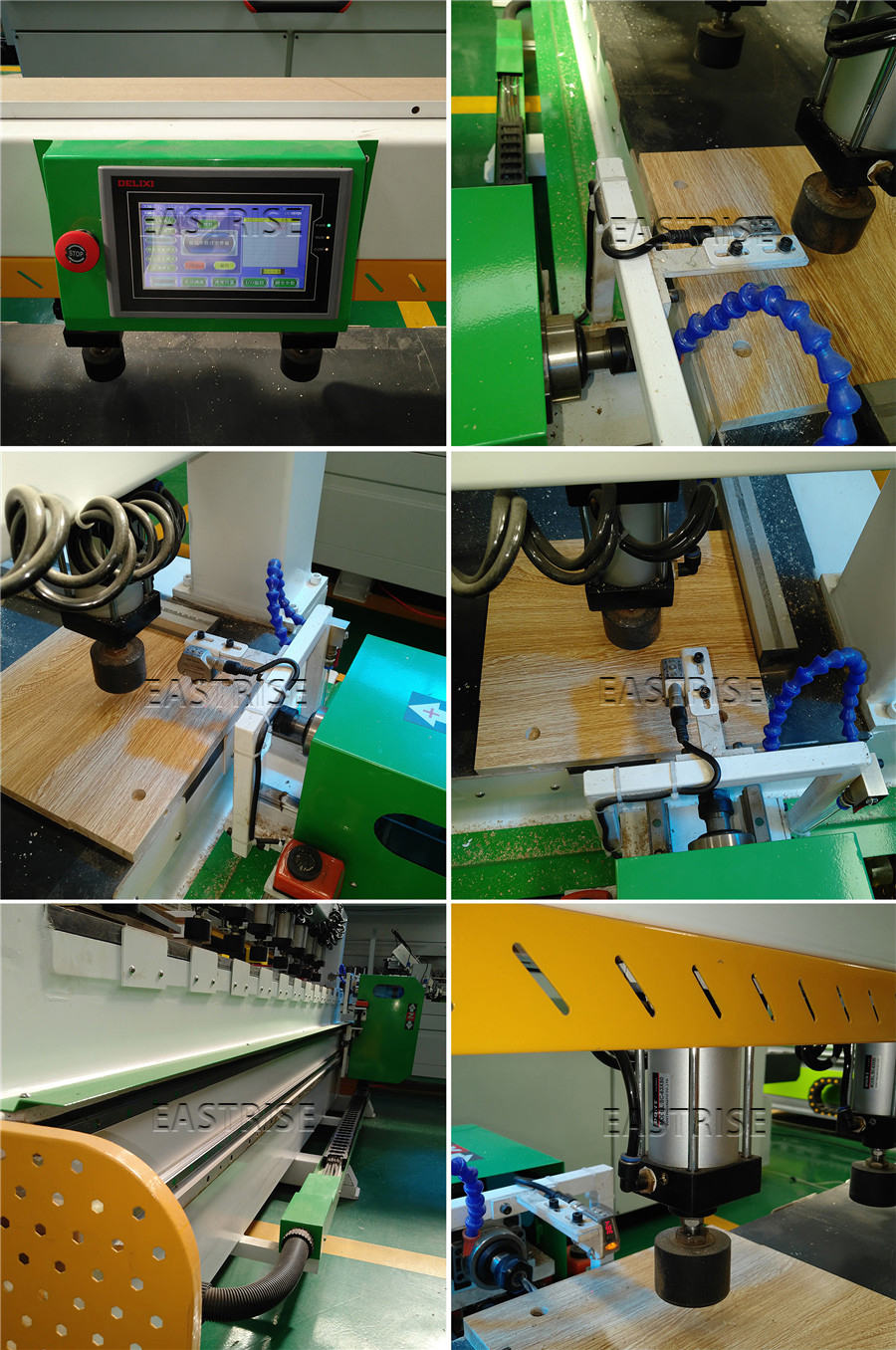

Testing
Exhibition
Certificate
