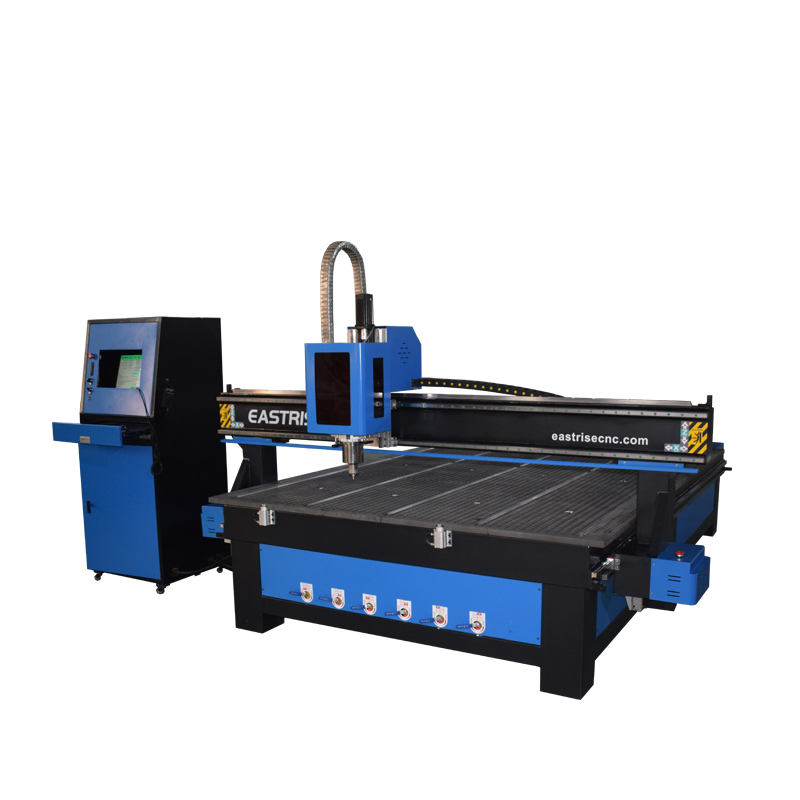

ERM2130 L ATC
Eastrise
Application of Auto Tool Changer Cnc Router
Furniture:suitable for processing cabinet doors,wooden doors,solid wood furniture,wooden furniture,windows,tables and chairs, etc.
Decoration industry:screens,wave boards,large walls,billboards,signs.
Process industry:solid wood,MDF,artificial stone,bamboo, marble,organic board,double-color board etc.
Advantage of ATC Cnc Router Table
1.HQD or WHD brand 9kw auto tool changer spindle.
2.We use Chinese Shanlong,Taiwan LNC or Taiwan Syntec controller.All of them are famous brands,stable and easy to operate.
3.Linear tool magazine with tool holder*8~12pcs,which can carry different bits for drilling,carving,cutting,grooving...
4. Automatic Oil lubrication system
5.Oil tank for collecting leakage oil from block
Technical parameters
Model | ERM2130L ATC |
Working size | 2100*3000mm |
Max feeding height | 200mm(Customized) |
Max traveling speed | 40mm/min |
Tool diameter | ￠3.175、￠4 、￠6、￠8、￠12.7 |
Transmission | X.Y: rack and pinion, Z axis : ball screw |
Software environment | WindowsXP/7/8/10 |
Spindle power | 9KW |
Power without spindle | 7KW |
Voltage | 380V/220V |
Recognizing language | G code（nc）、mmg、plt、eng、dxf |
Spindle speed | 6000-24000rpm/min |
Control system | Weihong/Syntec |
