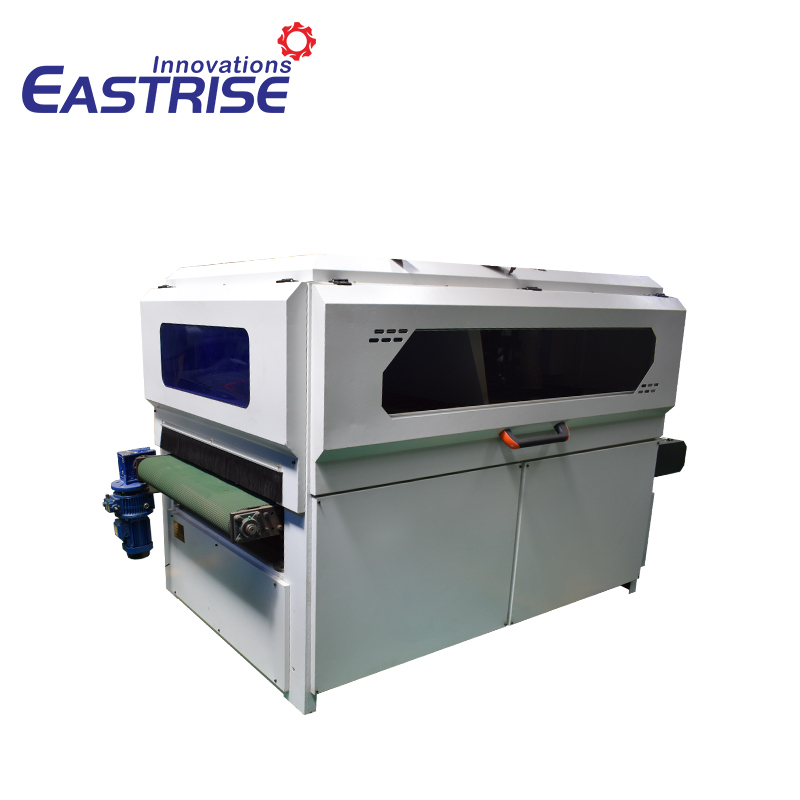

Advantage of Wood Polish Sander
1).The machine suits for sanding of kitchen Cabinet, Window, Door, Furniture…etc.
2)The modular structure can be combined optional to satisfy clients' demands.
3).Frequency conversion speed control is used in each group
4)The height of the worktable can be adjusted.
5)Each unit can be drawn out for sand sand shelf, or replace emery cloth sanding can parts more portable, easy operation and maintenance.
Technical Wood Polish Sander
Model | ERB-1300 |
Max working width | 1300mm |

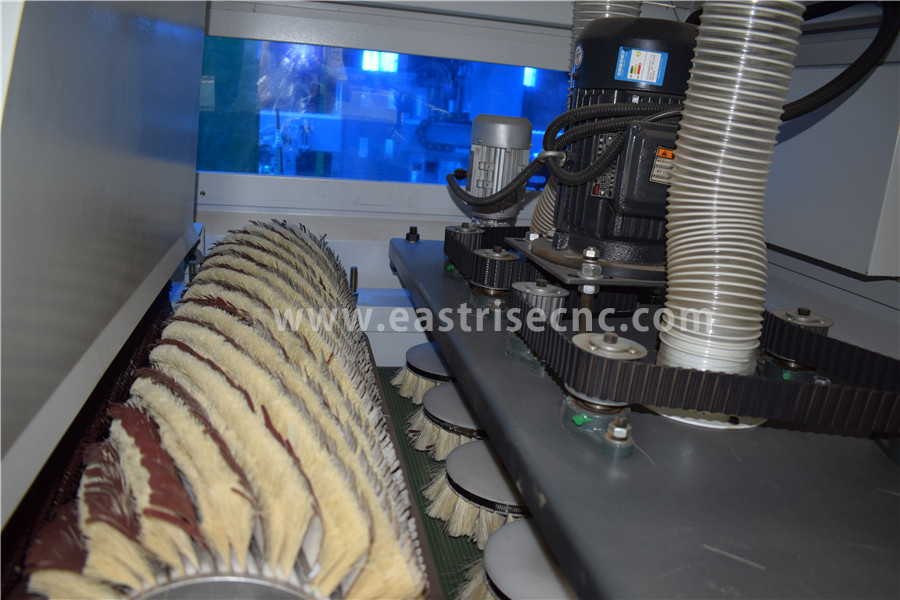

Polishing roll brushes | 2 piece |
Disk tray brushes | 9piece |
min working length | 500mm |
working thickness | 3-110mm |
feeding speed | 6-30m/min |
Speed | 50-60m/min ,with inverter can be adjusted |
Inverter | 5.5KW+1.5kw |
Driver motor | 1 pic roller with one pic 2.2KW motor |
Reducer motor | 1.5kw |
Table lift&down | By button adjust,driving by motor 0.37KW |
Total power | 11kw |
Belt size | 1130*1800mm |
Air pressure | 0.6mpa |
Net weight | 1600kg |
Voltage | 380V,3P.60hz |
