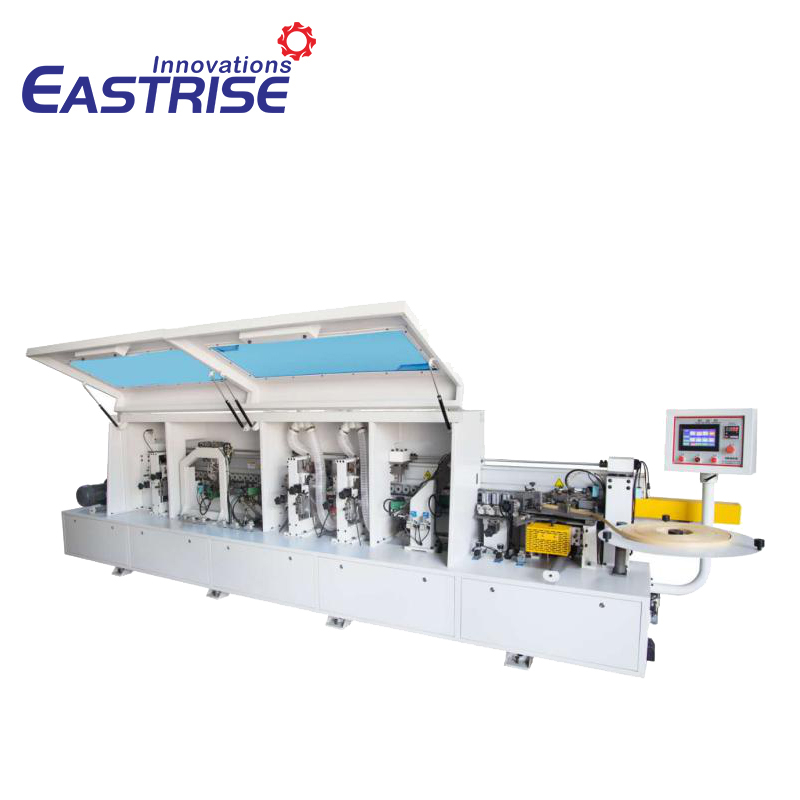

Auto Edge Banding Machine with Contour Tracking

This machine is mainly used plywood, fiberboard, and Dimensional cross-section of particle board straight structure Edge. It is compact structure, reasonable layout and aesthetic appearance; Usage of sound insulation, Dust collection port, anti-overload devices; It has edge banding, the upper and lower trimmer, surface polishing work unit; It is a new, multi-functional, straight edge banding machine, which is very popular in woodworking furniture factory of all ages

Quantity:
  • ER-468
  • Eastrise

Auto Edge Banding Machine

Function of Auto Edge Banding Machine

1. Gluing Press---End Cutting---Fine Trimming---Contour Tracking---Scraping---Buffing
2. Board preheat---Automatic glue---Automatic feeding---Automatic send belt---Automatic pressure
3. Automatic precision trimming up and down
4. Automatic blowing up and down side

edge banding machine with Contour Tracking

Application of Auto Edge Banding Machine

1.The machine is suitable for linear sealing side of plank artifacts of solid board,fiberboard,particleboard,ect...Edge banding material artical available solid wood,PVC,melamin,thin veneer and so on.
2. Adopt imported motor and high quality electrical compents.
3. Product serialization.diversification of the customer to choose.
4.High precision and high efficiency.

edge banding machine

Technical parameters

Edge thickness

0.4-3mm

Edge height

13-60mm

Workpiece thickness

10-60mm

Workpiece width

60mm

Workpiece length

100mm

Feed speed

13-25m/min

Air Press

0.6-0.7Mpa

Total Power

4-17kw

Overall Size

3600x1000x1600mm
